Pulsar AS 150 - Fitment of Front & Rear Seat

Fitment of Front & Rear Seat
Fitment of ‘Front Seat’
• Match the lugs of ‘Front seat’ (A) with
chassis bracket (B).
• Push ‘Front seat’ toward petrol tank.
• Match ‘Front seat’ rear brackets (C) with
the holes provided on chassis.
• Tighten the bolts (D).
Fitment of ‘Rear Seat’
• First make sure ‘Front seat’ is fitted
properly.
• Place ‘Rear seat’ in fitment location.
• Insert bracket (E) of seat into hook (F).
• Match the rod of ‘Front seat’ (G) with seat
lock (H).
• Press front portion of seat.

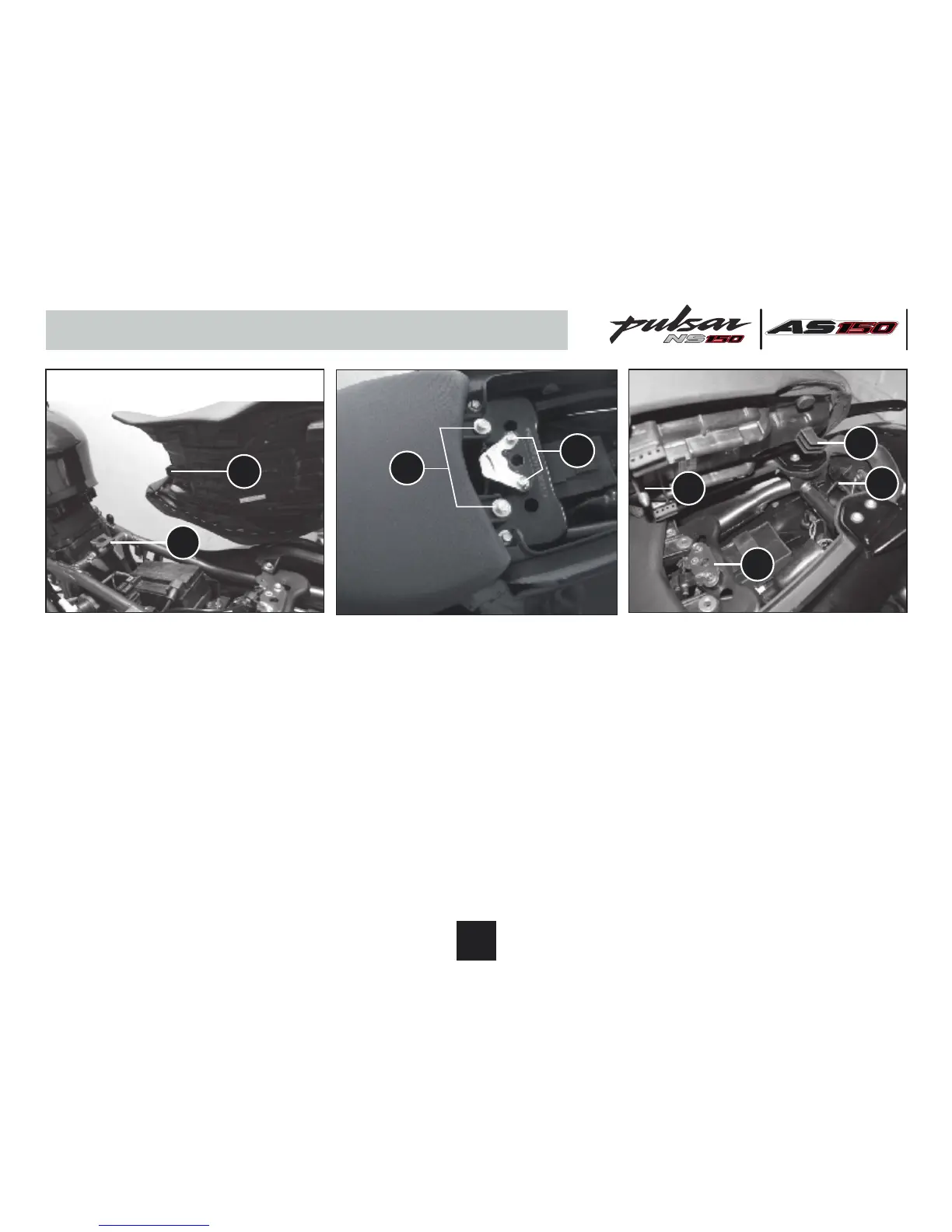

Front seat lug & bracket
B
A
E
F
G
H
C
D
