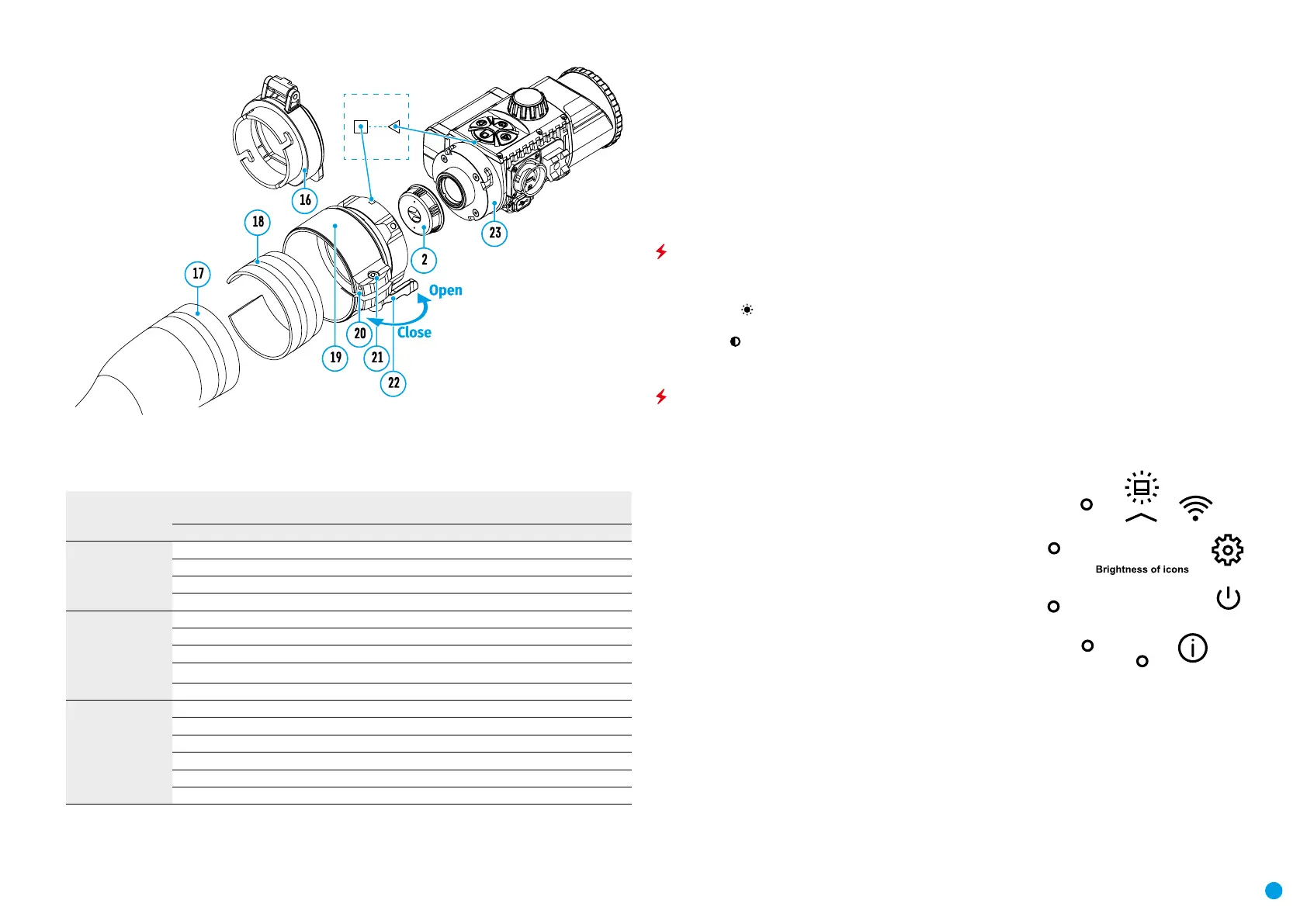

Selection table for day sight inserts
Cover-adapter
model
Correspondence of the inner diameter of the line and the outer diameter of the lens
body of the daylight optical device (sight, telescope)
Insert internal diameter (mm) Outer diameter of sight lens (mm)
Cover adapter
FN 42mm
47 46.7-47.6
48 47.7-48.6
49 48.7-49.6
50 49.7-50.6
Cover adapter
FN 50mm
55 54.7-55.6
56 55.7-56.6
57 56.7-57.6
58 57.7-58.6
59 58.7-59.6
Cover adapter
FN 56 mm
60 59.7-60.6
61 60.7-61.6
62 61.7-62.6
63 62.7-63.6
64 63.7-64.6
65 64.7-65.6
Powering on and image setup
•
Remove the lens cap (1) by turning it anticlockwise.
•
Turn on the attachment with a short press of the ON button (9). An image will appear on the display.
•
Adjust the resolution of the icons on the display by rotating the dioptre adjustment ring on the sight of your
optical sight. In future, it will not be necessary to rotate the eyepiece dioptre adjustment ring, regardless of
distance and other conditions.
•
Rotate the lens focus ring (10) to focus on the object being observed.
Basic settings (brightness and contrast adjustment) can be altered by using the quick access menu.
Power the attachment off after use with a long press of the ON button (9).
Quick Access Menu Functions
•
Enter the ‘quick’ menu with a short press of the M button (7).
•
A short press of the M button (7) enables you to switch between functions, as described below.
•
Brightness – by pressing the RIGHT (6) and LEFT (8) buttons and changing the display brightness value
from 0 to 20.
•
Contrast – by pressing the RIGHT (6) and LEFT (8) buttons and changing the display contrast value from 0
to 20.
Main Menu Functions
•
Enter the main menu with a long press of the controller button (7).
•
Press the RIGHT (6) and LEFT (8) buttons to toggle through the main menu functions.
•
Open sub-items in the main menu with one short press of button M (7).
•
To exit a sub-item in the main menu, press and hold down on button
M (7).
•
Automatic exit from the main menu occurs after 10 seconds of
inactivity.
General view of the menu:
•
Brightness of icons
•
Wi-Fi Settings
•
General Settings
•
Automatic power-off
•
Device Information
