This document is the Operator's Manual for the Pulsar PG7500 portable generator.

Function Description

The Pulsar PG7500 is an engine-driven, revolving field, alternating current (AC) portable generator. Its primary function is to supply electrical power for various applications, including operating tools, appliances, camping equipment, lighting, or serving as a backup power source during power outages. It is designed for both personal residential household use or recreational use, as well as commercial purposes, though specific warranty terms apply to commercial use.

Important Technical Specifications

Model: PG7500
Rated Wattage: 6000W (6.0kW)
Maximum Output: 7.5kVA
Rated Voltage: 120/240V
Rated Frequency: 60Hz
Rated Ampere: 50A/25A
Engine: 420cc OHV, 4-stroke, air-cooled
Engine Oil: 10W30 - 38oz (1.1L)
Fuel Tank Capacity: 6.6 Gallons (25L)
Fuel Type: Unleaded Gasoline
Emissions Control: Compliant with all standards set by the Environmental Protection Agency.
AC Output Receptacles:
- Four 120 Volt AC, 20 Amp receptacles (protected by a 20 Amp push-to-reset circuit breaker). Each socket is rated for up to 2400 watts (2.4 kW).
- One 120 Volt AC, 30 Amp twist lock receptacle (NEMA L5-30) (protected by a 30 Amp push-to-reset circuit breaker). Rated for up to 3600 watts (3.6 kW).
- One 120V/240V AC, 30 Amp twist lock receptacle (NEMA L14-30) (protected by a 30 Amp push-to-reset circuit breaker). Rated for up to 7200 watts (7.2 kW).
DC Output: 12 Volt 8.3 Amp (for charging batteries only).
Grounding: Features a ground terminal on the front panel for connection to a driven ground rod using a No. 8 AWG copper wire.

Usage Features

Starting System: Equipped with both electric push start and recoil (manual) starter.
Fuel Valve: ON/OFF position for fuel control.
Choke Lever: Used during engine start-up, gradually moved from "Choke" to "Run" position as the engine warms.
Engine ON/OFF Switch: Controls the engine's power state.
Oil Alert Lamp: Indicates low oil level, preventing engine damage.
Hour Meter: A digital display that tracks engine running hours, indicating when maintenance (e.g., "LUBE" at 25 and every 100 hours) is due.
Circuit Protectors: Push-to-reset circuit breakers protect AC receptacles from overload.
Ground Fault Circuit Interrupter (GFCI): Receptacles are GFCI-protected to prevent electrocution from moisture or faulty electrical devices. A TEST/RESET button is provided for verification.
Portability: Features handles and no-flat tires for easy transport. Support feet provide stability during operation.
Battery Charging: The 12V DC output can be used to charge a 12-volt automotive or storage battery.
Power Management: Recommends starting the engine without loads, allowing it to stabilize, then connecting devices from largest to smallest output to prevent overloading.
Cold Weather Operation: Guidelines include using fresh fuel, synthetic 5W-30 or SAE 5W-30 engine oil, keeping the fuel valve open, and sheltering the unit.
Safety Features:
- Warnings against indoor operation due to carbon monoxide risk.
- Instructions to avoid operating near flammable objects or ignition sources.
- Caution against hot surfaces (muffler, cylinder).
- Warnings about high voltage and electrocution risk, emphasizing proper grounding and dry operating conditions.
- Instructions to disconnect electrical devices before starting or stopping the engine.
- Warnings about moving parts and recoil starter hazards.
- Prop 65 warning regarding chemicals in engine exhaust and battery components.

Maintenance Features

Maintenance Schedule: A detailed schedule outlines routine tasks based on operating hours (After First 5 Hours, After 8 Hours or Daily, Annually (25 hr Use), Annually (100 hr Use)).
Oil Change: Recommended after the first 5 hours, then annually (or more often in dirty conditions). Involves draining old oil and adding SAE 10W-30 4-Cycle engine oil. An oil viscosity chart is provided for different outdoor temperatures.
Oil Level Check: Daily or after every 8 hours of use, using the dipstick.
Air Filter Maintenance: Check and clean annually (or more often in dirty/dusty conditions). Involves removing dirt by tapping or blowing out; replacement is recommended annually.
Spark Plug Maintenance: Service annually (100 hr Use). Involves cleaning carbon deposits, checking and adjusting the electrode gap (0.762 - 0.80 mm), and replacing with an equivalent part (e.g., NGK BP6ES, Champion N9YC) if worn.
Fuel System Maintenance:
- Fuel Valve Service: Annually (100 hr Use).
- Fuel Filter Replacement: As needed if clogged. Requires emptying the fuel tank.
- Draining Fuel Tank and Carburetor: Recommended for long-term storage to prevent gum deposits.
Muffler and Spark Arrestor: Check and clean annually (25 hr Use). The spark arrestor should be inspected for breaks or holes and cleaned of carbon deposits.
Cooling System: Clean annually (100 hr Use). Servicing by an authorized dealer is recommended.
Carburetor Adjustment: Non-adjustable idle mixture valve; adjustments should be performed by an authorized dealer.
Battery Maintenance: Regular charging for the electric starter. Disconnecting the negative cable for storage. If stored for over six months, the battery may need removal and charging.
Cleaning: Remove debris from the generator, muffler, and controls after each use. Inspect air cooling slots for obstructions.
Storage: Recommendations include cleaning, inspecting cooling slots, disconnecting the battery, running the generator every 7 days for short-term storage, adding fuel stabilizer for long-term storage, and storing indoors with a protective cover.

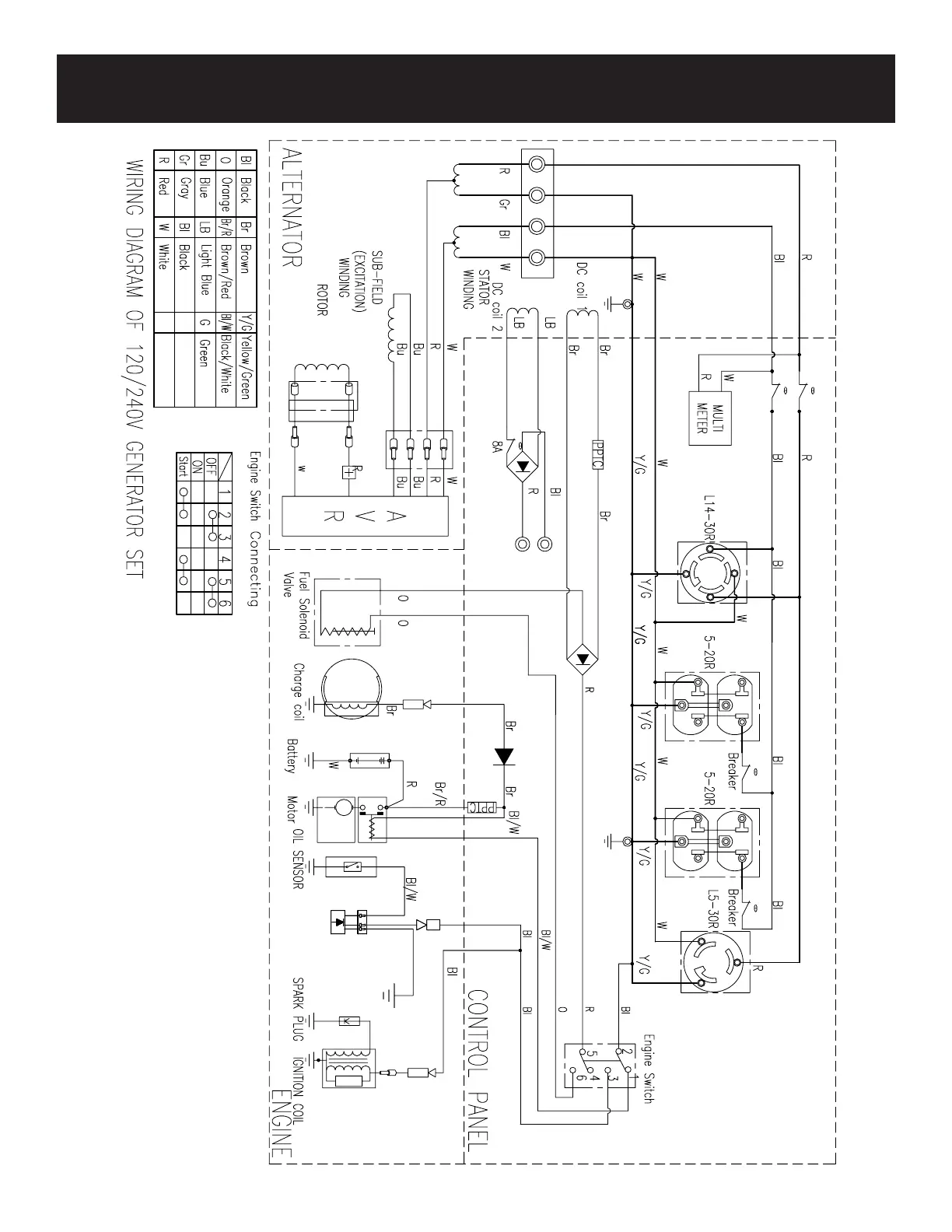

Pulsar PG7500 - Diagrams
