ASSEMBLY
Assembling The Handle
As shown in Fig 3&4
1. Fasten the lower handle to
The device by using two blots and
two small knobs on each side .
2. Unfold the upper handle and fix it to lower handle
By using the big knobs and the blots on each side
Tidy The Connection Cord
As shown in Fig 5
Fix the connection cord to the handle
With the cord clip .(supplied)
Assembling The Grass Bag
As shown in Fig 6
1. Clip the plastic clips over the metal frame. Make
sure that these clips are fully secured to
the metal frame.

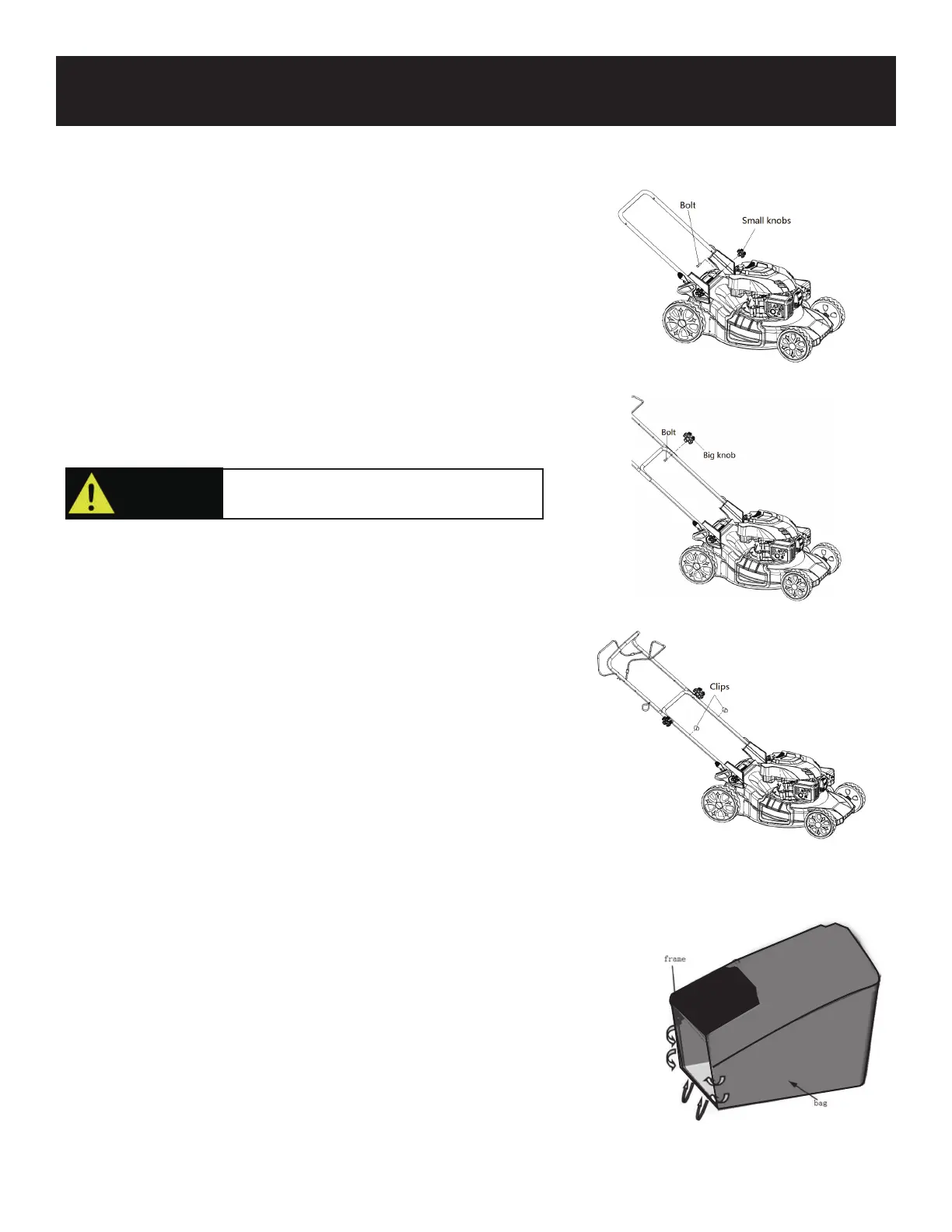

Fig 3
Fig 4
Fig 5
Fig 6
Make sure the rope guide is on the right
handle, when you stand behind the mower.
NOTE!
