ASSEMBLY
Assembling The Grass Bag Onto The Mower

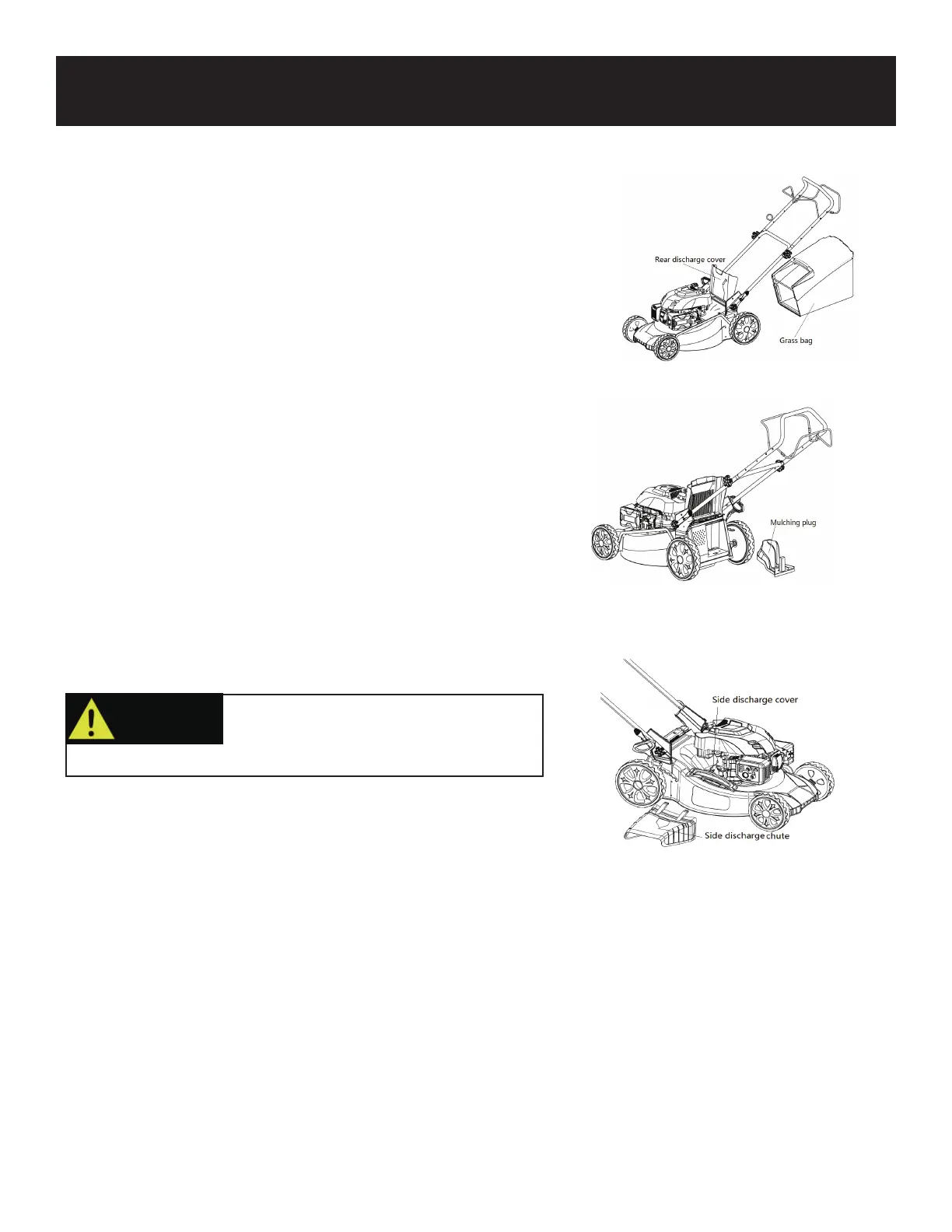

As shown in Fig 7
1. Lift the rear discharge cover with one hand
and hook in the grass bag .
2. Release the rear discharge cover to secure
the grass bag in position
Assembling the mulching plug
As shown in Fig 8
1. Remove the grass bag
2. Push the plastic mulching plug Into the discharge chute
until it is locked in place.
3. Then release the flap, it will close back to cover the mulching plug.
Assembling the side discharge chute
As shown in Fig 9
1. Lift the side discharge cover with one hand and hook in the side
discharge duct with the other hand.
2. Release the side discharge cover to secure the duct in position.
When using the side discharge function.
You need to first remove the grass bag
NOTE!
Fig 7
Fig 8
Fig 9
and plug the mulching plug.
