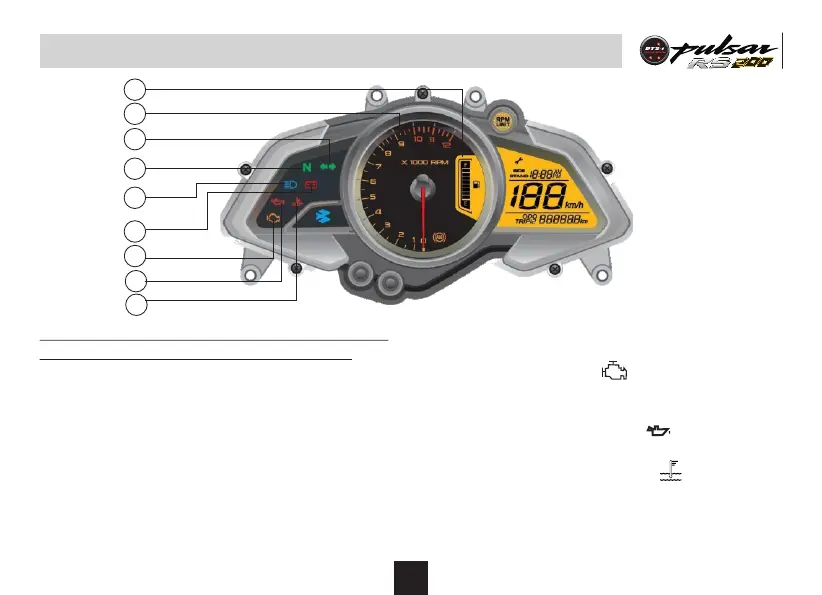

Speedometer Details
Speedometer display will work when, only both
Ignition switch & kill switch are in ‘ON’ position.
1. Fuel Level Indicator: It shows fuel level in fuel tank.
2. Tachometer Dial: It shows engine speed in RPM.
3. Turn Signal Indicator (LH & RH): When Turn signal
switch is turned to Left or Right, Turn pilot Indicator -
LH or RH will flash.
4. Neutral Indicator: When the transmission is in
Neutral, Neutral indicator will glow.
5. Hi Beam Indicator: When Headlight is ‘ON’ & Hi
beam is selected with engine running, Hi beam
indicator will glow.
6. Low Battery Indicator : It indicates battery needs
charging.
7. Malfunction Indicator ( ) :It blinks whenever any
abnormality is noticed in fuctioning of FI system
related componenets
8. Low Oil Pressure Indicator ( ) : It blinks when
engine oil pressure is low.
9. Coolant Temperature Indicator ( ) : It blinks when
0
engine coolant Temperature is more than 115
centigrade.
7
