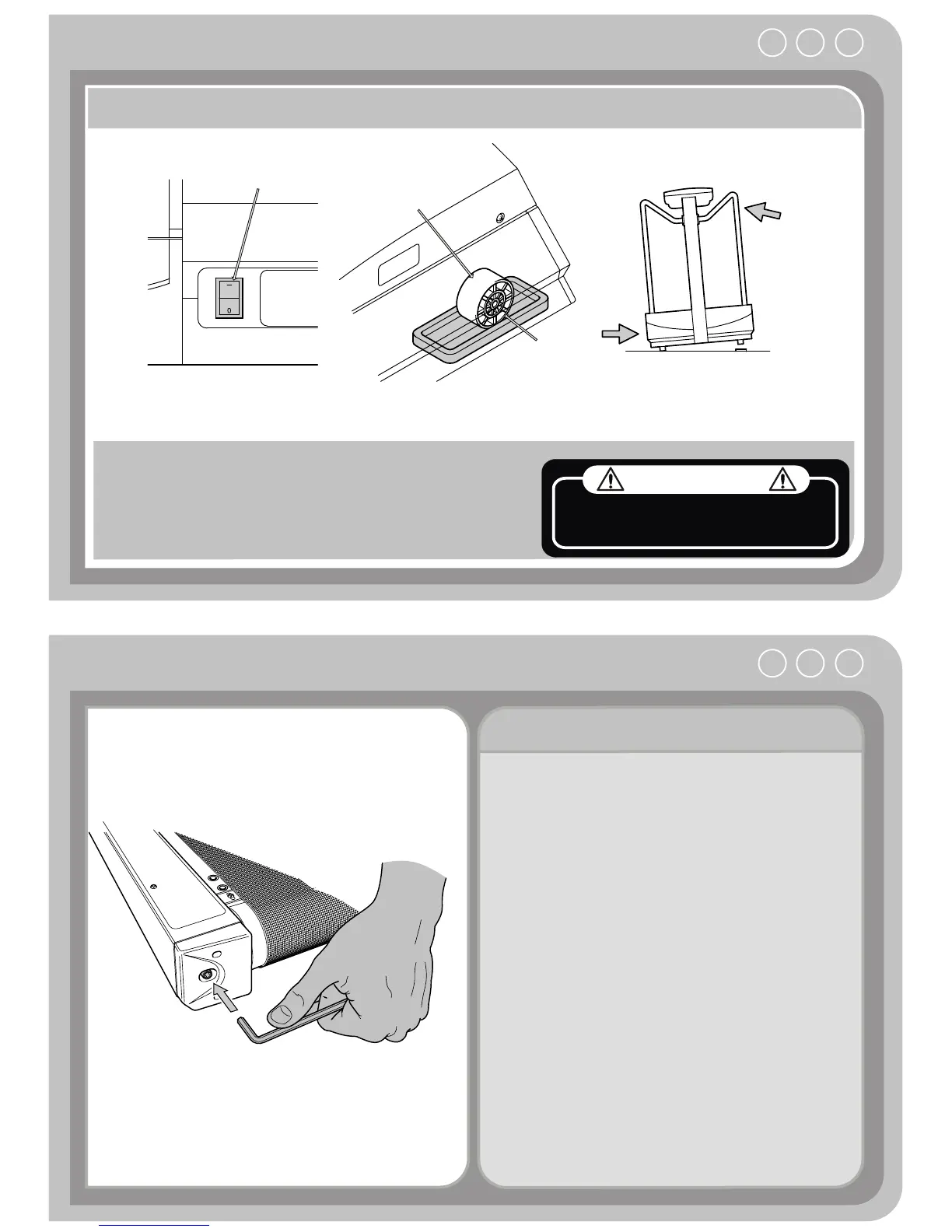

Installation Procedure 260F-T
The Treadmill is delivered with a mains cable which has a moulded plug already
fitted. Plug the Treadmill into a suitable mains socket and then switch on the power.
Switch on the Treadmill via the on/off (I/0) switch mounted at the front of the machine.
(See diagram) The control panel display should illuminate. This indicates that the
Treadmill is now ready for use.
Belt alignment should now be checked before use. (See diagram on next page)
Ensure that the mains cable is routed in such a way
that it does not create a potential hazard to users of
the Treadmill or other persons in the vicinity.
CAUTION
ON/OFF
Switch
Front
Wheels
On/Off Switch Front Roller Guides
Roller
Guides
Assembly manual
Belt Tension / Alignment
Once the belt is aligned the overall tension of the belt can be
checked to make sure that it does not slip on the rollers, this is
done as follows; Firstly, run the machine at 5 kph/3 mph as
described above, and whilst you are walking on the machine hold
onto the side rails and try to stop the belt from moving using
reasonable force (Take great care when doing this procedure). If
the belt is not effected, then no adjustment is required.
However if the belt slips then use the Allen key to adjust both
tension bolts (see diagram), increase the tension of the bolts
equally by turning them no more than half a turn at a time.
Re-check the tension of the belt after each turn until the belt won’t
slip, (take care not to over tighten the belt as it may stretch). Once
the tension is correct, check the alignment of the belt again.
To check the belt alignment, firstly switch the machine on and
press START, then select QuickSTART and enter 10 min. Run the
machine at 5 kph/3 mph and with the Allen key adjust the left
hand tension bolt (as shown in diagram) turn the bolt 1/4 turn at a
time to increase or decrease the belt tension. The belt will move
either left or right and once correctly set should run centrally in
the walk way.
NOTE: Take care not to touch the belt during this procedure
Tools Required - 1 x Allen Key Allen Key.
Installation Procedure 260 F-T
Belt Alignment
08
07
