EN
22
Switch-on pressure
(bar)
Maximum distance X
between the highest
position of the tap
and the unit (m)
Theoretical value of
the max. delivery
height for the
corresponding pump
Design value of the
max. delivery height
for the corresponding
pump
1,2
12
15
18
1,5
15
18
21
2,2
22
25
28
Connection to 230 V single-phase voltage
Maximum output 1.1 kW

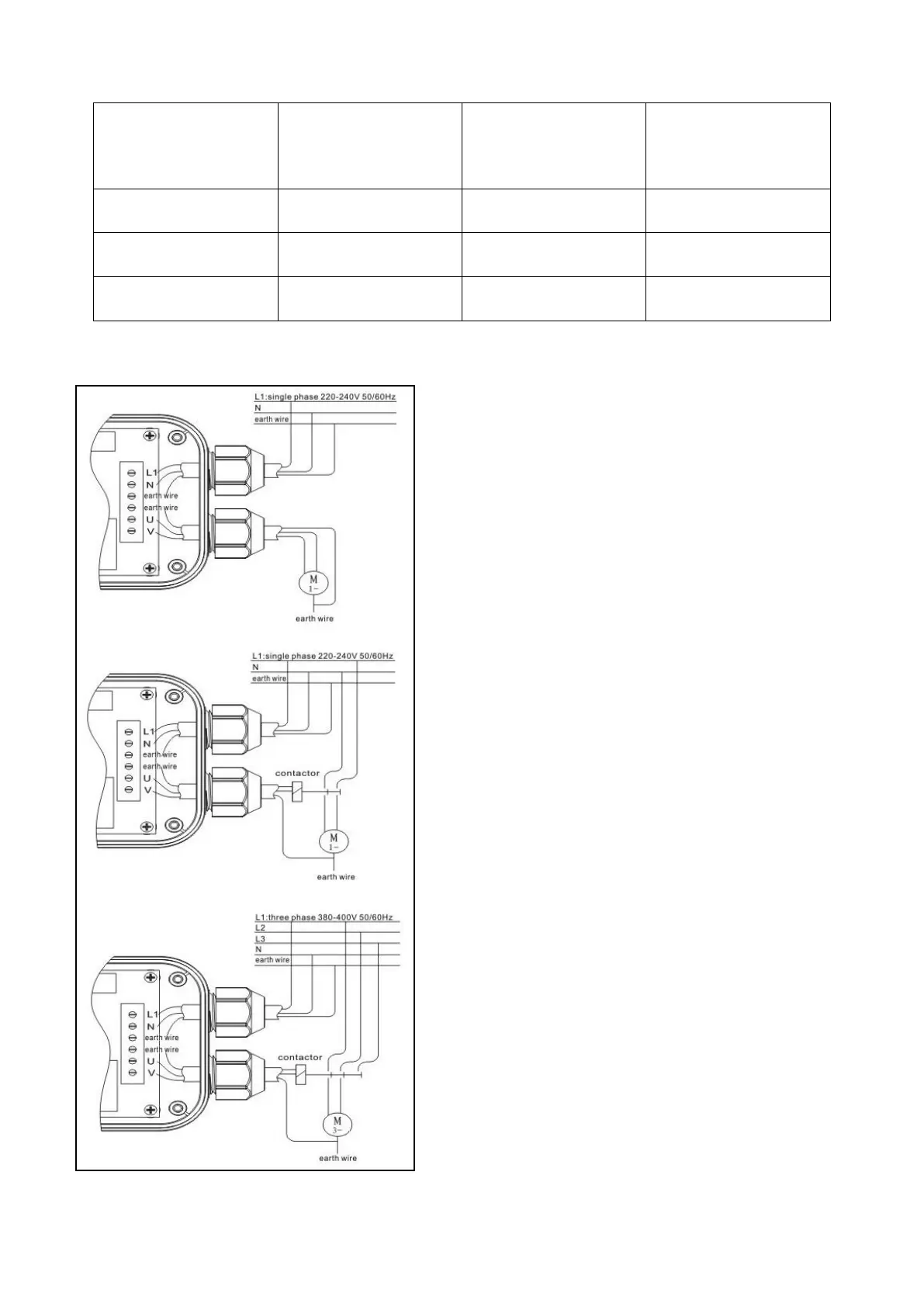

Pump wiring diagram
Wiring diagram of the unit, connection to a
230 V single-phase pump and power greater
than 1.1 kW via a contactor.
Wiring diagram of the unit, connection to
three-phase 400 V pump via contactor.
Diagram 3
Diagram 2
