SERVICE INSTRUCTION
K 152, 202, 203, 252, 302
Removal of Shaft/Rotor Unit and Bearings

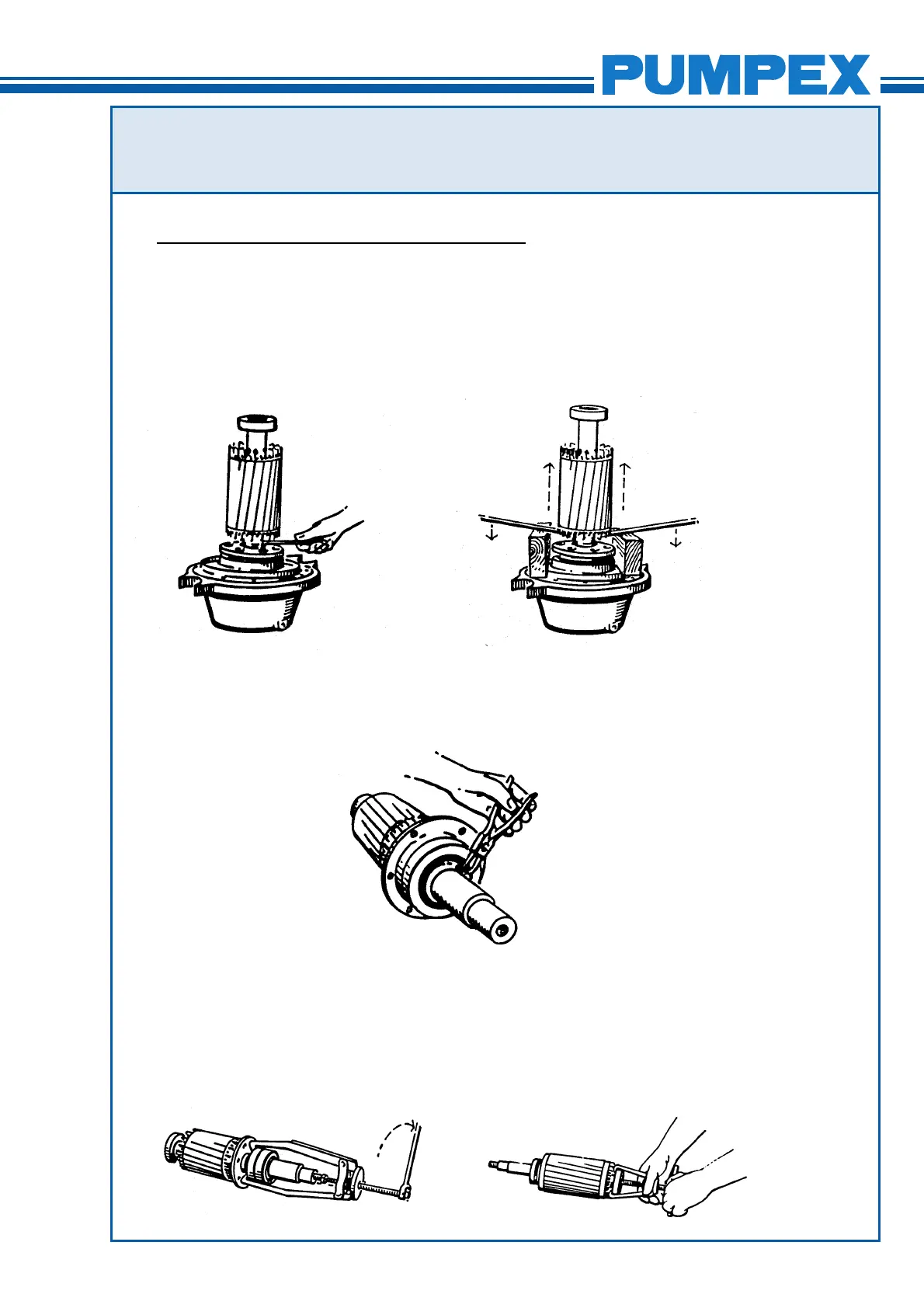

The shaft/rotor unit and oil housing is held together by six (6)
screws in a bearing cover above the lower ball bearings. Remove
the screws and press out the shaft/rotor unit.
Bearings which have been in contact with water or otherwise
damaged shall be replaced.
Place the shaft/rotor unit in a wise with soft jaws. Remove the
circlip and bearing washer from the shaft.
Screw the impeller bolt onto the shaft in order not to damage the
threads when using a bearing puller. Mount the puller over the ball
bearings and pull off the bearings. Turn the rotor over in the wise
and pull off the upper ball bearing with a puller.
