6 (13)
SERVICE INSTRUCTION
K 82, 85, 101, 102, 104, 151, 155
K82/85/101/102/104/151/155.58.0211.Eng/Digital

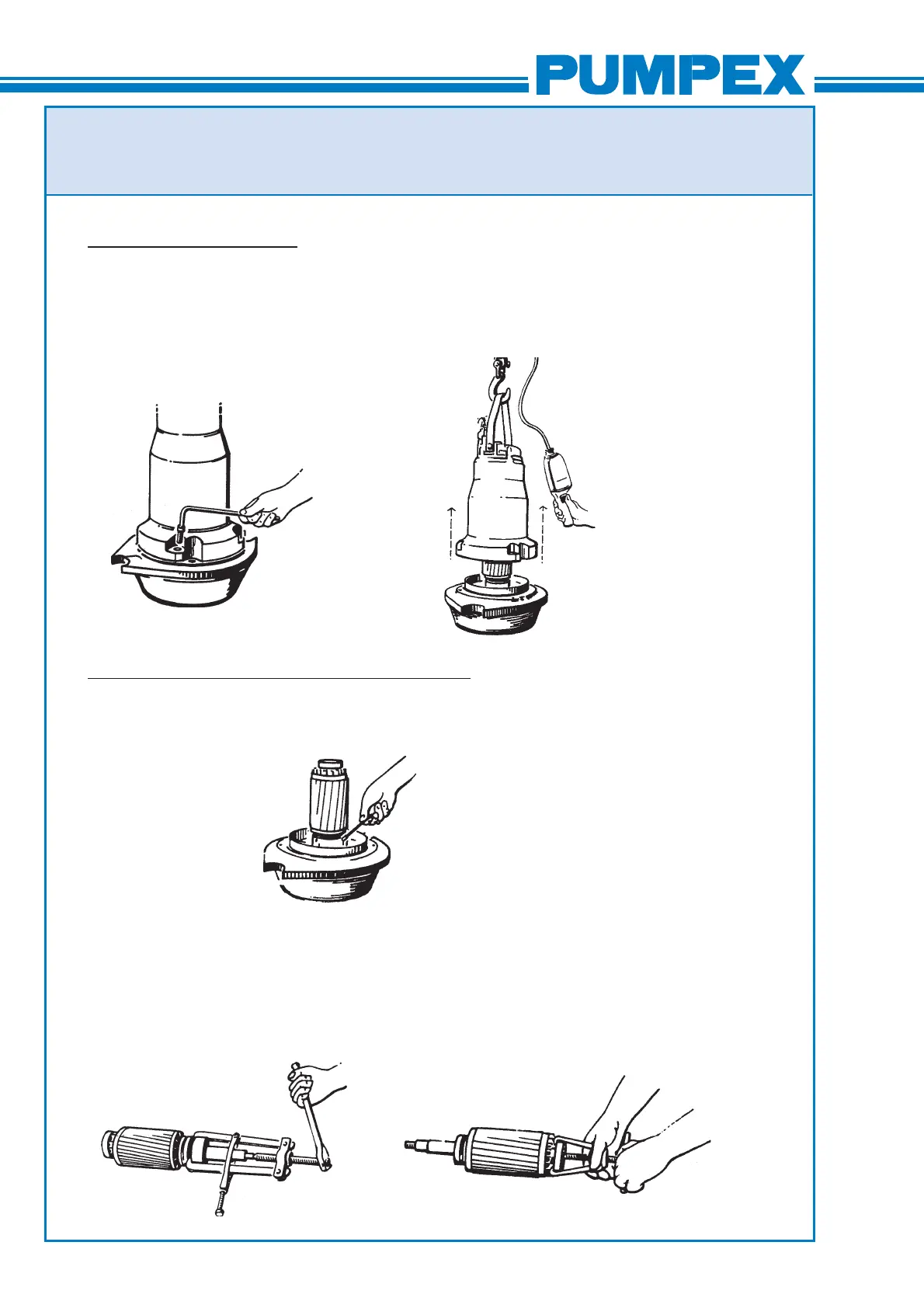

Removal of Stator Unit
Place the driving unit in an up-right position on a bench. Remove
the screws holding the stator housing and oil housing together.
The stator unit can now be lifted away from the oil housing and
shaft/rotor unit. If stator unit doesn’t separate, tap oil housing
gently with a soft hammer.
Removal of Shaft/Rotor Unit and Bearings
The shaft/rotor unit and oil housing is held together by three (3)
stop screws. Remove the screws and press out the shaft/rotor
unit.
Bearings, which have been in contact with water or otherwise
damaged shall be replaced.
Place the shaft/rotor unit in a wise with soft jaws. Before removing
the lower bearing, clean and add some oil on the shaft. Remove
the bearings by using a standard bearing puller.
