8 (13)
SERVICE INSTRUCTION
K 82, 85, 101, 102, 104, 151, 155
K82/85/101/102/104/151/155.58.0211.Eng/Digital

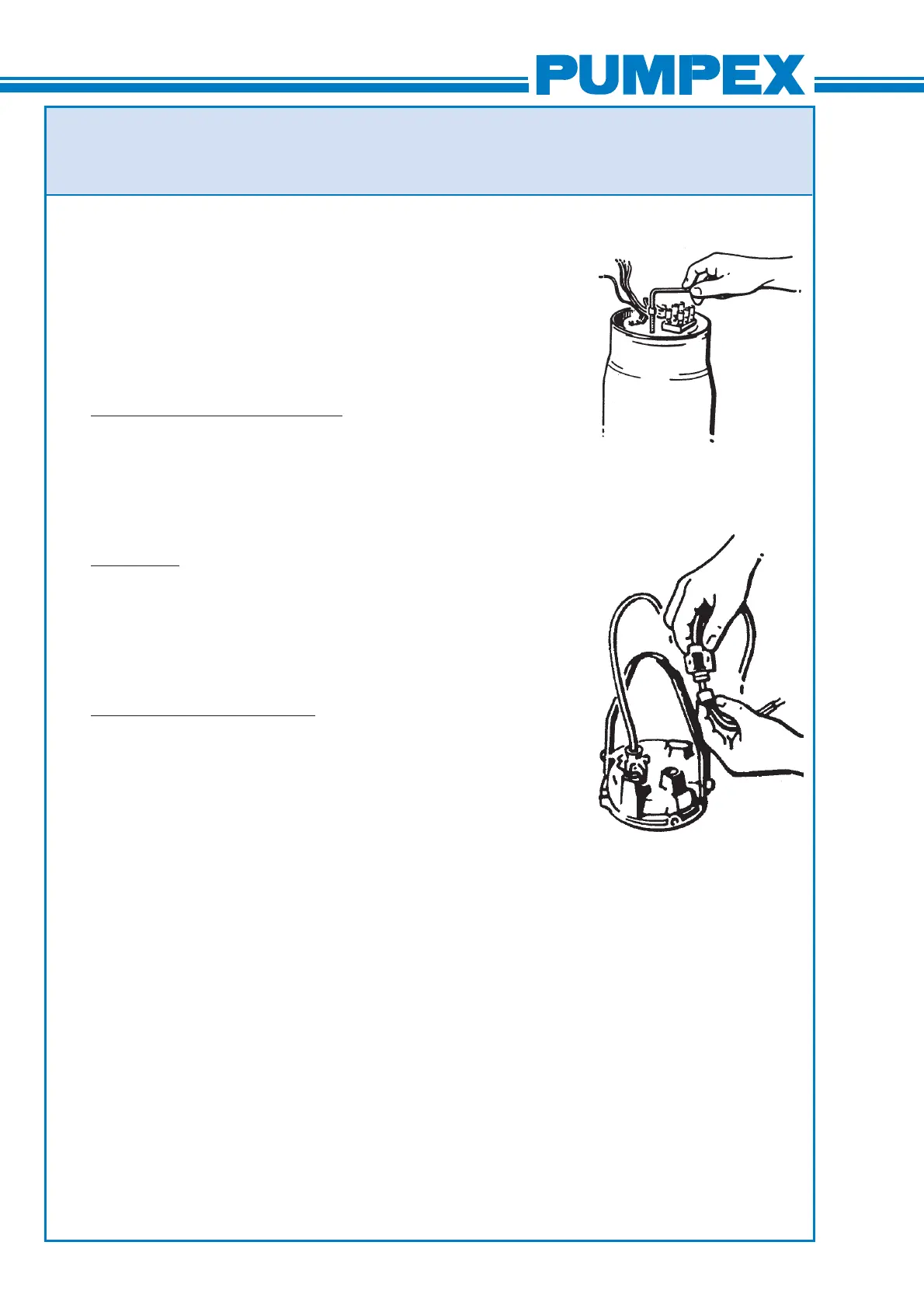

If stator insulation reading after drying is still low, the stator unit
should be replaced. Remove terminal boards (and terminal board
plate).
The defective stator unit (stator and stator housing) should be
sent to the nearest service point in exchange for a rebuilt unit.
Disassembly of Cable Entry
If water has penetrated through the cable entry into the junction
box, the cable entry bushings should be replaced. Remove
strain relief clamp on cable entry prior to unscrewing cable
entry body. Pull out cable, rubber bushing and washers.
Assembly
Prior to assembly, clean all parts carefully especially 0-ring
groves and mating surfaces. Grease or oil 0-rings to eliminate
damage during assembly. Put some grease or oil on screw
threads to simplify disassembly during future overhaul.
Assembly of Cable Entry
Measure inner diameter of cable entry rubber bushing to see
that it corresponds to cable diameter. Place rubber bushing and
washers (one (1) on each side of the bushing) on the cable.
Pull cable through the junction box cover, far enough to let the
rubber bushing seat on a nondeformed portion of the cable.
Tighten the cable entry body. Fit the strain relief clamp in such a
way that it prevents the cable entry from loosening.
