Rear panel
8

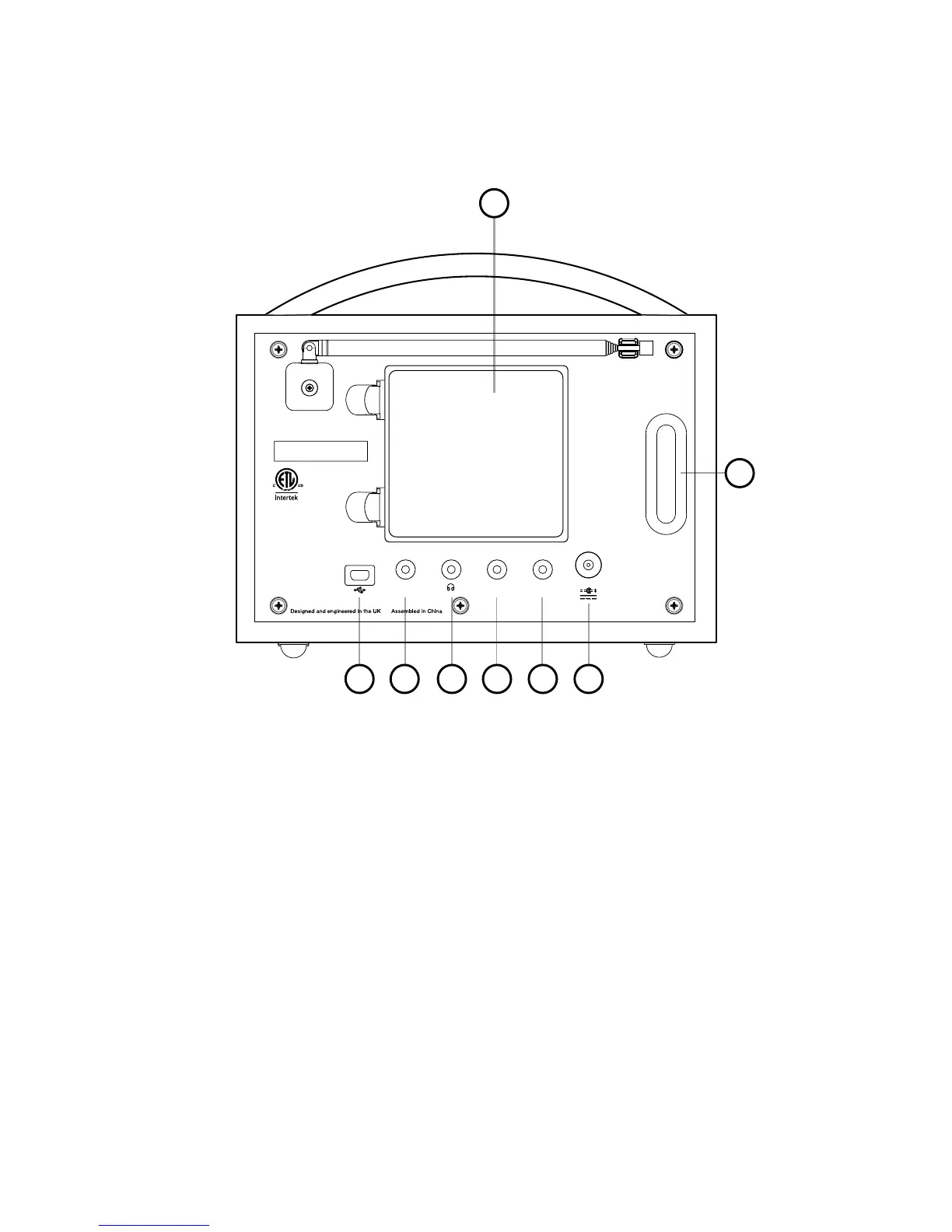

1. USB connector (mini A to mini‑B type) for upgrading Evoke Flow’s software when a wireless internet
connection is not available.
2. Output connector for the S1 auxiliary speaker.
3. Output connection for headphones (3.5mm).
4. Output connection to an external amplifier using a suitable 3.5mm‑to‑RCA cable (not supplied).
5. 3.5mm auxiliary input connection for an iPod, MP3 player, etc.
6. 6VDC input connection for supplied mains adapter.
7. Acoustically tuned bass reflex port (do not cover).
8. Compartment for ChargePAK E1 rechargeable battery (sold separately).
