Puredrive PureStorage II - Installation Procedures; Mechanical Installation; Single and Multiple Battery Installation

Li-LV LFP Battery Module | USER MANUAL
7

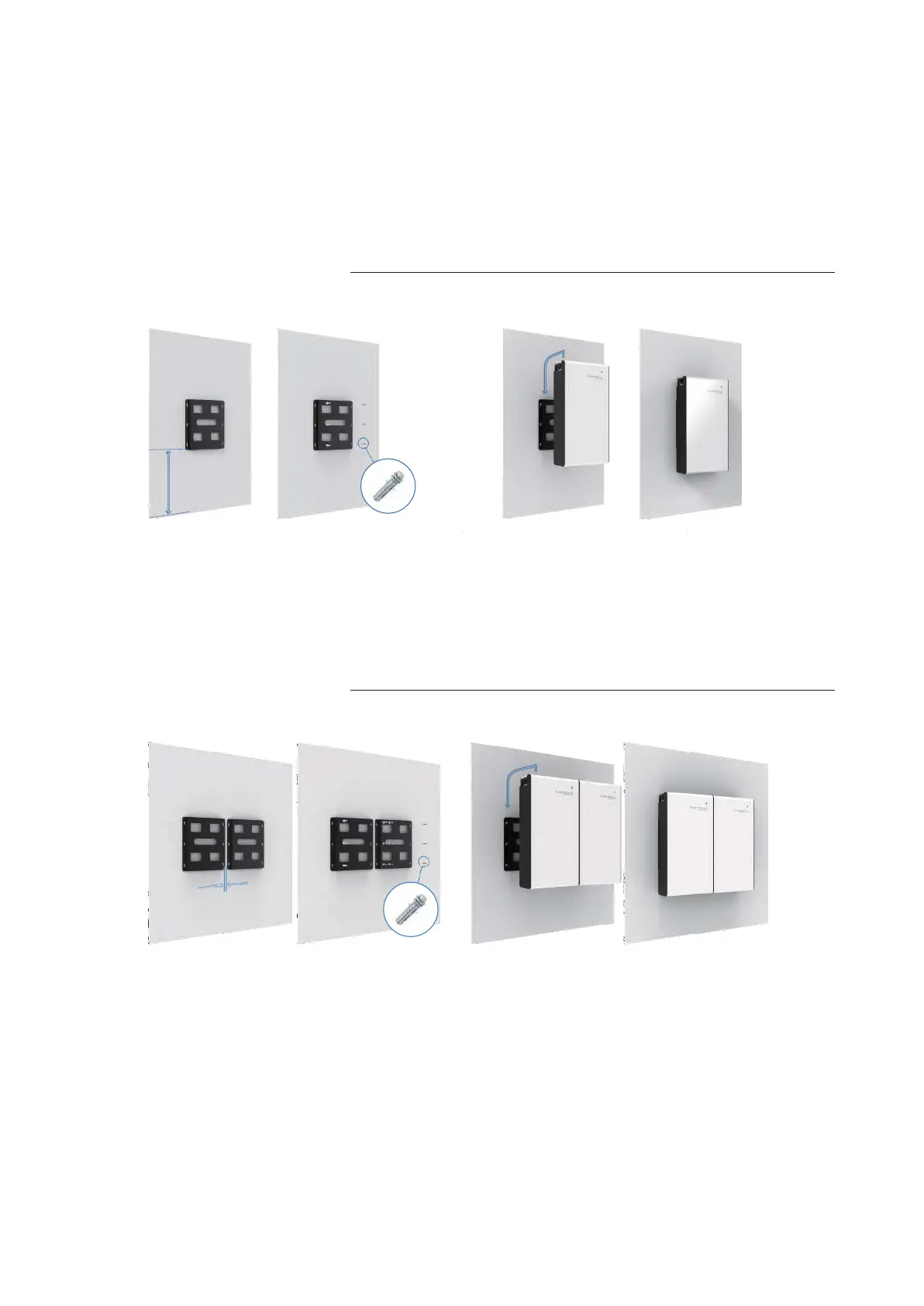

Single battery installation
Minimum 200mm
above ground.
Step-1, Confirm the
exact position of
battery bracket
Please use M6 expansion bolts
to fix the battery bracket on
the wall according to the fixed
position.
Step-2, Mount the battery
module to the battery
bracket.
Multiple battery installation
Bracket spacing is
greater than 20mm.
Step-1, Confirm the
exact position
of battery bracket.
Please use M6 expansion
bolts to fix the battery
bracket on the wall
according to the fixed position.
Step-2, Mounting the
battery module to the
battery bracket.
Mechanical Installation
