MAX2 4K60 Cross Platform Matrix Router
43
Cable Termination
● HDBaseT (HDBaseT) cable
● RS-232/422 cable (MAX2 Matrix)
● LAN cable
● Audio cable
● RS-232/422 cable (MAX2 Extenders)

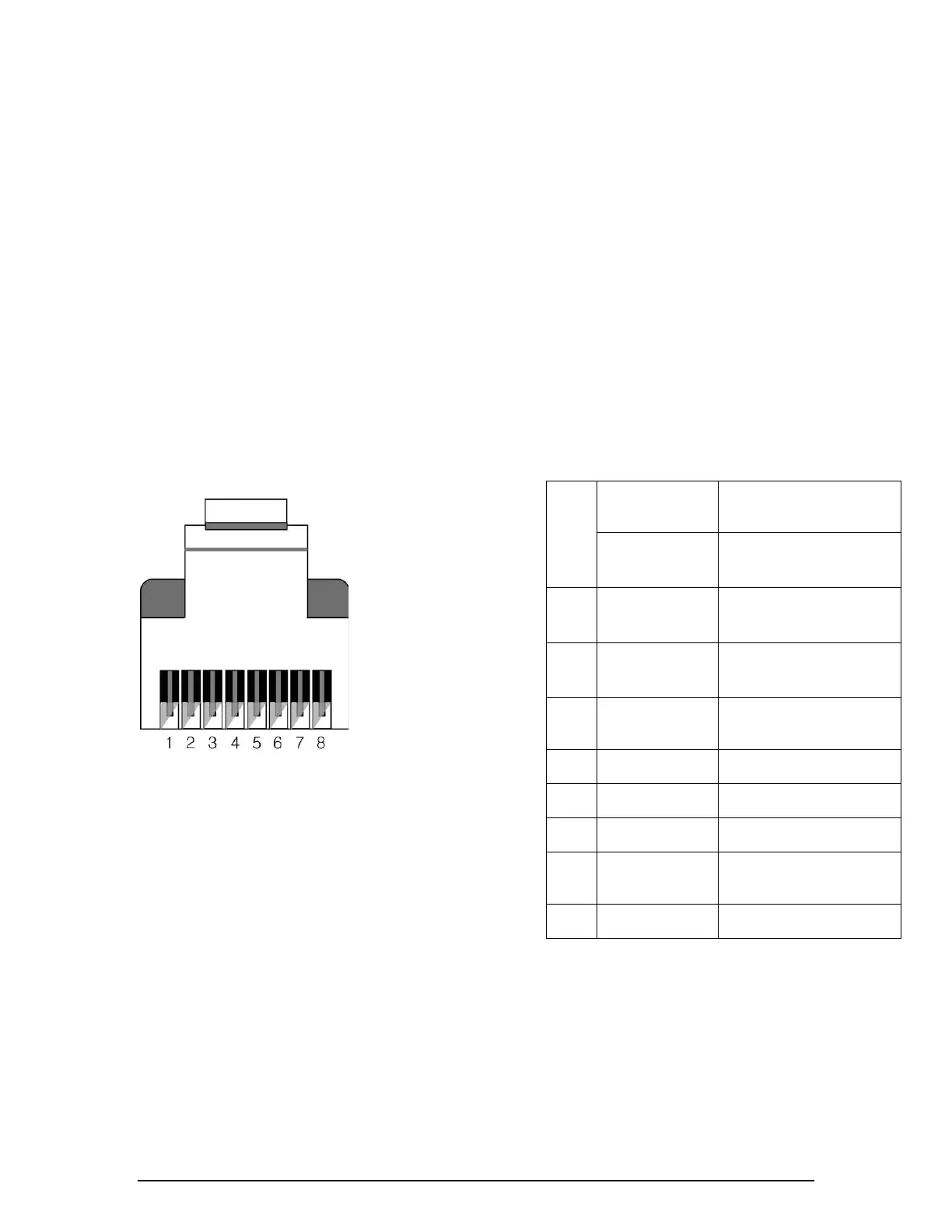

HDBaseT Cable Termination (for HDBaseT Input/Output Cards)
PM series Matrix Router and Extenders are designed TIA/EIA-566-B Standard.
Please ensure that each PIN layout of the cable corresponds with the picture
below before connecting the cable. Please note that HDBaseT or above level
cable enables better quality and longer distance.
RS-232/422 Cable Termination (for Control)
Note) Crossover (Null modem) cable
must be used for the
communication with PM series
Matrix Router
The following table shows the pinout of the RS-232/422 connector. Note that in
the pinout table, some transmit/receive functions (abbreviated as Tx/Rx) are
different for RS-232 versus RS-422. DB9 cables are available with male-to-male,
female-to-female, and male-to-female connectors. PM series Matrix Router's RS-
