PureLink MAX2 Series User Manual

MAX2 4K60 Cross Platform Matrix Router
45
Operation
MAX2 series Matrix Router can be operated via three convenient methods.
1) Front panel LCD touch screen
2) RS-232/422C
3) LAN (TCP/IP)
Front Panel LCD Touch Screen Operation
Front panel LCD touch screen of MAX series Matrix Router is designed for
user to operate and configure settings through six main menus;
1. Create - Configuring Input - Output switching connections
2. Preset - Create, save and recall the presets
3. EDID - Configure EDID settings
4. Settings - Configure communication settings and resetting the system
5. Info – Check system, input, and output status
6. I/O Configuration - Configure I/O options
7. Dante
1. Create
MAX2 series Matrix Router is designed to create and switch. This section will
guide users how to create/disconnect switching Video connections.

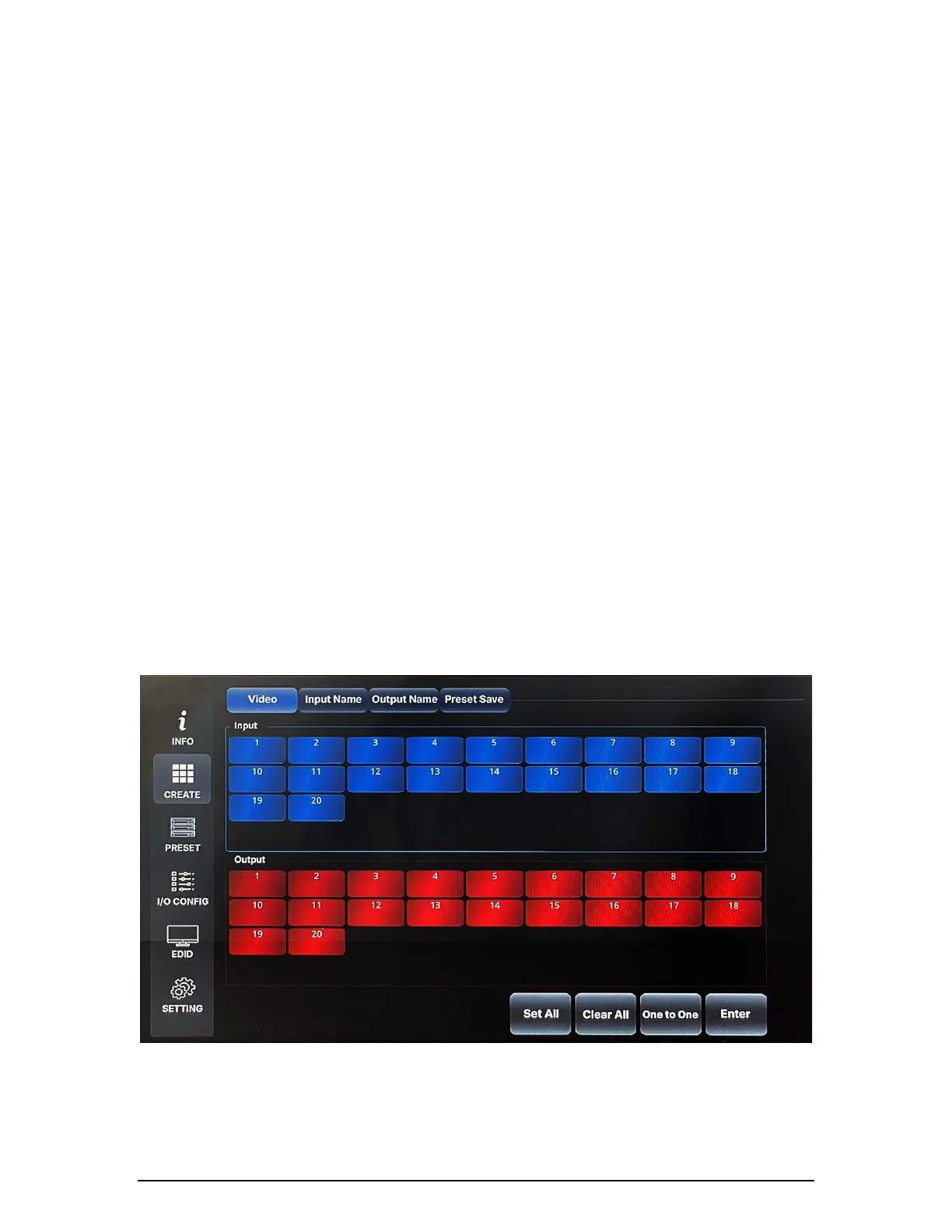

1.1) Video
