PureLink MAX2 Series - Front View

MAX2 4K60 Cross Platform Matrix Router
6
Front View:
The MAX2 Matrix Router frame is mountable in a 19'' standard rack. The frame
height varies with each model. The touch screen control panel allows you to set
up and operate the MAX2. The touch panel can be locked to avoid unintended
or unauthorized use.

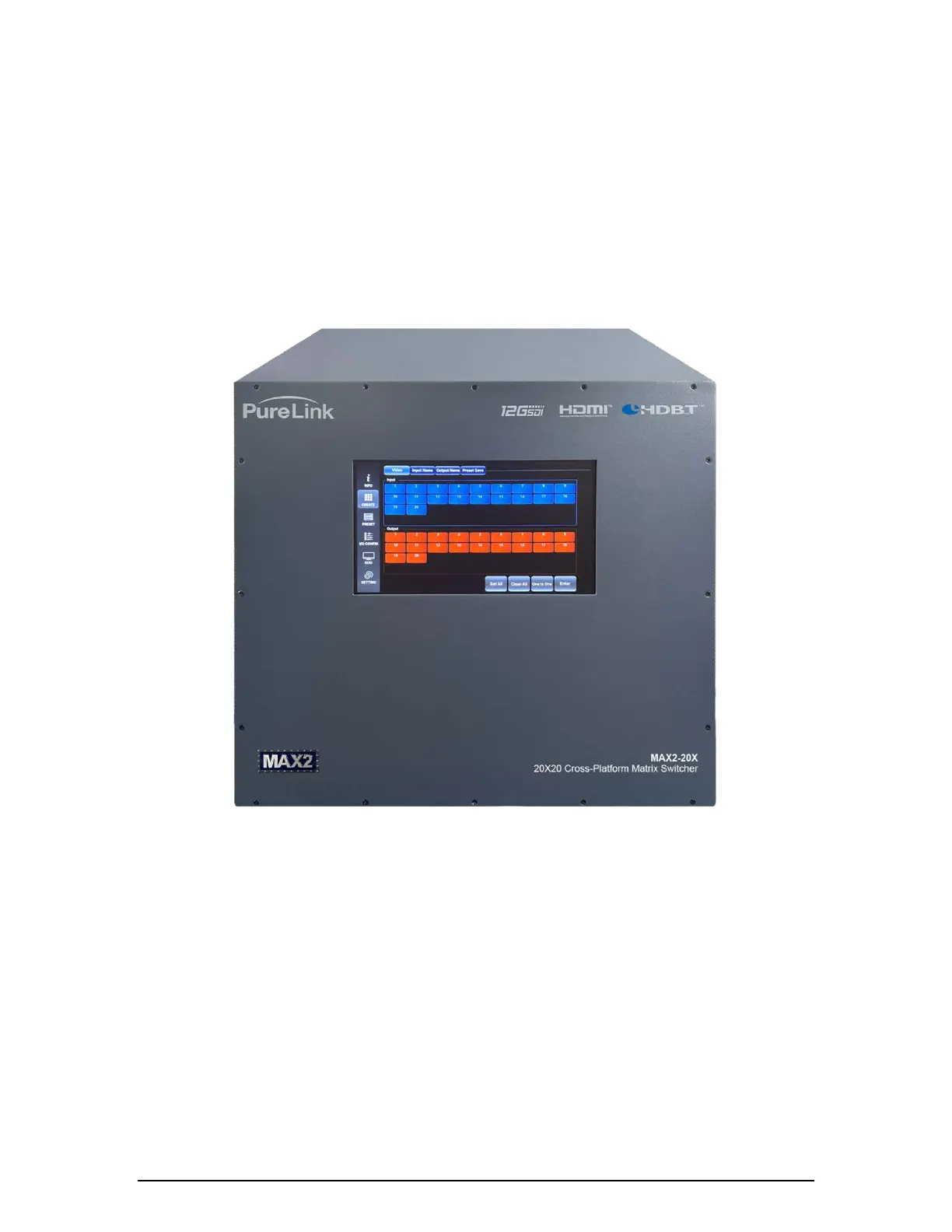

Figure 1-1 Front view of MAX2-20X enclosure
