10

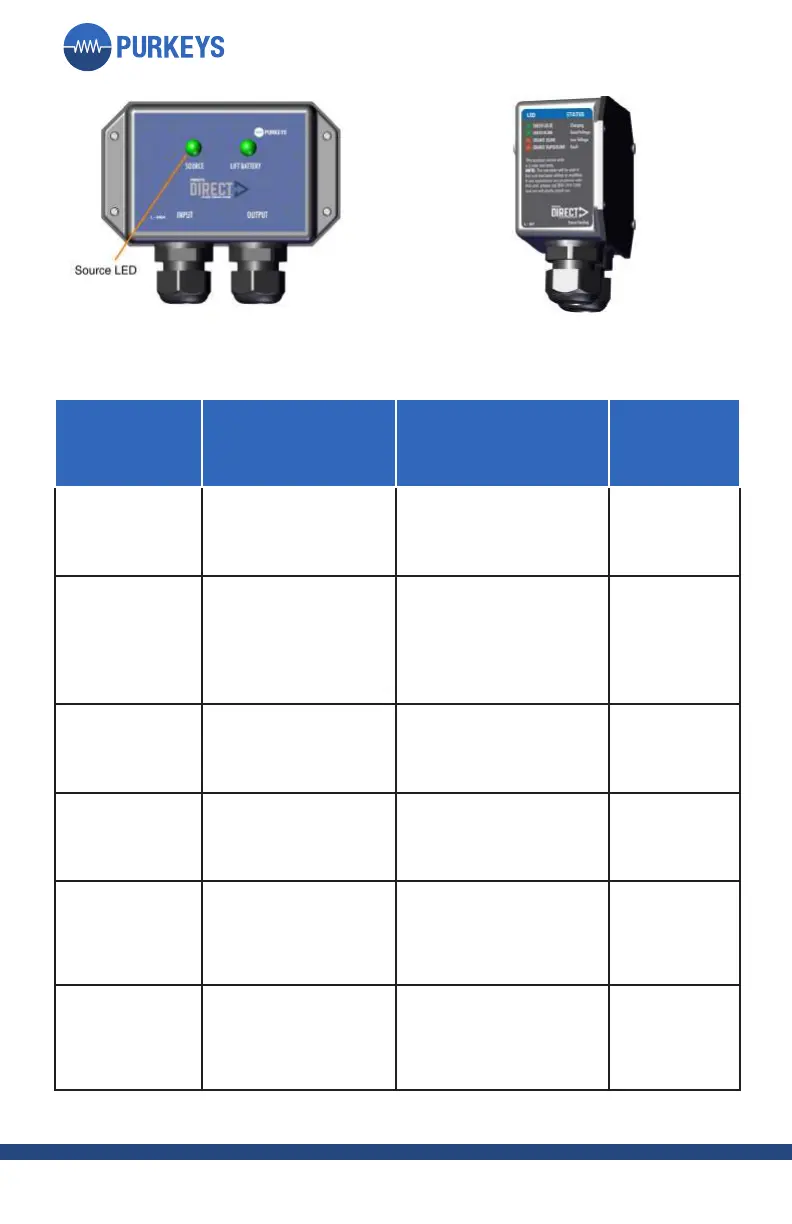

Figure 6 Figure 7
LED STATUS CONDITION ACTION NEEDED REFERENCE
Solid Green
Charging mode
from stinger or
aux.
None.
Slow
Flashing
Orange
Input voltage from
the source is less
than 12.4 volts.
Determine where
the problem exists
and repair or
replace defective
portion.
Ref #4
Slow
Flashing
Green
Voltage is over
12.4 volts.
Start the tractor.
Rapid
Flashing
Orange
Open positive
fuse on the
stinger circuit.
Repair the circuit
and replace the
fuse.
Ref #3
No LED
No voltage from
the stinger cord.
Determine where
the problem exists
and repair or
replace the circuit.
Ref #4
Green, then
Toggling
Orange and
Repeating
Excessive voltage
drop.
Replace or repair
the source power
and ground wire
harness.
Ref #5
