4

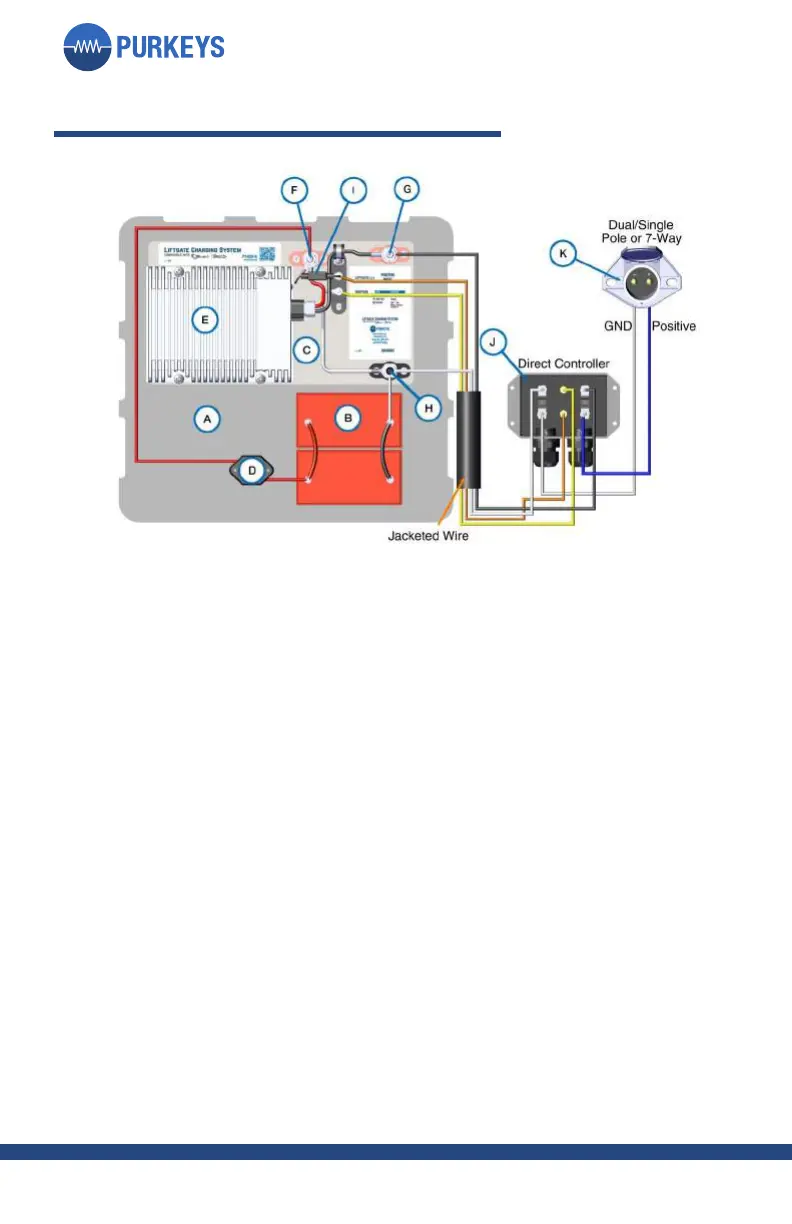

WIRE DIAGRAM AND LEGEND
Component:
A. Liftgate Battery Box
B. Liftgate Battery Pack
C. P1020-K Liftgate Charging System Plate Assembly
D. 30 Amp Circuit Breaker
E. DC/DC Converter
F. DC/DC Converter Output Stud
G. DC/DC Converter Input Stud (+)
H. DC/DC Converter Input Stud (-)
I. 2 Amp Inline Fuse from Liftgate Batteries
J. Direct Controller
K. Input Source (Dual/Single Pole, 7-Way, Straight Truck
Battery Pack, or Reefer Unit)
