DIRECT DIAGNOSTIC GUIDE
STATIC DIAGNOSTICS
Not connected to a charging source or not charging (at rest) (see

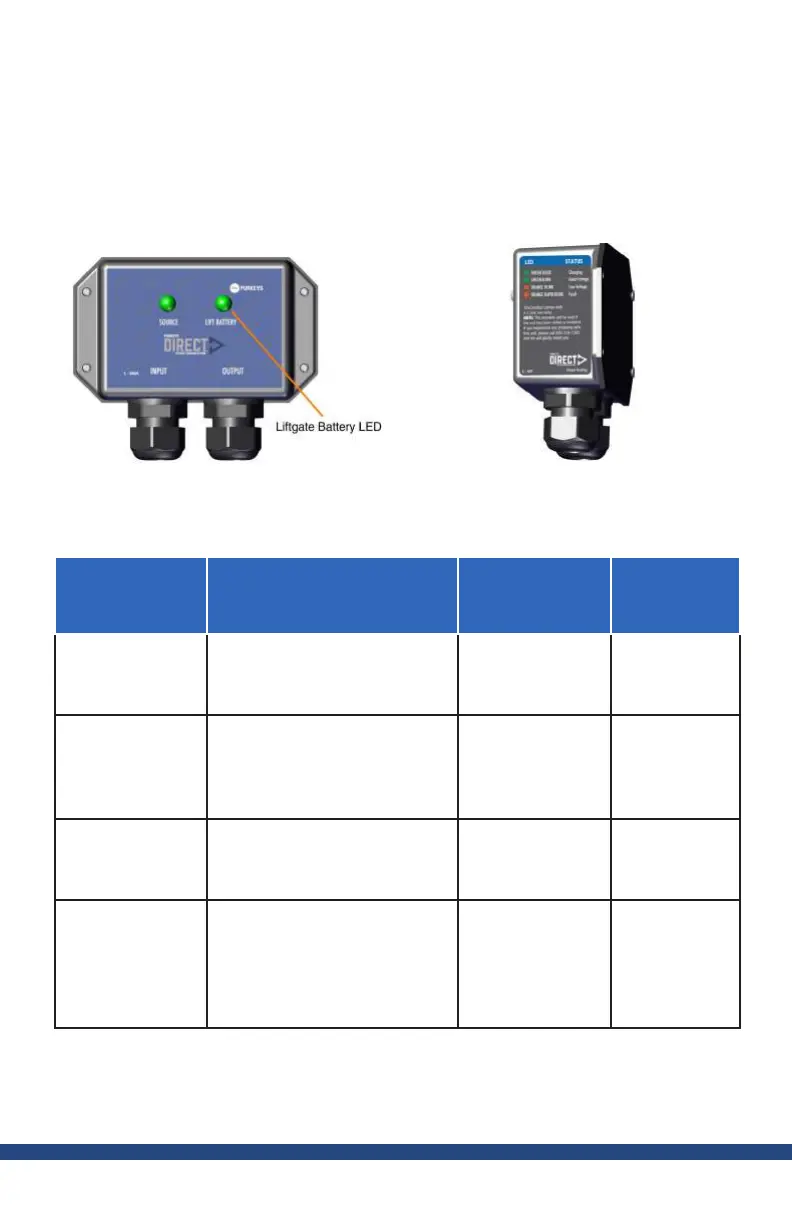

Figure 2 for location of Liftgate Battery LED; see Figure 3 for
LED status reference, located on right side of Direct Controller).
Figure 2 Figure 3
LED STATUS CONDITION
ACTION
NEEDED
REFERENCE
Slow Flashing
Green
Liftgate batteries in
good state of charge
(more than 12.4 volts).
None.
Slow Flashing
Orange
Liftgate batteries in low
state of charge (voltage
between 9.0 and 12.4
volts).
Charge and
test batteries.
Rapid
Flashing
Orange
Open ground fuse.
Repair
circuit and/or
replace fuse.
Ref #1
No LED
Open circuit from
liftgate battery positive
and Direct Controller or
disconnected ground in
liftgate battery box.
Repair circuit,
reset circuit
breaker, or
replace fuse.
Ref #2
