DIRECT DIAGNOSTIC GUIDE
CHARGING DIAGNOSTICS

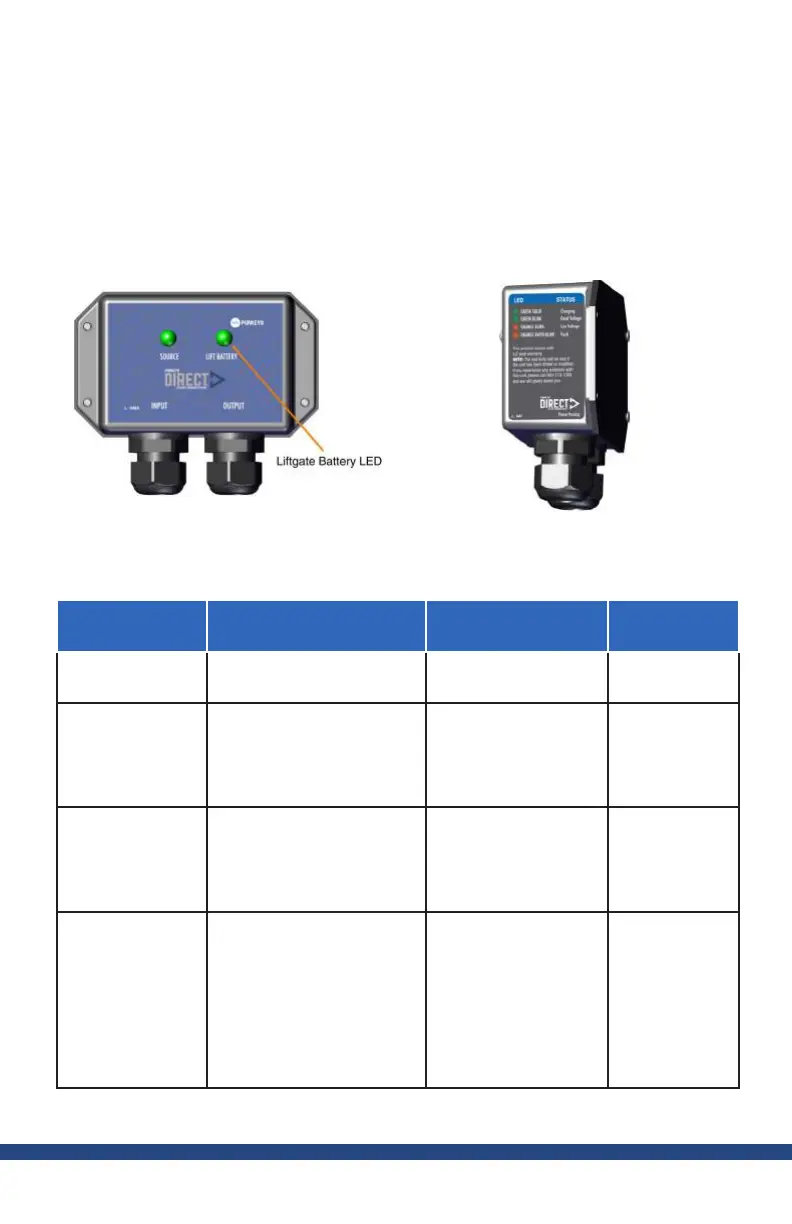

Charging from the source (the source LED is Solid Green). The
Lift Battery LED status is as listed in table below (see Figure 12
for location of Liftgate Battery LED; see Figure 13 for LED status
reference located, on right side of Direct Controller.)
Figure 12 Figure 13
LED STATUS CONDITION ACTION NEEDED REFERENCE
Solid Green Charging. None.
Slow
Flashing
Green
Good battery
voltage, but may not
be charging.
Check the DC/
DC Converter
and circuit
protection.
Page 16
Slow
Flashing
Orange
Low battery, but may
not be charging.
Check the DC/
DC Converter
and circuit
protection.
Page 16
No LED
Open circuit from
liftgate battery
positive and
Direct Controller
or disconnected
ground in liftgate
battery box.
Repair circuit,
reset circuit
breaker, or
replace fuse.
Ref #2
To Next Page
