No LED: Open circuit between liftgate battery positive or liftgate
battery ground and the Select Controller. Follow the steps below
to diagnose the No LED Status (see Figure 5).

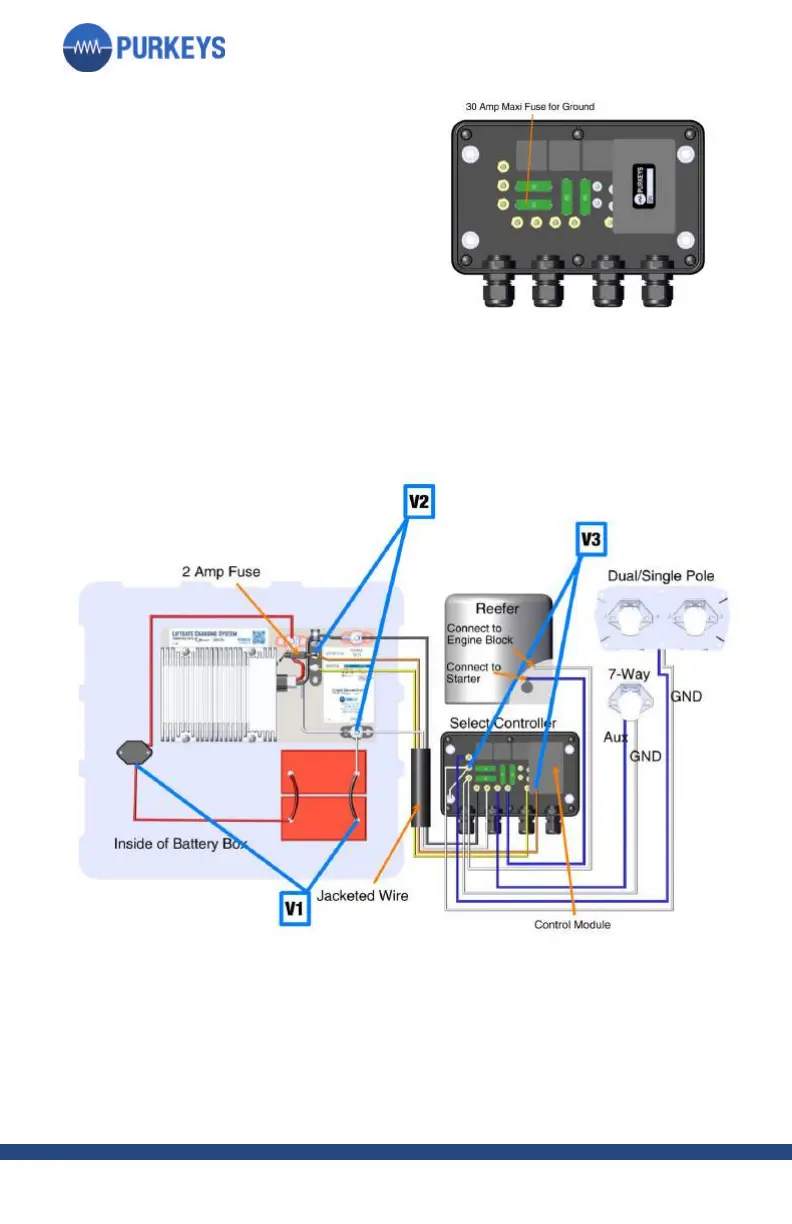

Figure 5
Step 1: Using a voltmeter, measure the voltage between the
DC/DC converter side of the circuit breaker and the negative
post on the liftgate battery (see V1 in Figure 5). If the reading is
less than 12.0 V, charge or replace the batteries. If the battery
reading is higher than 12.0 V, move to step 2.
REFERENCE #1
Rapid Flashing Orange LED:
Repair ground circuit and/or
replace ground fuse (see
Figure 4 for ground fuse
location).
Figure 4
