SELECT DIAGNOSTIC GUIDE
STATIC DIAGNOSTICS

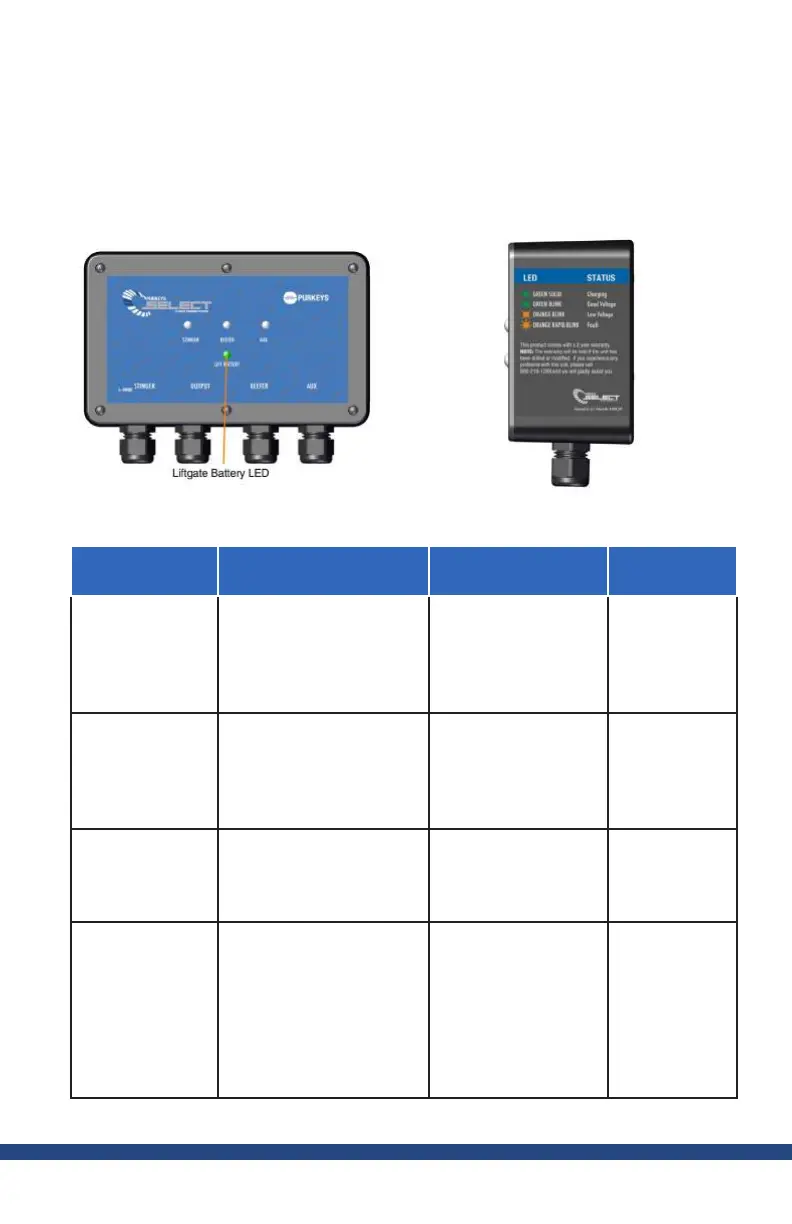

Not connected to a charging source or not charging (at rest) (see
Figure 2 for location of Liftgate Battery LED; see Figure 3 for
LED status reference, located on right side of Select Controller).
Figure 2 Figure 3
LED STATUS CONDITION ACTION NEEDED REFERENCE
Slow
Flashing
Green
Liftgate batteries
in good state of
charge (more than
12.4 volts).
None.
Slow
Flashing
Orange
Liftgate batteries in
low state of charge
(voltage between
9.0 and 12.4 volts).
Charge and test
batteries.
Rapid
Flashing
Orange
Open ground fuse.
Repair circuit
and/or replace
fuse.
Ref #1
No LED
Open circuit
between liftgate
battery positive and
Select Controller
or disconnected
ground in liftgate
battery box.
Repair circuit,
reset circuit
breaker, or
replace fuse.
Ref #2
