Purkeys SELECT - AUX Diagnostics

15
P: 479.419.4800 | F: 479.419.4801 | www.purkeys.net
SELECT DIAGNOSTIC GUIDE

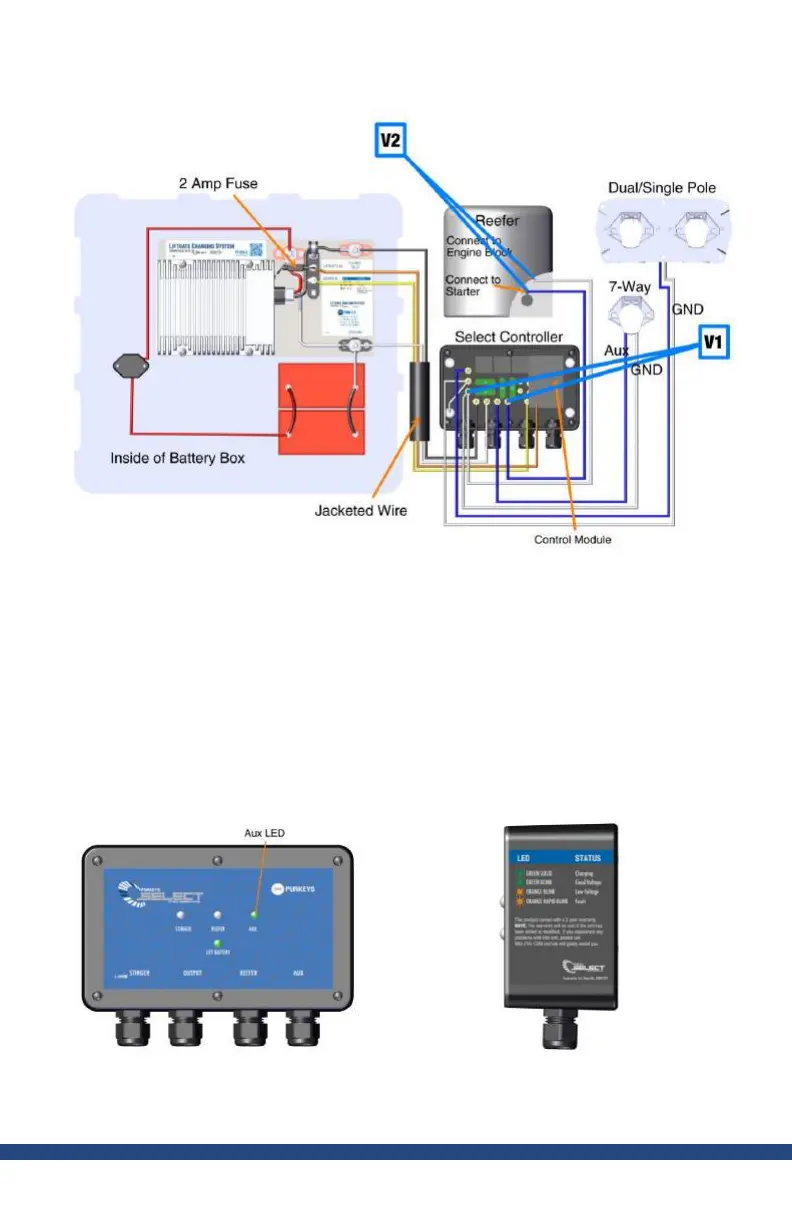

Figure 13
AUX DIAGNOSTICS
Start the tractor and unplug the stinger cord. Turn the reefer unit
off (see Figure 14 for location of Aux LED; see Figure 15 for LED
status reference, located on right side of Select Controller).
Figure 14 Figure 15
