SELECT DIAGNOSTIC GUIDE

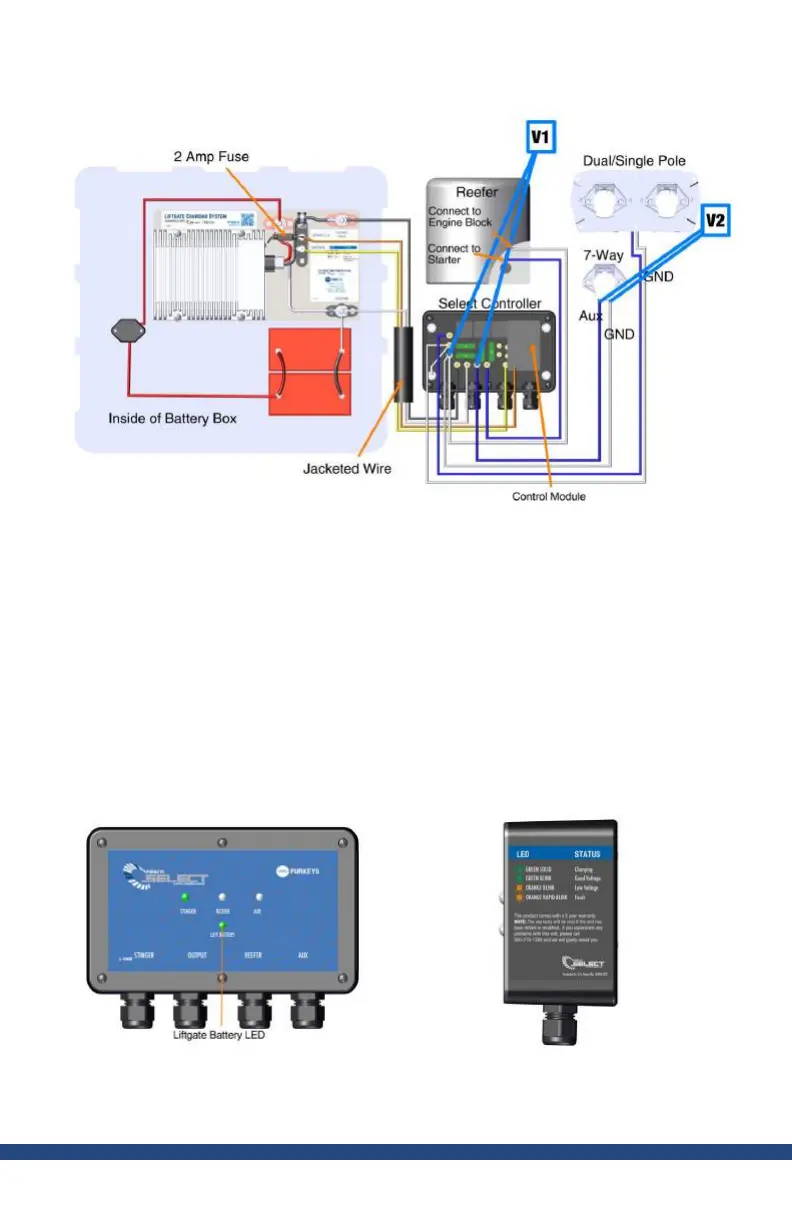

Figure 18
CHARGING DIAGNOSTICS
Charging from one of the available sources (one of the source
LEDs is Solid Green). The Lift Battery LED status is as listed in
table below (see Figure 19 for location of Liftgate Battery LED;
see Figure 20 for LED status reference, located on right side of
Select Controller).
Figure 19 Figure 20
