Purkeys SELECT - Page 18

16
REFERENCE #9
Rapid Flashing Orange LED:
Blown fuse on the AUX of
7-way circuit. Replace the

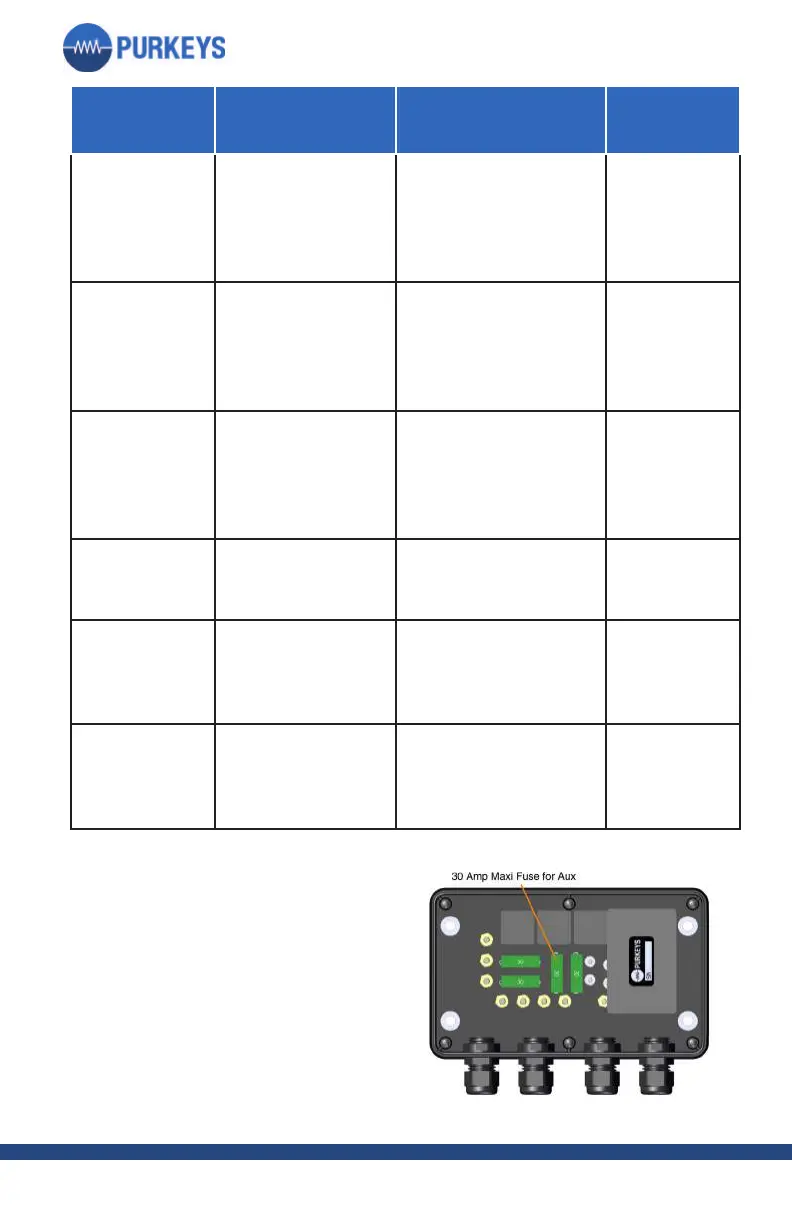

fuse (see Figure 16 for AUX
fuse location).
Figure 16
LED STATUS CONDITION ACTION NEEDED REFERENCE
Solid Green
Charging with
AUX as source.
Verify that liftgate
battery is charging
(see Charging
Diagnostics section
on page 19).
Slow
Flashing
Orange
Input voltage
from the AUX of
the 7-way has
dropped to less
than 12.4 volts.
Determine cause
for low voltage
condition and
repair.
Ref #10
Slow
Flashing
Green
Input voltage
from AUX
of 7-way is
between 12.4
and 13.8 volts.
Determine cause
for low voltage
condition and
repair.
Ref #10
Rapid
Flashing
Orange
Blown fuse on
the AUX circuit.
Repair the circuit
and replace the
fuse.
Ref #9
No LED
No voltage
from the AUX
of the 7-way
connection.
Determine where
the problem exists
and repair or
replace the circuit.
Ref #10
Green, then
Toggling
Orange and
Repeating
Excessive
voltage drop.
Replace or repair
the source power
and ground wire
harness.
Ref #11
