Purkeys SELECT - Page 12

10
REFERENCE #3
Rapid Flashing Orange LED:
Blown Fuse on the stinger
circuit. Replace the fuse

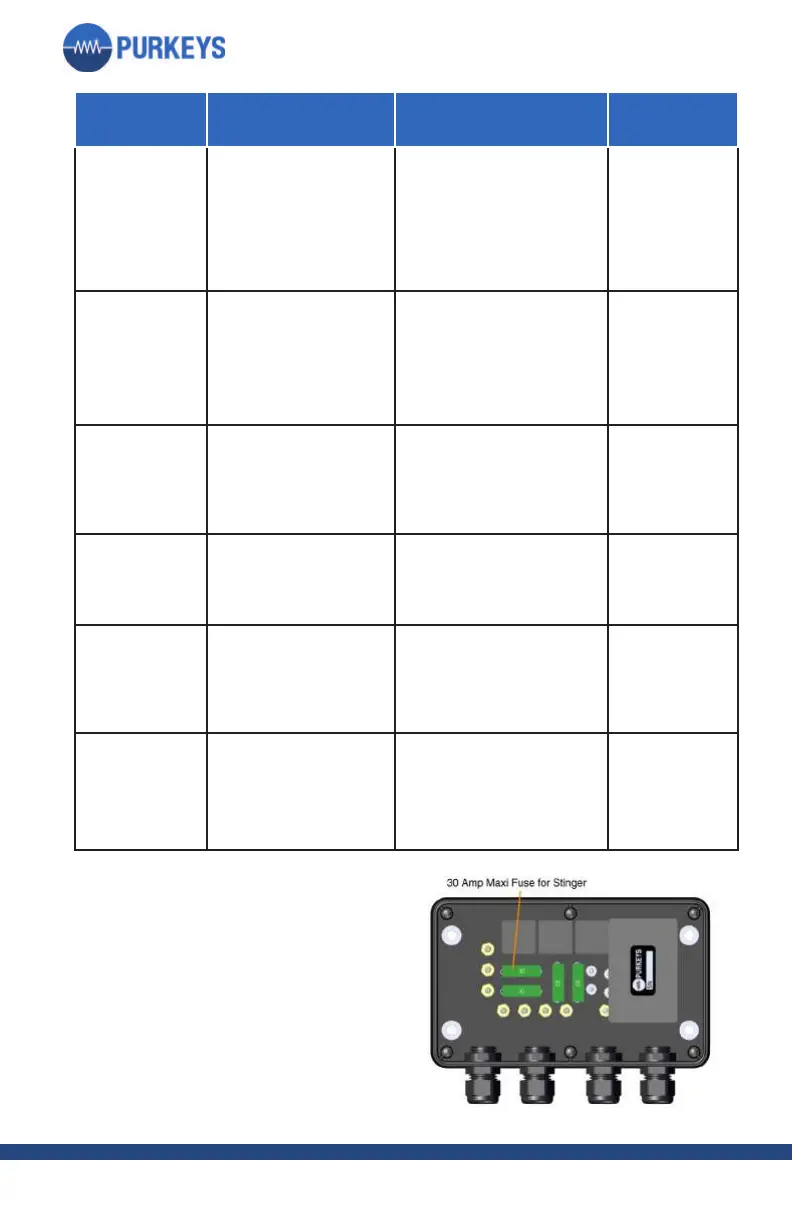

(see Figure 8 for stinger fuse
location).
Figure 8
LED STATUS CONDITION ACTION NEEDED REFERENCE
Solid Green
Charging with
stinger as
source.
Verify that liftgate
battery is charging
(see Charging
Diagnostics section
on page 19).
Slow
Flashing
Orange
Input voltage
from the stinger
cord has dropped
to less than 12.4
volts.
Determine cause
for low voltage
condition and
repair.
Ref #4
Slow
Flashing
Green
Input voltage
from stinger cord
is between 12.4
and 13.8 volts.
Determine cause
for low voltage
condition and
repair.
Ref #4
Rapid
Flashing
Orange
Blown fuse on
the stinger circuit.
Repair the circuit
and then replace
the fuse.
Ref #3
No LED
No voltage from
the stinger cord.
Determine where
the problem exists
and repair or
replace the circuit.
Ref #4
Green, then
Toggling
Orange and
Repeating
Excessive
voltage drop.
Replace or repair
the source power
and ground wire
harness.
Ref #5
