3000 EXPRESS
Chapter 8:
VENTILATION SYSTEM
8.1 Cabin Ventilation
Ventilation to the cabin area is provided by three deck hatches and opening port windows.
Port Windows
The port windows are secured by cam action locks. The locks
should be adjusted so they are tight enough to seal the windows
in the closed position, but not so tight that they break the plastic.
Deck Hatches
The three deck hatches are supported in the open position by
an adjustable hatch adjuster. To close a hatch, loosen the hatch
adjuster and lower the hatch. Secure in the closed position with
the two cam levers on the inside of the hatch.
Head Compartment
Ventilation to the head compartment is provided by an opening port window. The port window
is secured by cam action locks. The locks should be adjusted so they are tight enough to seal the
window in the closed position, but not so tight that they break the plastic.
8.2 Windshield Ventilation
The windshield is equipped with an opening vent panel on each side
of the windshield. To open the vent, release the locking T-handles and
open the vent to the desired position. Lock the vent in place by turning
the T-handles 1/4 turn. The friction of the T-handle in the guide will
hold the vent in that position.

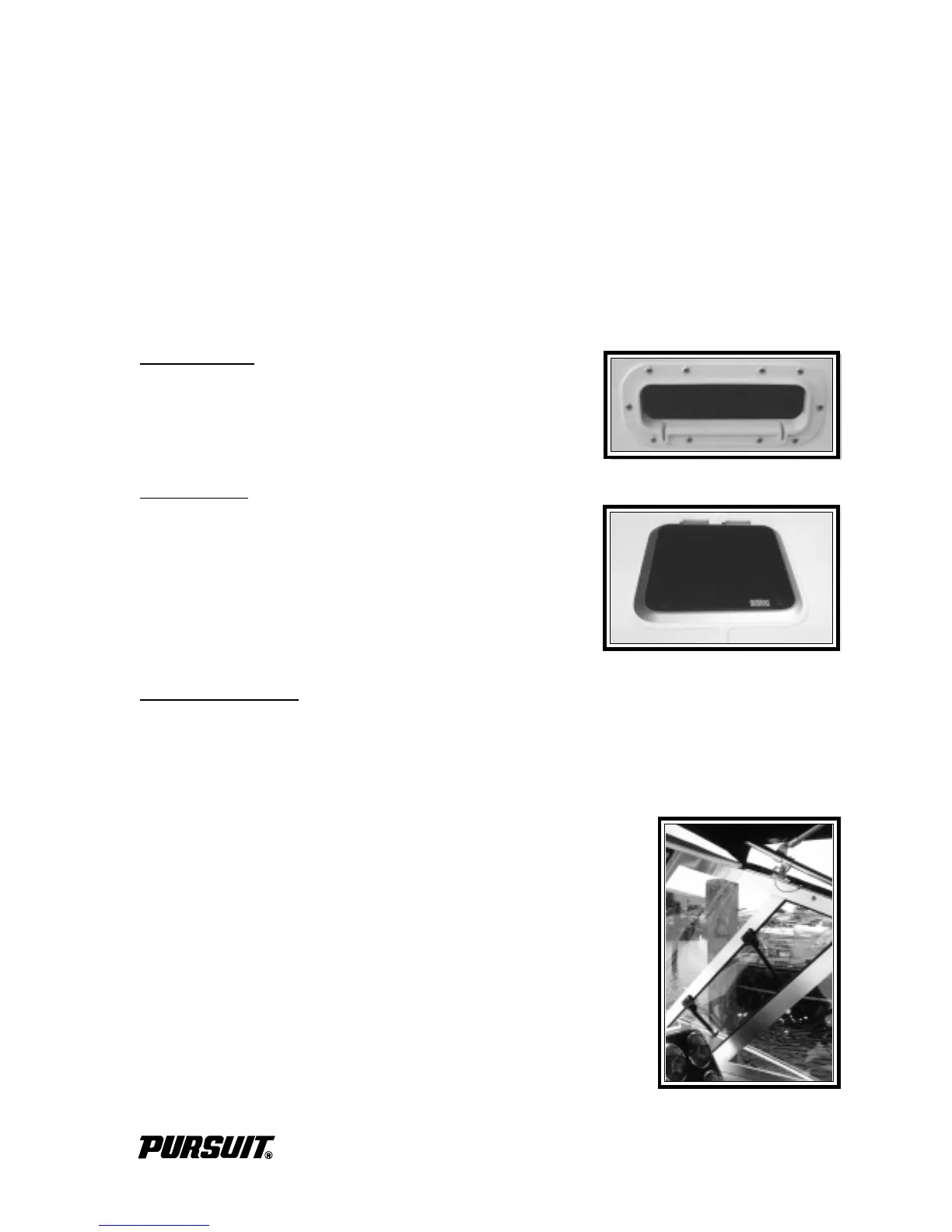

Opening Port Window
Forward Deck Hatch
8-1
Windshield Vent
