Section 4 Electrical System
DC235 / DC265
Battery Switches
A single battery switch controls the engine
and house batteries. The engine and house
batteries can be paralleled by switching the
battery switch to "combine batteries." Cur-
rent is supplied to the automatic float
switches for the bilge pumps, and the stereo
memory, when the batteries are connected
and the battery switches are "OFF".
4.3 Main Breakers/Helm
Electronics
Electronics Main
This is reserved for electronic accessories
installation. An electronic bus is located
behind the helm.
Helm Main (DC265)
Supplies the 12-volt current to helm panel.
! CAUTION
DO NOT operate the boat with the
engine battery switch in the combine
batteries position.

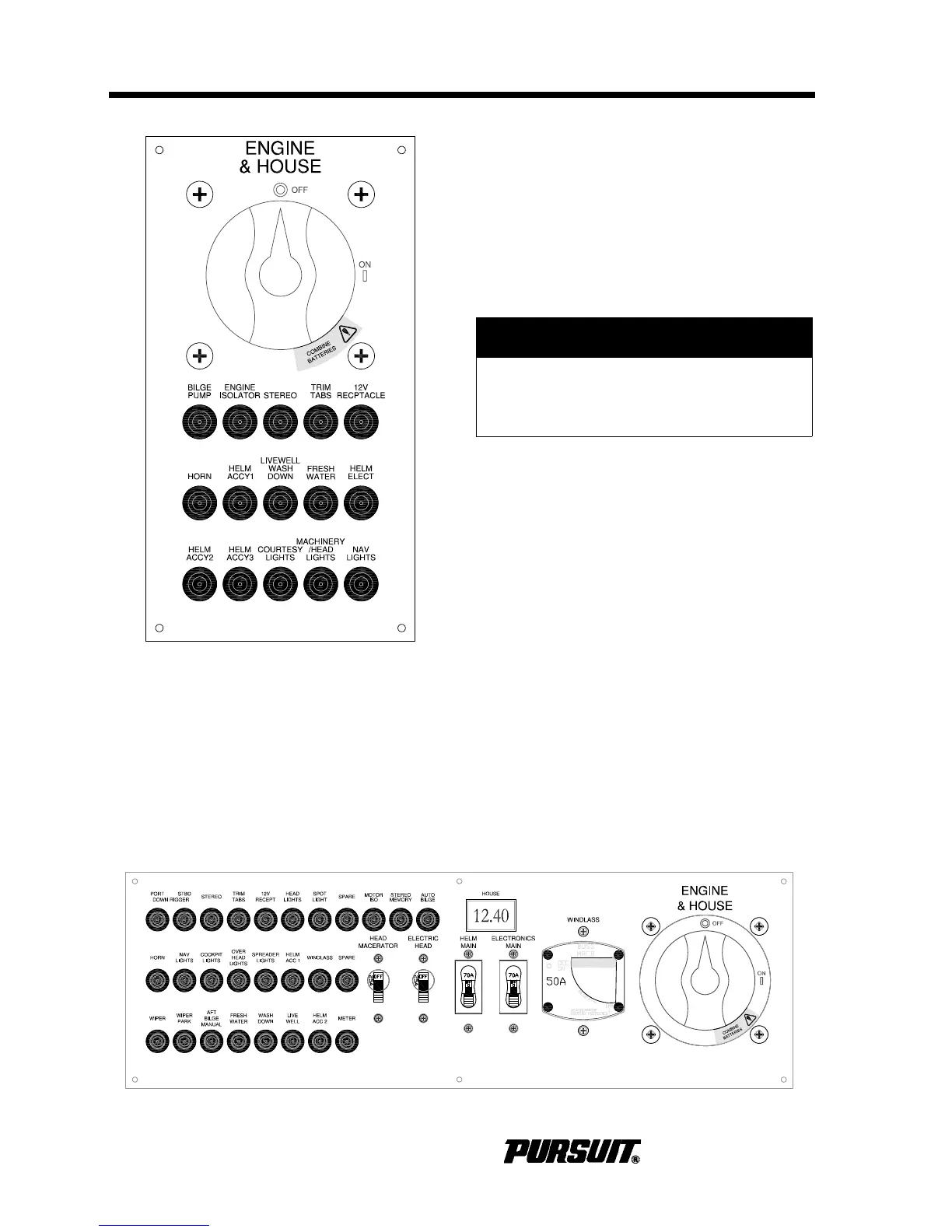

Main Distribution Panel (MDP DC235 / DC235 / DC265)
Main Distribution Panel DC265
Main Distribution Panel DC235
