5
Installation Continued
second will be heard. Hold the reset button down for
approximately 5-8 seconds until you hear a continuous
tone. At this point release the button. The 1 year lamp
timer has just been reset.
The above procedures are followed for the 1 year UV
lamp replacement interval to reset the control box 1
Year Lamp Timer.
UV lamp Detector and Timer circuit board Lamp
Operation and Alarm features:
• UV System OK – Green LED will flash every 5 -
10 seconds During Normal Operation.
• 30 Days remaining on Lamp Life – Flashing
Yellow LED with an intermittent audible tone.
• End of Lamp Life- Flashing Red LED with an
intermittent audible tone.
• Lamp Out- Continuous Red LED with a
continuous audible tone.
• If your UV System has a 120Vac Normally Closed
Solenoid Valve or Remote Alarm connected to the
UV Unit plug-in connection, this will activate at
End of Lamp Life or Lamp Out alarm conditions.
To Silence the Audible Alarm with Snooze Button:
1. 30 Days remaining on Lamp Life Alarm - Push reset
button – Silences the audible tone for two weeks
while the Yellow Led continues to Flash. (You can
Silence audible alarm 2 times Max.) You have up to 30
days to replace the lamp. Service Unit - Replace the
UV Lamp within 30 Days.
2. End of Lamp Life Alarm - Push reset button-
Silences the audible tone for one week while the RED
LED continues to flash. (You can Silence audible
alarm 4 times Max.)
3. Service Unit Immediately - Replace the UV Lamp.
4. Lamp Out Alarm- Push reset button- Silences the
audible tone for one week while the continuous Red
LED stays on. (You can Silence audible alarm 1 time
only.)
5. Service Unit Immediately - Replace the UV Lamp.

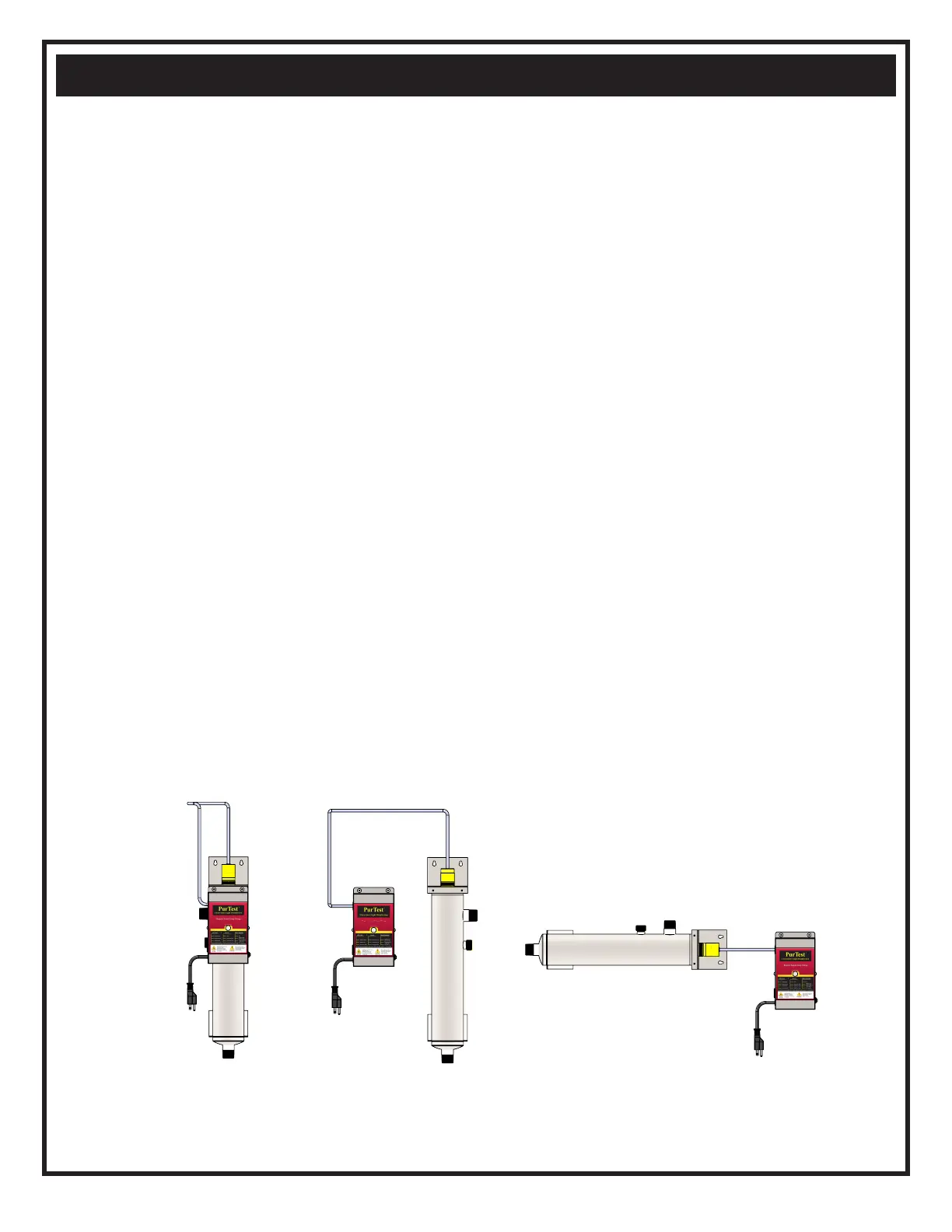

Option A
Standard Control Box
& UV Chamber Mounting
Option B
Remote Control Box
& UV Chamber Mounting
Option C
Remote Control Box
& UV Chamber Mounting
Mounting Options:
