PurTest PT-8 - Installation Diagram and Parts; System Flow Diagram; Parts Breakdown Diagram

6

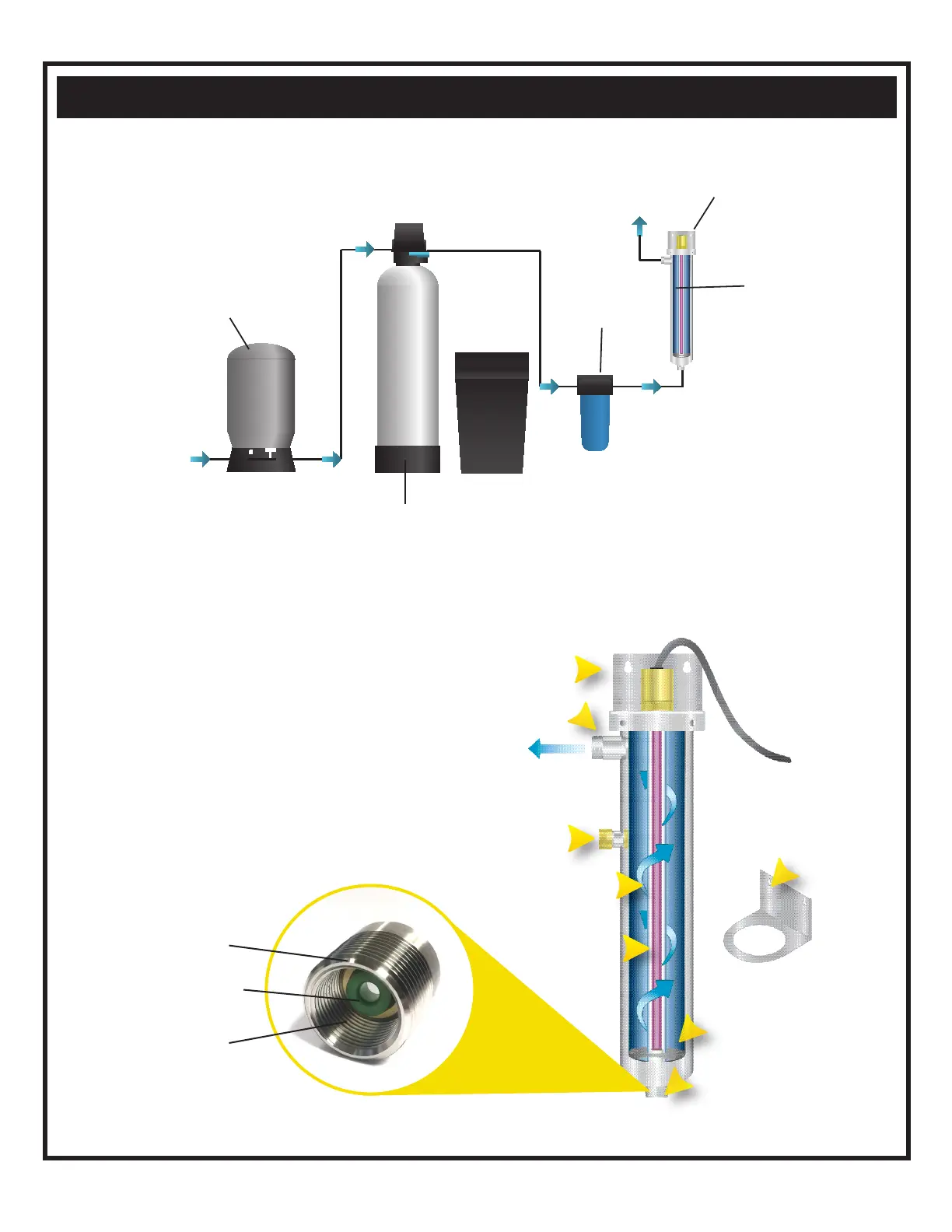

Parts Breakdown:
1. Mounting Bracket
2. Outlet
3. Site Port
4. Quartz Sleeve
5. UV Lamp
6. Inlet
7. Quartz Sleeve Stabilizer
8. Optional Bottom Mounting Bracket
1
2
6
7
4
3
5
8
1” MNPT
Flow Control
3/4” FNPT
Installation Diagram
Pressure Tank
(well systems)
Water Softener
(Water Filter Treatment Equipment)
Pre-Filter Cartridge
PT-UV Chamber
UV Lamp
& Quartz Sleeve
