92009-60 Supplement
PT — 11/15/18 Page 2 of 3 92009-60 Supplement
3. Remove tail lights by removing (2) T15 torx screws inside bed. Pull tail lamps straight out to release
clips. Disconnect wiring harness by pushing red lever away from light housing and then depressing
black clip. Twist out halogen back-up bulbs
4. Cut 4 pin trailer plug off of Blade light bar, making the cut close to the plug. Route yellow, brown,
black, and white wires to driver’s side tail lamp. Do not cut the red wire coming from the Blade logic
box.
5. Route the green wire from the Blade logic box to passenger side tail lamp.
6. Connect the following wires wire crimpers and the provided Scotchlock splices:

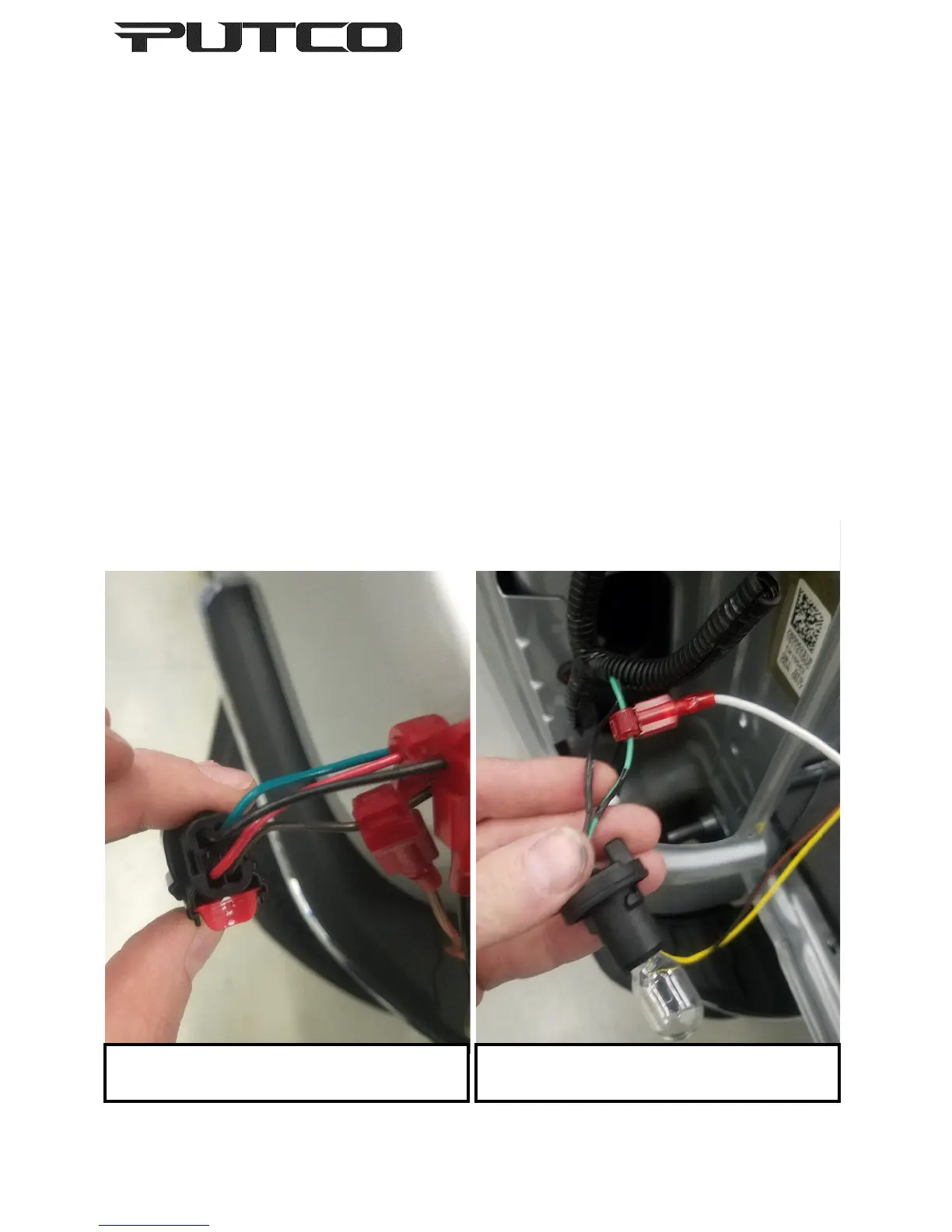

Figure 3: Reverse wire hooked to halogen back-
up bulb plug
Function Truck Wire Color Blade Wire Color
Left Turn Signal Green wire on driver’s side plug (Figure 2) Yellow
Right Turn Signal Green wire on passenger’s side plug Green
Running Lights Brown wire on driver’s side plug Brown
Ground Black wire on driver’s side plug Black
Reverse Light green wire on halogen bulb plug (Figure 3) White
Figure 2: LED tail light plug
