PVI Industries POWER VT PLUS - User Manual

42 pages

Save Page as PDF

To Next Page

PV500-44U 06/12

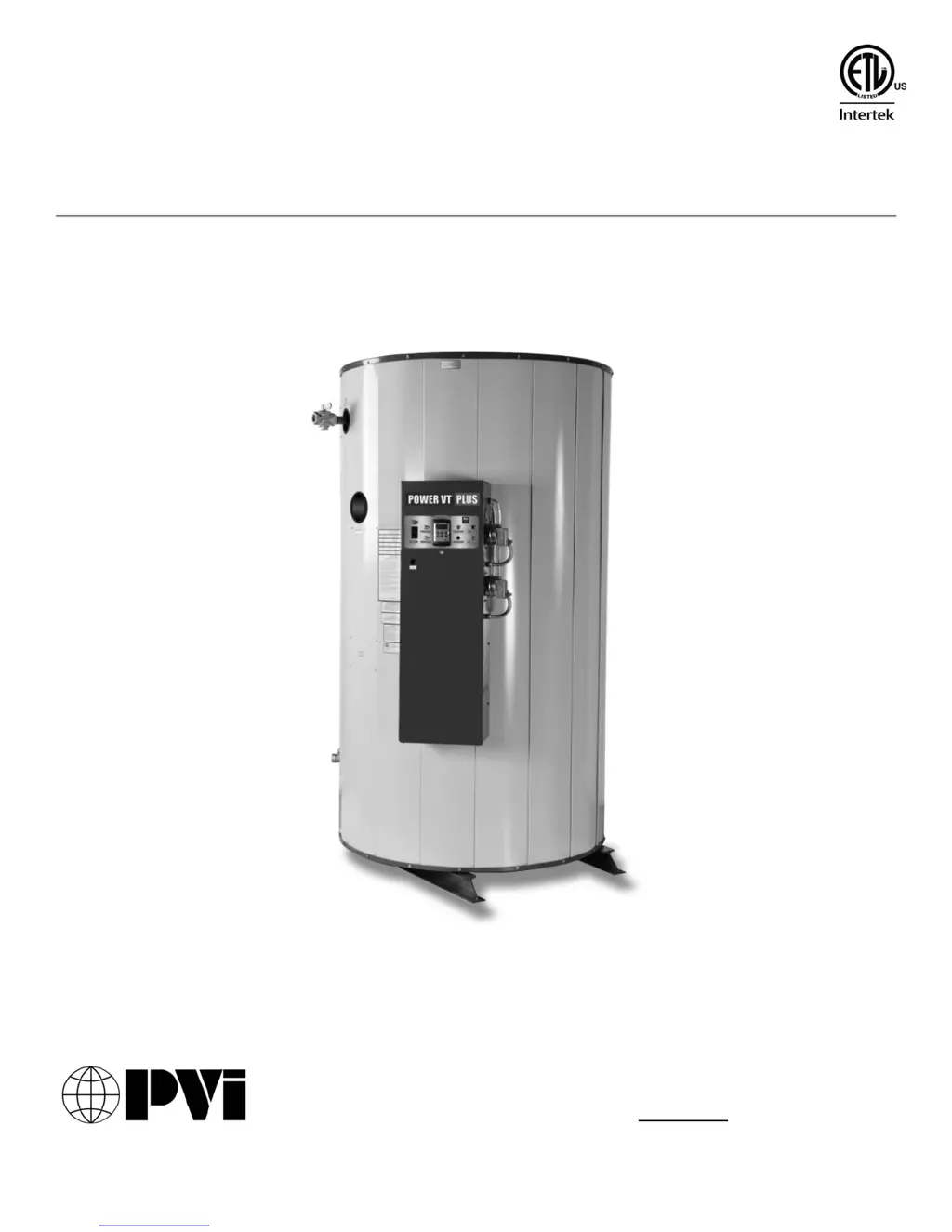

INSTALLATION & MAINTENANCE MANUAL

POWER VT



PLUS WATER HEATER

MODELS (40, 50, 75, 90, 100) LX 125 A-PVIF

MODELS (50, 75, 90, 100) LX (250, 300) A-PVIF

Installation and service must be performed by a qualified service installer, service agency or the gas supplier.

IMPORTANT: THIS MANUAL CONTAINS INFORMATION REQUIRED FOR INSTALLATION, OPERATION AND

MAINTENANCE OF THIS EQUIPMENT. READ AND FOLLOW THE INFORMATION IN THIS MANUAL AND ALL OTHER

PROVIDED INSTRUCTIONS, LABELS AND MARKINGS BEFORE INSTALLING, OPERATING OR SERVICING THIS UNIT.

TO THE INSTALLER: After installation, these instructions must be given to the equipment user or left near the appliance.

SPECIAL INSTRUCTIONS TO THE OWNER: Retain this manual for future reference. These instructions contain

important information that will help you in maintaining and operating this appliance.

PVI INDUSTRIES, LLC - Fort Worth, Texas 76111 - Web www.pvi.com - Phone 1-800-433-5654

Main Page

Questions and Answers

A
Alexander WilsonNov 9, 2025
What to do if my PVI Industries Water Heater has a starting failure?
- M
  Mark BartlettNov 9, 2025
  If your PVI Industries Water Heater fails to start, begin by checking the power supply, including the fuse and circuit breaker, and verify the voltage at the 120/24V step-down transformer. Then, check if the on-off switch is lighted. Ensure that the operating temperature control is set higher than the current water heater temperature. Inspect the flame safeguard control for a bad ground or control, replacing it if needed. Verify that the combustion air blower fan connection terminals on the flame control are closed. Check for 24V at field access terminal C2, as a remote interlock may be open. Also, the fan VFD may be defective, verify proper voltage. Check the air-proving switch contacts are closed and check for 24V at the N.O. and common side of air switch. Check for proper blower pressur...
