PVI VeCOAX PIXEL - Device Layout; Status Indicator Lights

Pro Video Instruments
VeCOAX PIXEL 720p HDMI ATSC/QAM RF Modulator Manual 12
volt Version
1

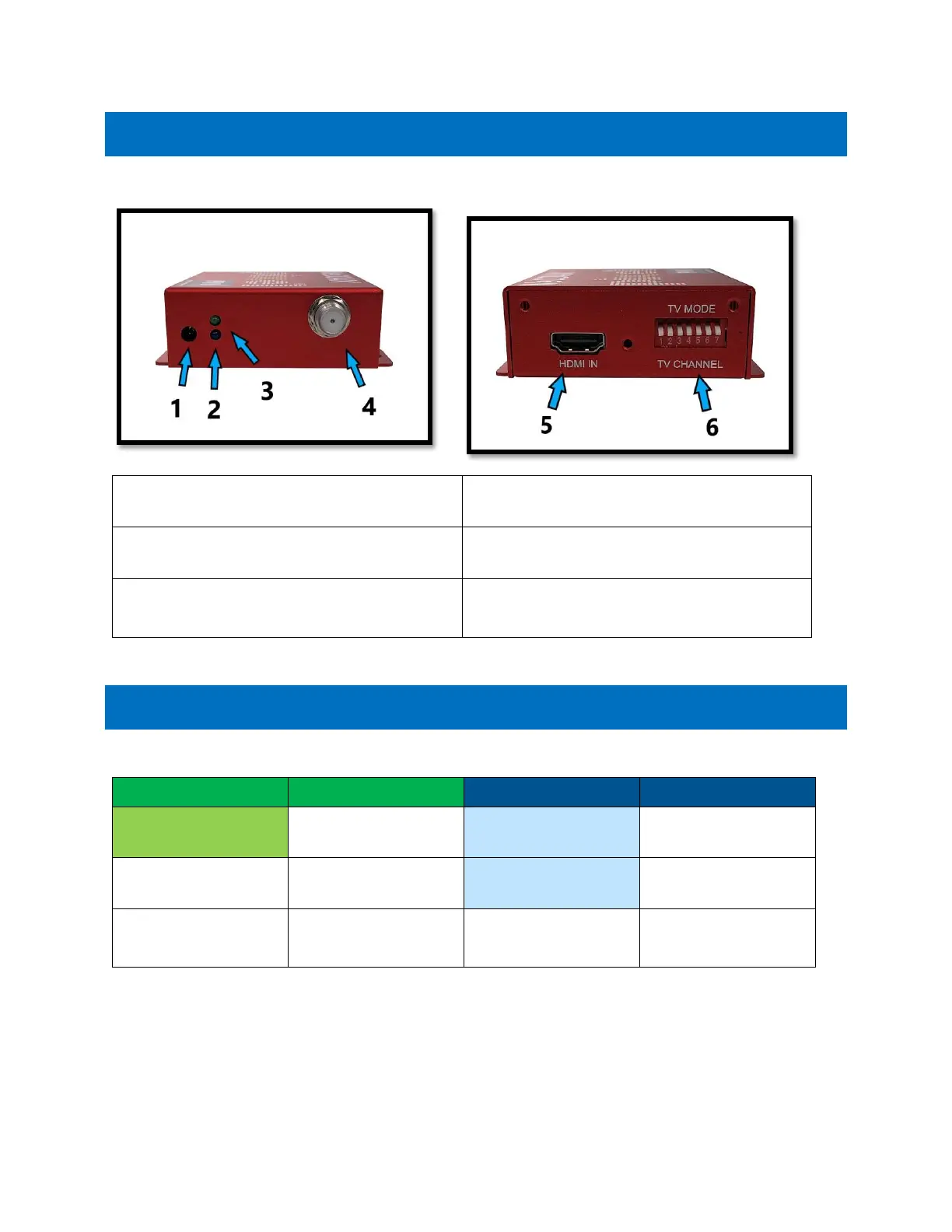

DEVICE LAYOUT
1) Power Adapter Input (12V DC)
4) RF Coaxial Cable Output Connector
2) BLUE On-Air Indicator LED
5) HDMI Input
3) GREEN Power Indicator LED
6) Channel Selector Dipswitch
STATUS INDICATOR LIGHTS
GREEN POWER LED
BLUE ON-AIR LED
SOLID
POWERED ON
SOLID
NO HDMI DETECTED –
TEST PATTERN ONLY
OFF
NO POWER
BLINKING
BROADCASTING HDMI
INPUT
OFF
NOT BROADCASTING
