Pye Video E7A02UD - Page 25

1-10-3

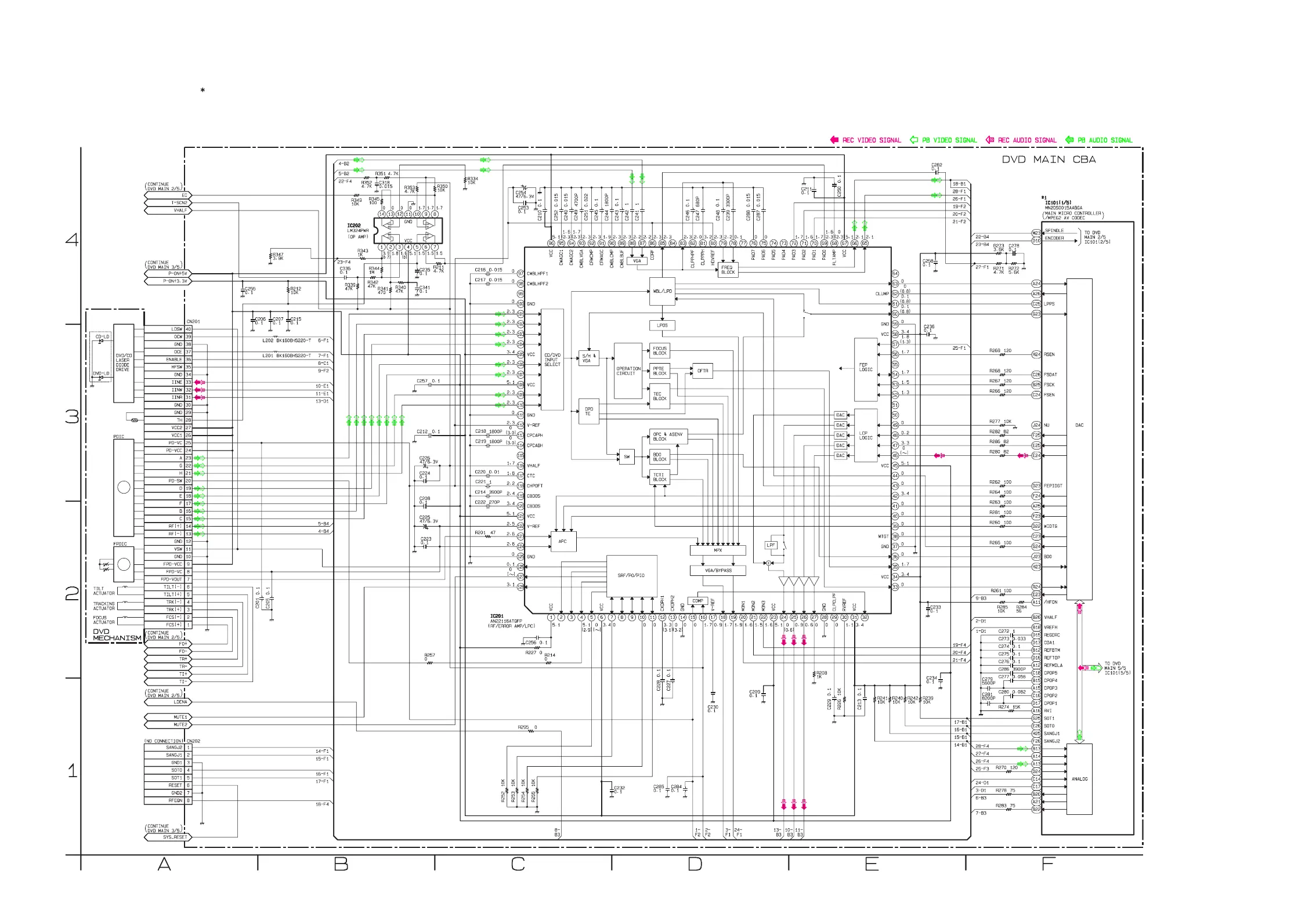

DVD Main 1/5 Schematic Diagram
E7A02SCD1
The order of pins shown in this diagram is different from that of actual IC101.
IC101 is divided into five and shown as IC101 (1/5) ~ IC101 (5/5) in this DVD Main Schematic Diagram Section.
1 NOTE:
