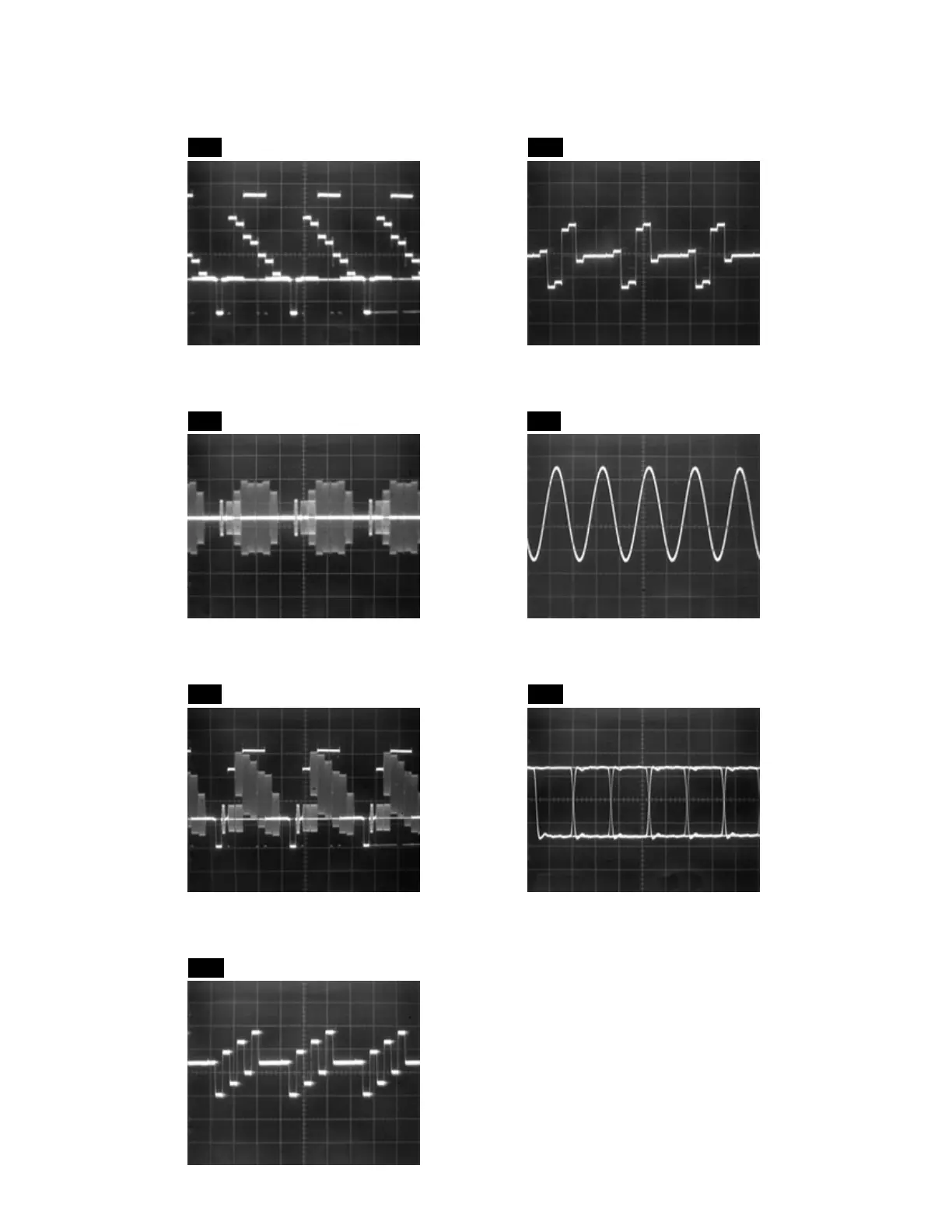

Pye Video E7A02UD - Waveforms

1-11-1
WF6
AUDIO(L)-OUT
Pin 14 of CN1101
1V 0.5ms
WF1 Pin 24 of CN1101
WF3 C1418 PLUS LEAD
WF4
VIDEO-Cb
Pin 28 of CN1101
0.2V 20 µ sec
WF5
VIDEO-Cr
Pin 26 of CN1101
0.2V 20 µ sec
SPDIF 1V 0.1
µ sec
WF7 Pin 28 of CN1051
WF2 Pin 22 of CN1101
VIDEO-Y 0.2V 20 µ sec
VIDEO-C 0.2V 20
µ sec
VIDEO-CVBS 0.5V 20
µ sec
NOTE:
Input: COLOR BAR SIGNAL
(WITH 1KHz AUDIO SIGNAL)
WAVEFORMS
R3NWF
