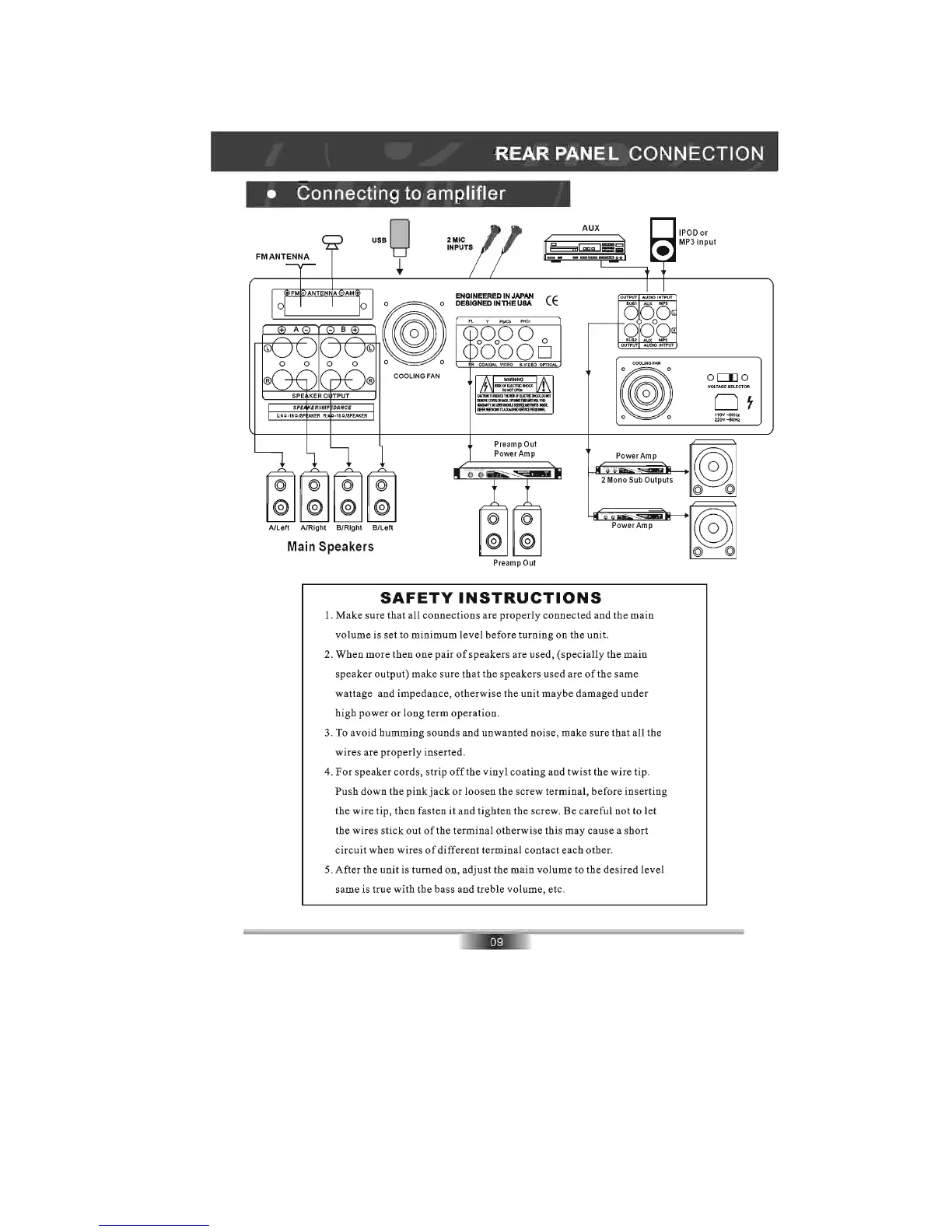

REAR PANEL
CONNECTION
• Connecting
to
amplifier
COOLING FAN
AlLeft AlRIght B/Rlght B/Left
Main
Speakers
ENQINEERED
IN
JAPAN
DE81QNED
IN
THE
USA
© ©
® ®
Preamp Out
CE
SAFETY INSTRUCTIONS
~
PowerAmp
.......
•
~
2 Mono Sub Outputs
~~
PowerAmp
1.
Make sure that all connections are
properly
connected and the main
volume is set to minimum level before turning on the unit.
2.
When
more then one
pair
of
speakers are used, (specially the
main
speaker output) make sure that the speakers used are
of
the same
wattage and impedance, otherwise the unit maybe damaged
under
high
power
or long term operation.
3.
To
avoid humming sounds and unwanted noise, make sure that all the
wires are
properly
inserted.
4.
For
speaker cords, strip
offthe
vinyl coating and twist the wire tip.
Push
down the
pinkjack
or loosen the screw terminal, before inserting
the wire tip, then fasten it and tighten the screw.
Be
careful not to let
the wires stick
out
of
the terminal otherwise this may cause a short
circuit when wires
of
different terminal contact each other.
5. After the
unit
is turned on, adjust the
main
volume to the desired level
same is true with the bass and treble volume, etc.
o
[I]
0
Of
110V-80Hz
220V-50Hz
~
~
To Next Page
