Pyle Hydra PLMRMP2A User Manual

INPUT Stereo RCA audio input for connecting other audio devices
VOLUME CONTROL Plug for the waterproof remote volume control. When
installed, this control will turn off the PLMRMP3A Amp when turned all the
way down.
4
5
wire color
Description
Red
Black
Blue
White
Whire/Black
Gray
Gray/Black
Battery (+), 12dc
Barrery (-), Ground
Remote Turn On, 12vdc = ON
CH1 (+)
CH1 (-)
CH2 (+)
CH2 (-)
Green
Green/Black
Purple
Purple/Black
CH3 (+)
CH3 (-)
CH4 (+)
CH4 (-)
5

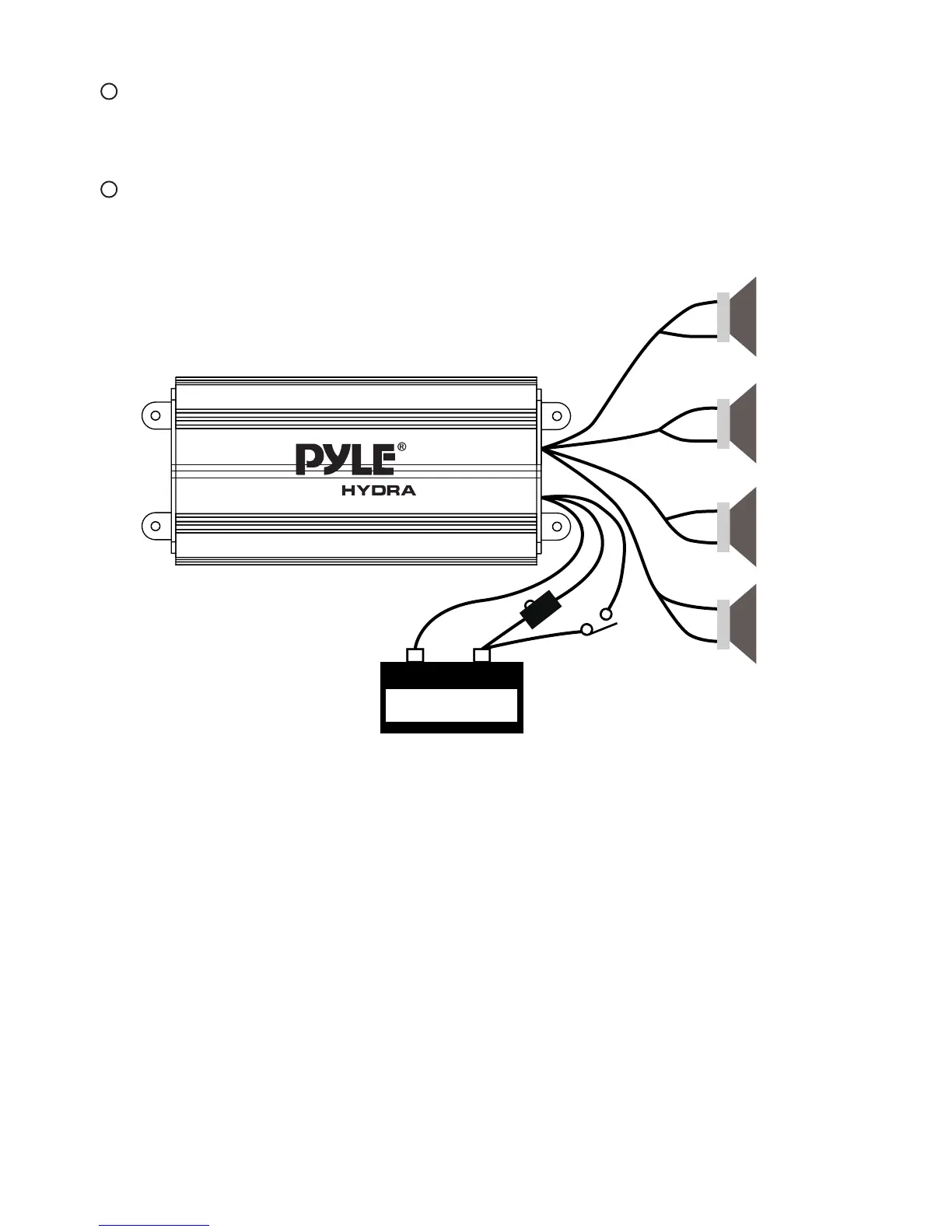

Power and Speaker Wiring
+
-
+
-
+
-
+
-
BATTERY
WHITE
WHITE/BLACK
GRAY
GRAY/BLACK
GREEN
PURPLE
PURPLE/BLACK
GREEN/BLACK
-
+
BLACK
RED
Accessory switch
BLUE
4-8 ohm speakers
Four Channel Marine Power Amplifier
