Pyle PCA3 User Manual

Features:
• Compact and Powerful Mini Amp System
• Connect & Stream Audio from External Devices
• USB/SD/FM playing
• Wireless BT Streaming
• RCA Jack Input
• Push Type Speaker Outputs
• Blue LED Output Level Display
• Power On/O Switch and LED Indicator
• Treble, Bass and Master Volume Controls
• Compatible With Audio/Computerize Devices
(MP3 Players) Via 3.5mm To RCA Converter
• Includes FM Antenna to Improve FM Sensitivity
Wireless BT Connectivity:
• Simple & Hassle-Free Pairing Ability
• Works with All of Today’s Latest Wireless BT Devices
(Smartphones, Tablets, Laptops, computers, etc.)
• Wireless BT Version: 5.0
• Wireless BT Network Name: ‘PYLEUSA’
• Wireless Range: Up to 40’ ft.
What's in the Box:
• Stereo Amplier System • Remote Control • FM Antenna
Technical Specs:
• Power Output: 2 x 75 Watt MAX Power
• Impedance: 15W, 10% RMS @ 8-Ohm
• Signal-to-Noise Ratio: 75dB
• Frequency Response: 20Hz - 20kHz
• Input Sensitivity: 350mV
• T.H.D.: 0.1%
• Signal-to-Noise Ratio: 75dB
• Tone Controls: Bass & Treble: +/-10dB (100Hz/10kHz)
• Fuse: 1.5 A, 250V Fast-Acting (5 x 20mm)
• Power Cable Length: 4.9’ ft.
• Power: 120/240V Voltage Selector, 50/60Hz
• Dimensions (W x H x D): 7.48'' x 2.87'' x 5.39'' -inches

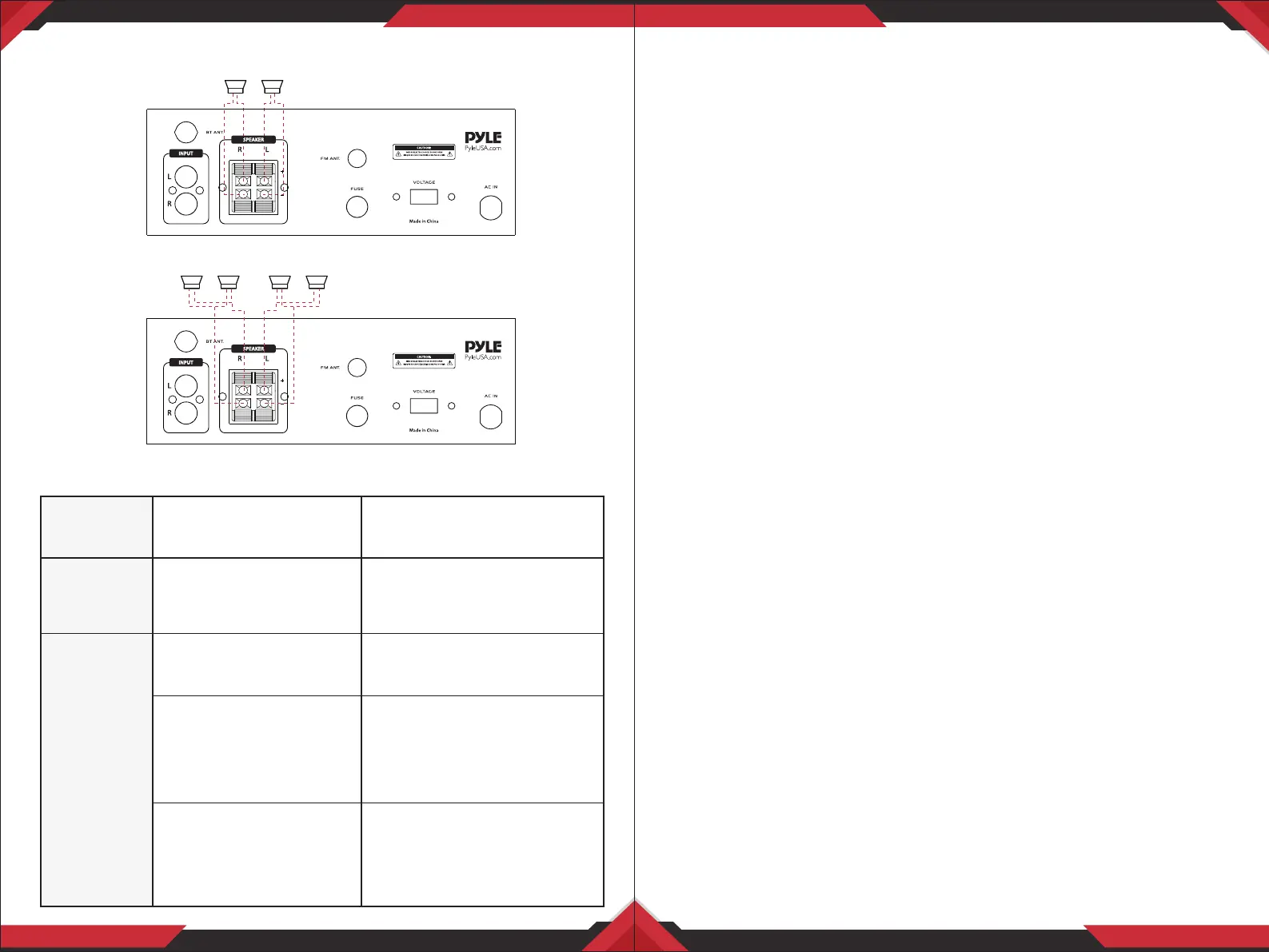

Connecting two 4-8 ohm speakers in stereo mode.
Connecting four 8 ohm speakers in stereo mode.
TROUBLESHOOTING
www.PyleUSA.com
6
www.PyleUSA.com
7
NO POWER
The fuse might be blown
Check the amplier's fuse
and replace it if necessary.
NO SOUND
Sound source or speakers
may not be connected
properly
Check all connections
Master volume control
may be set to a minimum
Adjust the volume control
to a higher setting
The speaker's wire
might have the wrong
impedance
Make sure that the speakers
that you have connected to
the amp are matching in
impedance
The amplier is shutting
down or powering o
Turn the amplier o and let it
cool, make sure that the
amplier is properly ventilated,
and then tum it back on
R L

Pyle PCA3 Specifications

General

Amplifier class	-
Frequency range	20 - 40000 Hz
Input sensitivity	150 mV
Audio output channels	2.0 channels
Peak power per channel	75 W
Signal-to-Noise Ratio (SNR)	75 dB
Total Harmonic Distortion (THD)	0.3 %
RMS power output per channel (4 Ohm)	23 W
Line inputs (RCA)	2
Speakers connectivity type	RCA
Purpose	Home
On/off switch	Yes
Product color	Black
Volume control	Rotary
Connectivity technology	Wired
AC input voltage	120-230 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	137 mm
Width	190 mm
Height	73 mm
Weight	2285 g
