Pyle PCM20A User Manual

Your new PYLE HOME PCM Amplifier
gives you the power and versatility you need in a professional sound system. The
wide frequency response of it handles easily amplification of voice and music. The
talkover function on MIC 1 and one Auxiliary Input on the front panel make it perfectly
in meeting halls, auditoriums, sports events in school, and paging system in offices,
anywhere you need to deliver special announcement with excellent sound.

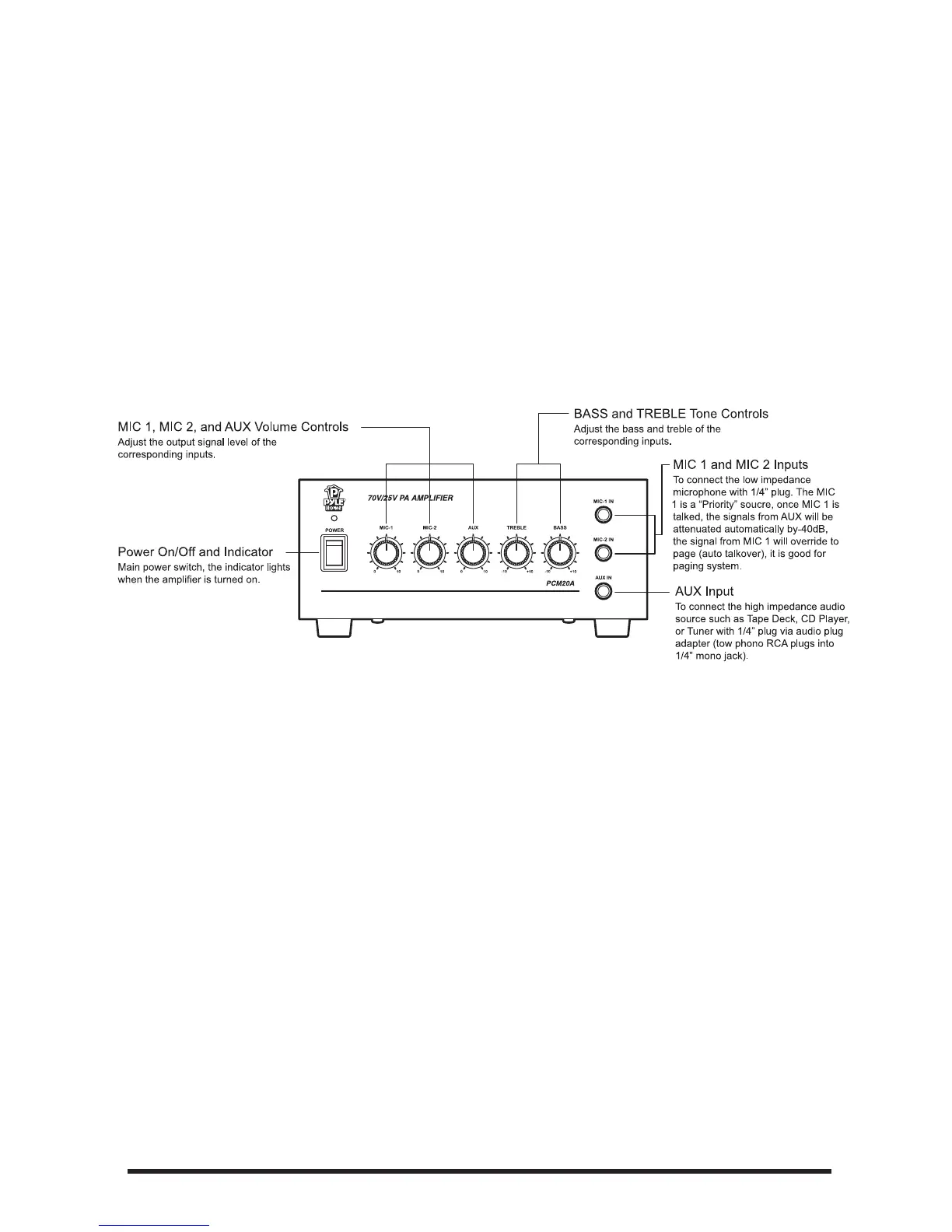

FEATURES AND CONTROLS
Pyle Home PCM20A Manual - 2

Pyle PCM20A Specifications

Power

max output power	40 Watts x 1
power requirement	120V AC 60Hz/230V AC 50Hz
power fuse	T 1.2AL 250V for 110-120V and T 0.63AL 250V for 220-240V

Audio Specifications

input impedance AUX	200mV/50k-Ohm
input impedance MIC 1/MIC 2	1.0mV/600-Ohm
THD at rated output power	1% or less at 1 kHz
frequency response	50 Hz to 15 kHz
signal to noise ratio MIC	55dB
signal to noise ratio AUX	70dB
speaker outputs	8-Ohm, 25V, and 70V line outputs
attenuation level MIC 1	40dB

Tone Controls

treble	+/- 10dB, 10 kHz
bass	+/- 10dB, 100 Hz

Weight and Dimensions

dimensions	7.87 x 3.15 x 5.90 inches (200 x 80 x 150 mm)
weight	4.5 lbs (2.04 kg)
