Pyle PCM30A User Manual

The United Media Solutions PC-Lan based music system.
The Unit will need to be connected with a Network cable - this is how the music unit communicates
channel changes and updates for music and messages.

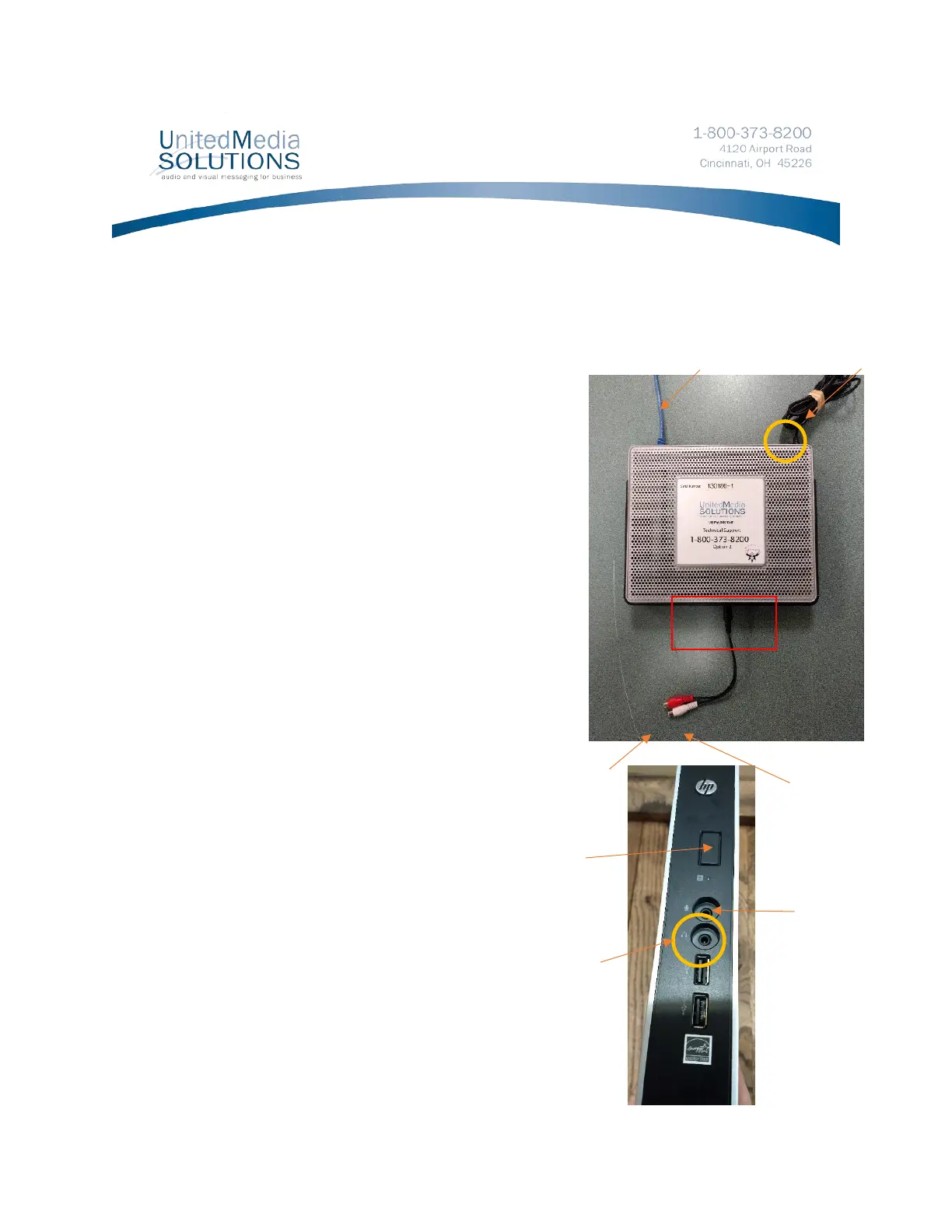

Installing your UMS LAN connected box.
Find the current Sirius System and place the new system nearby.
1. The Sirius system has a network cable plugged into it.
Disconnect the network cable from the Sirius system and plug it
into the new Maestro system.
2. Plug the new power cord to the back of the system and make
sure the power button is turned on. Power button is located on
the front of the system.
3. Detach old music unit by unplugging the connections, being
Sure to keep the audio output cord nearby.
3. Detach audio output cord from the output headphone jack of
the old music player. It will usually have a male RCA or 3.5mm
Headphone connector. This plugs into the headphone jack of the
new UMS unit.
For Technical Support or any questions,
Please call #800-373-8200 Option 2
Network Cable
Power Cord1
Red-
Overhead Music
White
Do NOT Connect
12” Red/White
Cable fits here
(Headphone jack)
See Fig A
for detail
Fig A
McCoys Lumber Install
NEVER TURN OFF
the system using
the Power Button
Mic NOT used
Do NOT Connect

Pyle PCM30A Specifications

Input Impedance

AUX input impedance	50k-Ohm
MIC 1/MIC 2 input impedance	600-Ohm
TEL/PAGE input impedance	600-Ohm

Output Specifications

max output power	60 Watts x 1
speaker outputs impedance	4-Ohm, 8-Ohm, 16-Ohm, 25V, and 70V
monitor output impedance	600-Ohm 1V (head phones) and 8-Ohm 1W (speaker)

Power

power requirement	120V AC 60Hz/230V AC 50Hz
power fuse for 110-120V	T 2AL 250V
power fuse for 220-240V	T 1AL 250V

Weight and Dimensions

dimensions	10.7 x 3.46 x 8.86 inches (272 x 88 x 225 mm)
weight	9.79 lbs (4.44 kg)
frequency response	50 Hz to 15 kHz
