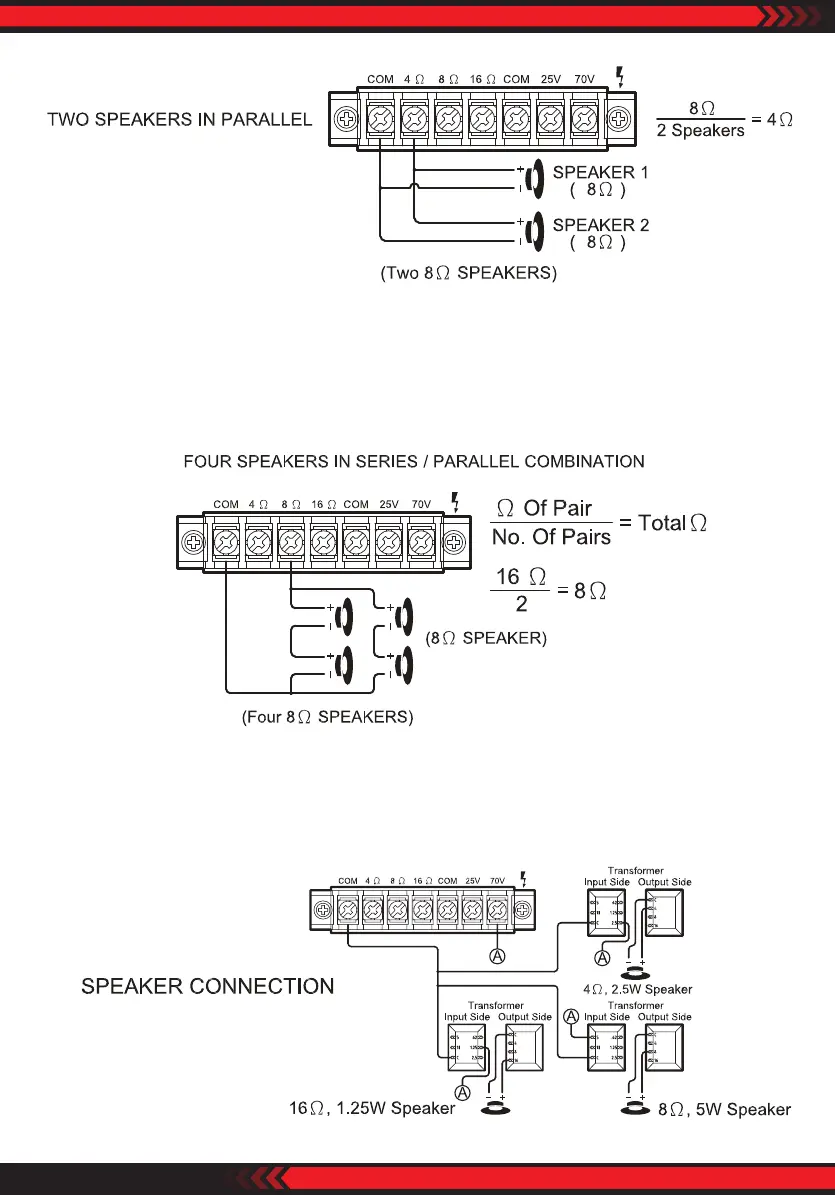

SYSTEM 4: Four Speakers in Series and Parallel
NOTE: Although the description above is for connecting two series pairs of 8 Ohms
speakers in a parallel hook up, you may also select to combine a series pair and a
parallel pair in a parallel hook up, simply be sure you have calculated the total
impedance, and attach the speaker (+) circuit wire to the proper amp terminal.
SYSTEM 5: Connecting Speakers with Transformers
NOTE: When the 25V or 70V constant line voltages are used, a line matching
transformer must be used with each speaker, All transformers must be connected in
parallel, never connect line transformers in series.

Pyle PCM60A Specifications

General

Amplifier class	-
Audio output channels	- channels
Peak power per channel	100 W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	1 %
AC (power) in	Yes
Audio (L/R) in	3
Audio (L/R) out	1
Speakers connectivity type	RCA
Purpose	Performance/stage
Product color	Black
Connectivity technology	Wired
Built-in display	No
AC input voltage	110-220 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	266.9 mm
Width	430 mm
Height	87.8 mm
Weight	7400 g
