Pyle PCM60A User Manual

ww w.PyleUSA.com
7

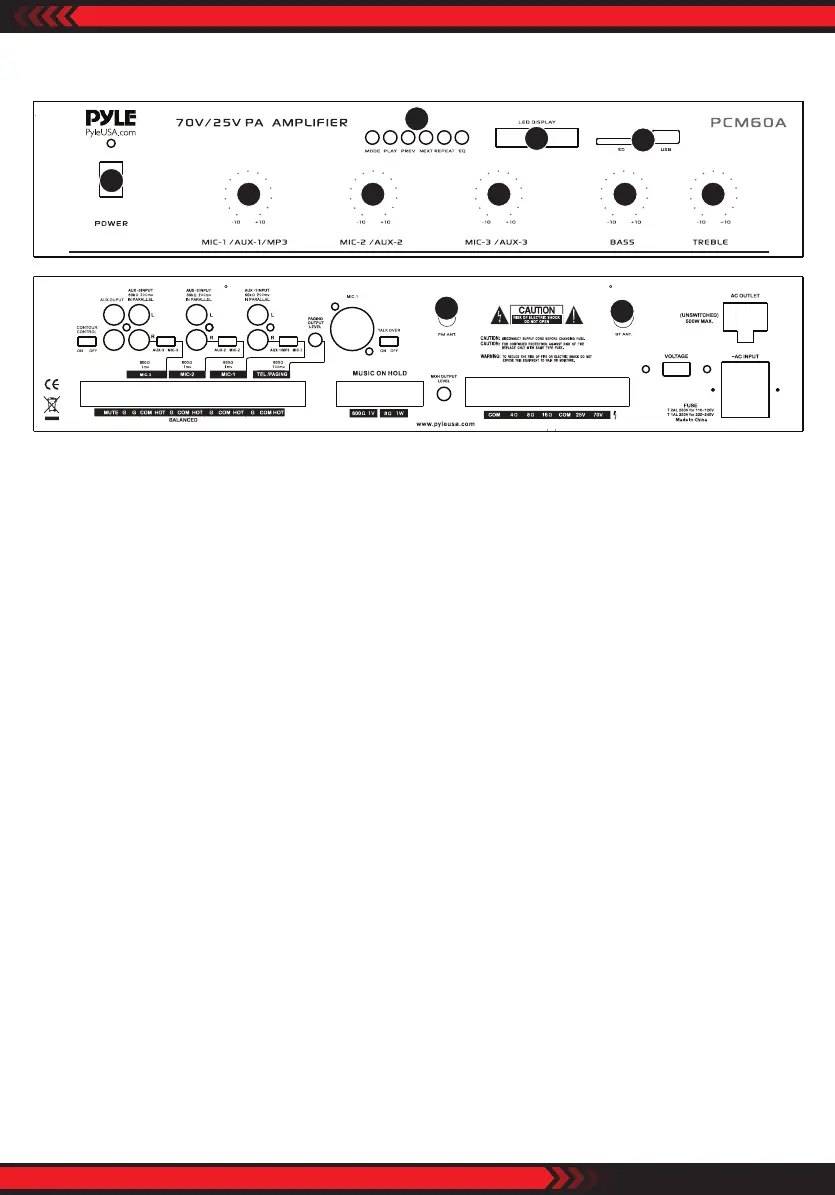

FRONT & BACK PANEL
1. USB/SD Card/Wireless BT Control Console
After inserting a USB ash drive/SD Card into the input terminal, be sure to set
the input selector (13) to USB/SD, then press the mode button to choose between
audio from the USB port, SD Card input, Wireless BT or FM radio. If you want to
use the Wireless BT, check the below steps.
SD Card Reader/USB Port: for using external media on this device, just plug your
SD/USB into these ports.
2. CONTROL BUTTONS: These buttons are only used to control the USB/SD, Wireless
BT and FM functions and doesn't control other functions.
3. LCD Screen: all information regarding external media or this device will be
displayed from this screen.
4. Power Switch: Press this switch to power the unit on and o.
5. MIC-1/AUX-1/MP3 Volume Control Knob: Turn this knob to adjust the volume of
MIC-1/AUX-1/USB/SD/BT/FM
6. MIC-2/AUX-2 Volume Control Knob: Turn this knob to adjust the MIC-2/AUX-2
volume level.
7. MIC-3/AUX-3 Volume Control Knob: Turn this knob to adjust the MIC-3/AUX-3
volume level.
8. Bass Control: Turn this knob to adjust the low frequencies.
9. Treble Control: Turn this knob to adjust the high frequencies.
10. FM ANTENNA Jack: Connect the FM antenna.
11. BLUETOOTH ANTENNA: This antenna extends the audio Bluetooth operational
distance.
CONTROL PANEL BUTTON
A. These buttons are only used to control the USB/SD, Wireless BT and FM functions
and doesn't control other functions.
B. MODE BUTTON: Press this button to select one from USB/SD mode, FM mode or
Wireless BT play mode. USB/SD mode will be set automatically after turning ON
the unit. Automatically plays mp3 les after inserting a USB ash drive or SD card.
You cannot select AUX, CD and DVD input on this button.
C. Each press of the PLAY/PAUSE BUTTON causes the operation to change from play
to pause or from pause to play in the USB/SD mode or Wireless BT mode.
Press the PLAY/PAUSE BUTTON one time to auto scan all frequencies from
87.5MHz to 108MHz in FM mode. Press the button to auto scan channels when
you use FM radio for the rst time. After stop searching, the unit will auto store all
the radio channels and play from the rst radio channel. You don't need to rescan
every FM radio start up.
D. PREV and NEXT BUTTON: Use these two buttons to select previous, next track or
folder, depending on these dierent modes as below.
• In USB/SD mode: Use to select previous or next track, or use to select previous
or next folder in FOLDER working mode.
• In Wireless BT mode: Use to select previous or next track.
• In FM mode: Use to select previous or next radio channel.
STEPS FOR CONNECTING WITH WIRELESS BT DEVICE
A. Press MODE button under the ID3 display screen and enter into bluetooth mode.
B. Search for the bluetooth device and nd the bluetooth name “Pyle Speaker”
C. Select the “Pyle Speaker” bluetooth name and wait for the device to pair.
The screen will display “SEARCHING”.
D. The unit will make a sound conrming that the devices have successfully paired.
E. Once paired you can play music from your bluetooth device. You can also use the
control buttons on the unit to select the tracks from your bluetooth device.
Use the other controls, play/pause, stop, repeat (ALL/SINGLE), previous track & next
track to play audio from the USB ash drive/SD Card or Wireless BT.
1
2
3
4
5 6 7 8 9
10
11

Pyle PCM60A Specifications

General

Amplifier class	-
Audio output channels	- channels
Peak power per channel	100 W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	1 %
AC (power) in	Yes
Audio (L/R) in	3
Audio (L/R) out	1
Speakers connectivity type	RCA
Purpose	Performance/stage
Product color	Black
Connectivity technology	Wired
Built-in display	No
AC input voltage	110-220 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	266.9 mm
Width	430 mm
Height	87.8 mm
Weight	7400 g
