Pyle PCM60A User Manual

ww w.PyleUSA.com
9
SPEAKER CONNECTION
One or more speakers (4, 8 or 16 Ohms) can be connected to the amplier with or
without transformers. However, before you connect any speakers to the amplier,
the total impedance must be calculated in order to avoid damage to the amplier.
A total speaker impedance greater than 16 Ohms or less than 4 Ohms can cause this
damage to occur.

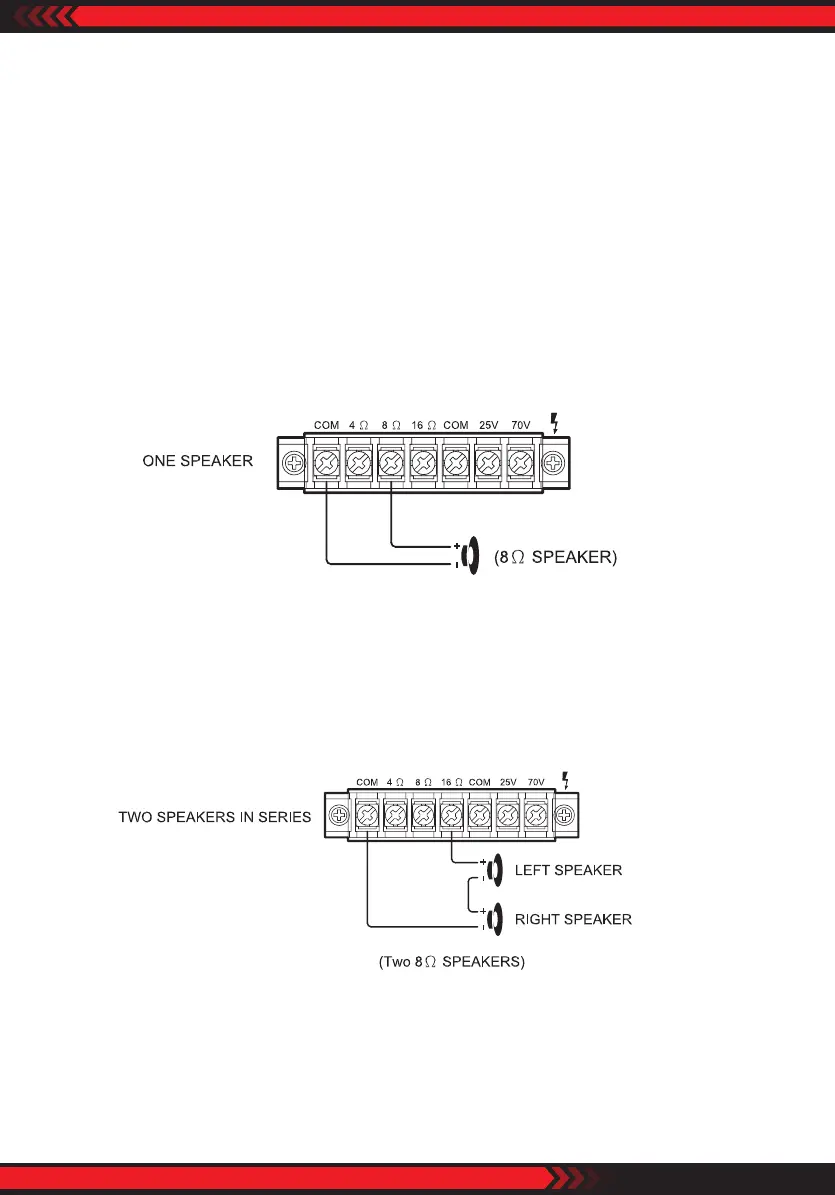

SYSTEM 1: Single Speaker System
NOTE: Connect the speaker (+) to the amplier's 4-Ohm, 8-Ohm or 16-Ohm terminal,
depending on the speaker being used.
SYSTEM 2 : Two (or more) Speakers in Series
NOTE: Connect the speaker (+) to the amplier's 4-Ohm, 8-Ohm or 16-Ohm terminal,
depending on the TOTAL IMPEDANCE of the two speakers. If each speaker has an
impedance of 8-Ohm, the total speaker impedance in this series coguration is 16
ohms.
SYSTEM 3: Two (or more) Speakers in Parallel
NOTE: Connect the speaker (+) to the amplier's 4-Ohm, 8-Ohm or 16-Ohm terminal,
depending on the TOTAL IMPEDANCE of the two speakers. If each speaker has an
impedance of 8-Ohm, the total speaker impedance in this series conguration is 4
ohms.

Pyle PCM60A Specifications

General

Amplifier class	-
Audio output channels	- channels
Peak power per channel	100 W
Signal-to-Noise Ratio (SNR)	- dB
Total Harmonic Distortion (THD)	1 %
AC (power) in	Yes
Audio (L/R) in	3
Audio (L/R) out	1
Speakers connectivity type	RCA
Purpose	Performance/stage
Product color	Black
Connectivity technology	Wired
Built-in display	No
AC input voltage	110-220 V
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	266.9 mm
Width	430 mm
Height	87.8 mm
Weight	7400 g
