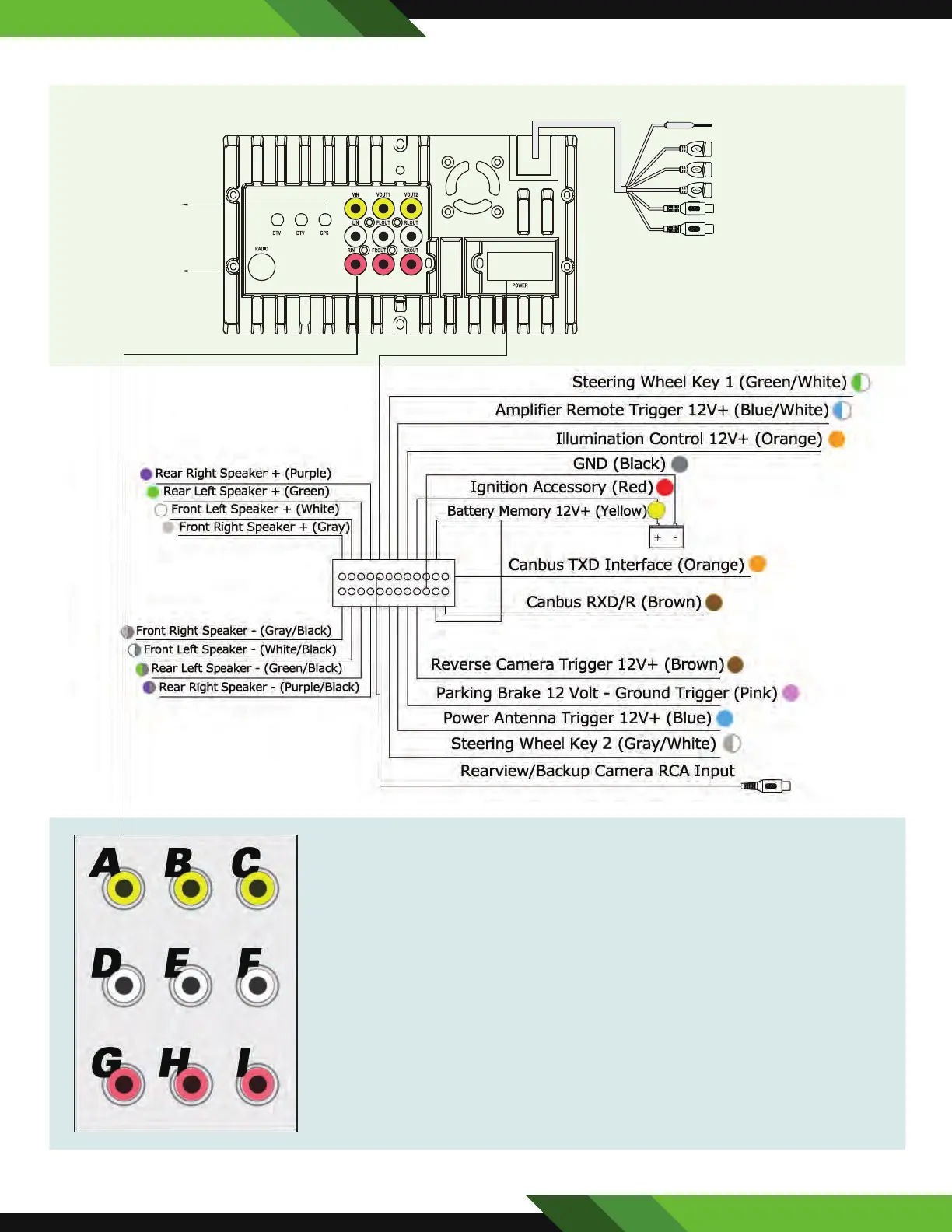

WIRING  BACK PANEL
12
A. Video Input
B. Video Output 1
C. Video Output 2
D. Left Audio Input
E. Front Left Audio Output
F. Rear Left Audio Output
G. Right Audio Input
H. Front Right Audio Output
I. Rear Right Audio Output
GPS ANT
RADIO ANT
3G/USB/DVR
3G/USB/DVR
3G/USB/DVR
BT/MIC
SUBWOOFER OUTPUT
WIFI ANTENNA
