Pyle PLHR78W User Manual

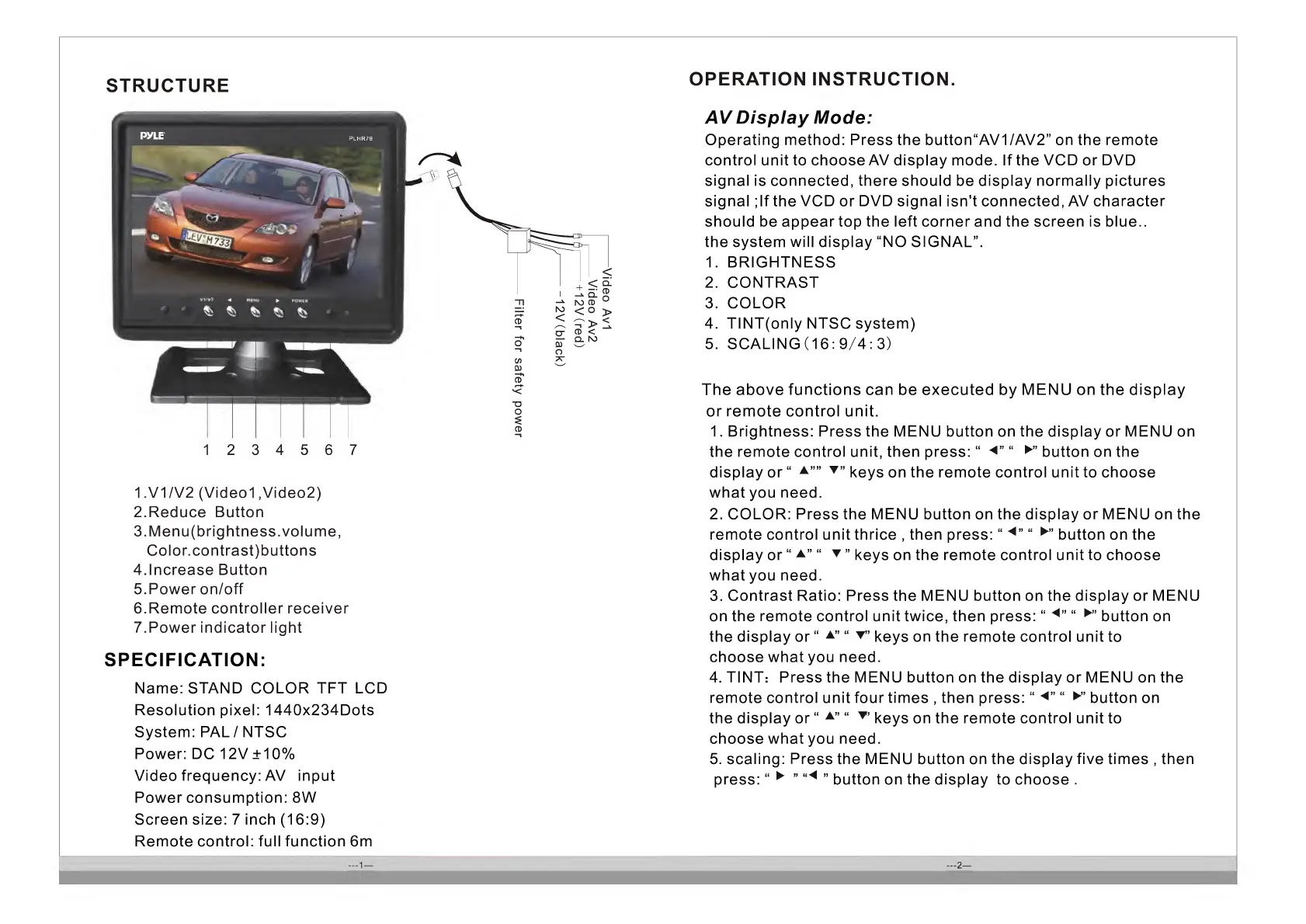

STRUCTURE
1. V 1 / V 2 (Videol ,Video2)
2. R e d u c e Button
3. Menu (brightness, volume,
Color. contrast)buttons
4.Increase Button
5. P o w e r on/off
6. R e m o t e controller receiver
7. P o w e r indicator light
SPECIFICATION:
Name: STAND COLOR TFT LCD
Resolution pixel: 1440x234Dots
System: PAL/NTSC
Power: DC 12V ±10%
Video frequency: AV input
Power consumption: 8W
Screen size: 7 inch (16:9)
Remote control: full function 6m
— 1 —
Filter
for
safety
power
OPERATION INSTRUCTION.
AV Display Mode:
Operating method: Press the button“AV1/AV2” on the remote
control unit to choose AV display mode. If the VCD or DVD
signal is connected, there should be display normally pictures
signal;If the VCD or DVD signal isn't connected, AV character
should be appeartop the left corner and the screen is blue.,
the system will display “NO SIGNAL”.
1. BRIGHTNESS
2. CONTRAST
3. COLOR
4. TINT(only NTSC system)
5. SCALING (16:9/4:3)
The above functions can be executed by MENU on the display
or remote control unit.
1. Brightness: Press the MENU button on the display or MENU on
the remote control unit, then press: “ <’ “ ► ” button on the
display or “ A ”” T ” keys on the remote control unit to choose
what you need.
2. COLOR: Press the MENU button on the display or MENU on the
remote control unit thrice , then press: “ “ ► ” button on the
display or “ “ ▼ ” keys on the remote control unit to choose
what you need.
3. Contrast Ratio: Press the MENU button on the display or MENU
on the remote control unit twice, then press: “ button on
the display or “ “ ▼ ” keys on the remote control unit to
choose what you need.
4. TINT: Press the MENU button on the display or MENU on the
remote control unit four times , then press: “ -4” “ ► ” button on
the display or “ A ” “ T ’ keys on the remote control unit to
choose what you need.
5. scaling: Press the MENU button on the display five times , then
press: “ ► ” ” button on the display to choose .
