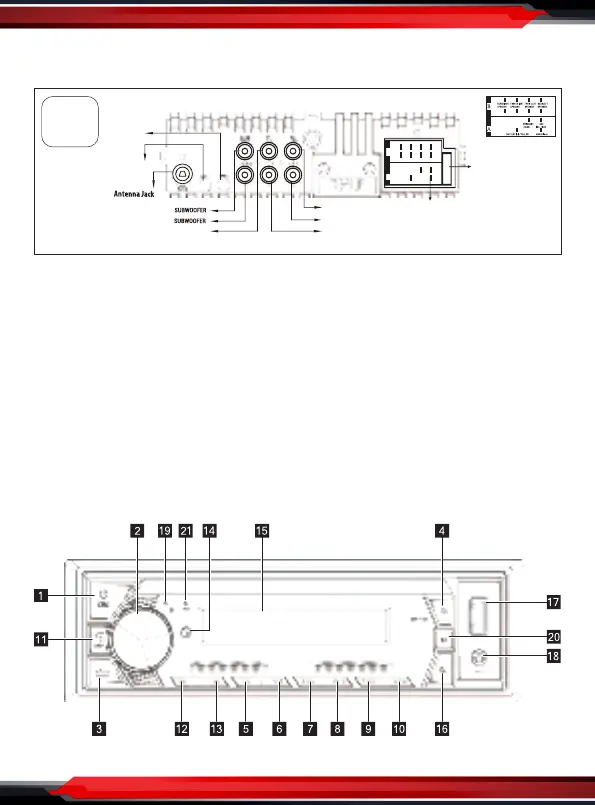

WIRING CONNECTIONS
HARDS FREE PUSH-TO-TALK
PUSH-TO-TALK
• Allows you to access SIRI or GOOGLE voice via Wireless BT.
• Your phone must support SIRI or GOOGLE voice. Once connected to BT, your
phone will ask for access to your contact list.
• Now you are ready to use PUSH-TO-TALK. Press the PUSH-TO-TALK icon.
You are ready to talk. Call "(CONTACT NAME)", the system will call without
having to use your phone.
CONTROL PANEL BUTTONS
15A
Front RCA Output(Left)
Front RCA Output(Right)
Rear RCA Output(Left)
Rear RCA Output(Right)
EXternal MIC
SWC
ANT:RADIO ANTENNA JACK
F-L:Front RCA Output(Left)
F-R:Front RCA Output(Right)
R-L:Rear RCA Output(Left)
R-R:Rear RCA Output(Right)
Power/speaker Connector
FUSE 15A
PRECAUTION
+12V DC
NEGATIVE
EARTH
