Pyle PLMRA420 User Manual

8
9

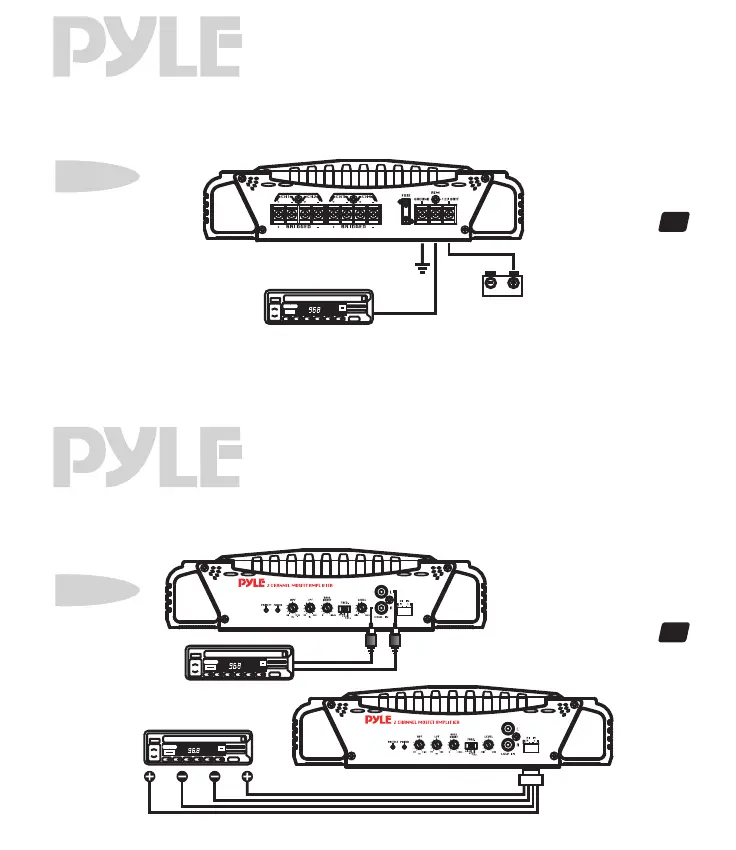

electrical connections
to remote turn-on
+12V
head unit
12V battery
stereo input connections
2 ch amps PLMRA220
using low level inputs
head unit
L/R Audio
Outputs
using high level inputs
PLEASE NOTE! If using high level inputs,
do not use the low level RCA inputs at
the same time!
from speaker terminals
L L RR
head unit
wiring harness
PLMRA220
4 ch amps PLMRA420
PLMRA420

Pyle PLMRA420 Specifications

General

Bass boost	0 - 18 dB
Amplifier class	A/B
Frequency range	15 - 30000 Hz
RMS rated power	250 W
Input sensitivity	250 mV
Audio output channels	4.0 channels
Peak power per channel	1000 W
Signal-to-Noise Ratio (SNR)	95 dB
RMS power output per channel (2 Ohm)	50 W
Audio (L/R) in	1
Speakers connectivity type	RCA
LED indicators	Power
Purpose	Boat
Product color	Blue, White
Volume control	Digital
Connectivity technology	Wired
DC input voltage	12 V
Power protection features	Overload, Short circuit

Weight and Dimensions

Depth	304.8 mm
Width	276.8 mm
Height	68.5 mm
Weight	4762 g
