www.PyleUSA.com
2
To ensure correct operation and avoid damage,
please read this user manual carefully before using this product.
INSTALLATION
Installation Procedures
First complete the electrical connections and then check for correctness.

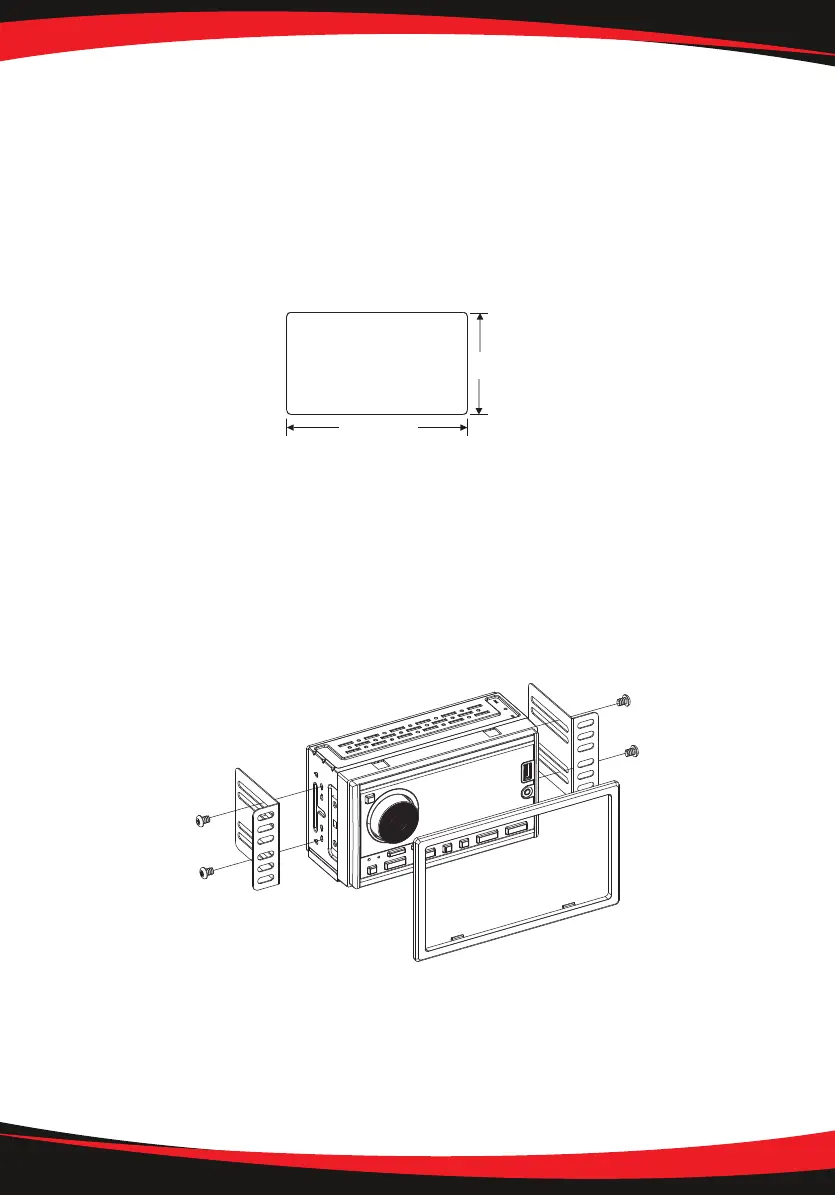

Installation Opening
This unit can be installed in any dashboard having an opening as shown below.
To Install the Car Radio
Be sure you test all connections rst, and then follow these steps to install this unit.
1. Make sure the ignition is turned o, and then disconnect the cable from the
vehicle battery’s negative (-) terminal.
2. Disconnect the wire harness and the antenna.
3. Attach the “L” brackets (2pcs) on the both sides of the car receiver with screws
(M5.5 x 7) as shown as the below gure. The others xing screws that x the
other terminal of the “L” metal bracket, please buy from your dealer according
to the drilling of holes size.
4. Consult with you nearest dealer if installation requires the drilling of holes or
other modications of the vehicle.
5. Install this car receiver in the dashboard.
6. Make wiring connections, as illustrated in the “Wiring Diagram.”
7. Install the plastic outer trim ring.
103 mm
182 mm
