Pyle pmx7bu User Manual

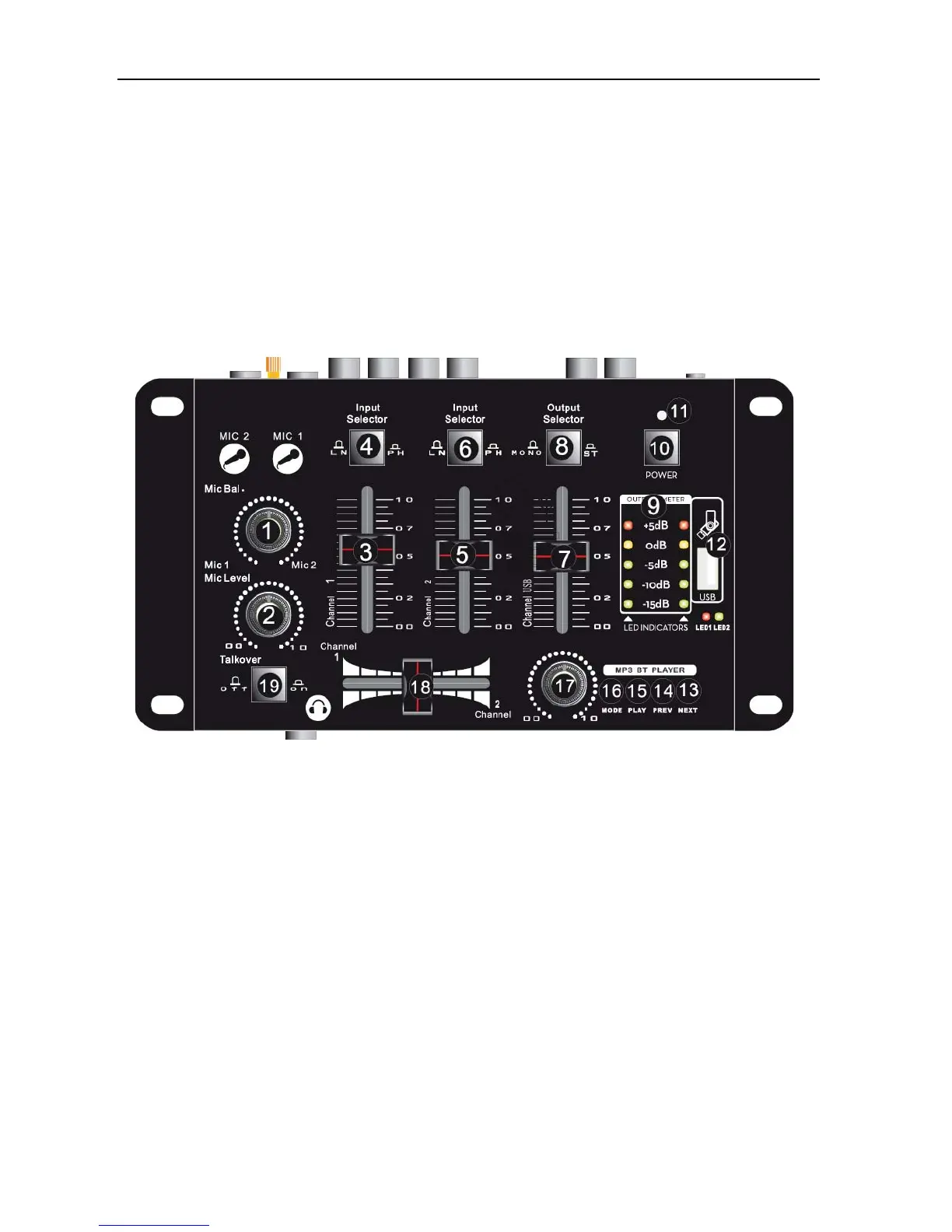

1. FRONT PANEL
1. The MIC Bal. control two MIC level balance or close one MIC input.
2. The MIC LEVEL control adjusts the volume of the microphone signal.
3. The CHANNEL 1 fader adjusts the final channel volume.
4. The PHONO/LINE switch selects one of the input pairs on the respective channel. The “PHONO”
setting (and inputs) is intended for turntables; for all other signal sources, i.e. a CD or MD player,
use the “LINE” setting and inputs.
5. The CHANNEL 2 fader adjusts the final channel volume.
6. The PHONO/LINE switchDŽ
7. The CHANNEL USB fader adjusts the final channel volume.
8. The MONO/Stereo output switch.
9. Output Meter: Indicate the levels of Left and Right Master channels.
10. The POWER ON switch turns on the MP3 MIXER
11. Power supply LED.
12. USB port.
