Pyle pmx7bu - Rear and Side Panel Connections; Rear Panel Audio and Power Connections; Side Panel Power Adapter

13. Next.
14. Previous
15. Play and Pause.
16. To choose play USB or bluetooth source
17. The LEVEL control determines the volume of the headphones signal.
18. The CROSSFADER is used to fade between channels1 and 2.
19. MIC TALKOVER Allows you to lower the level of the input sources so you can talk them using the
DJ MIC

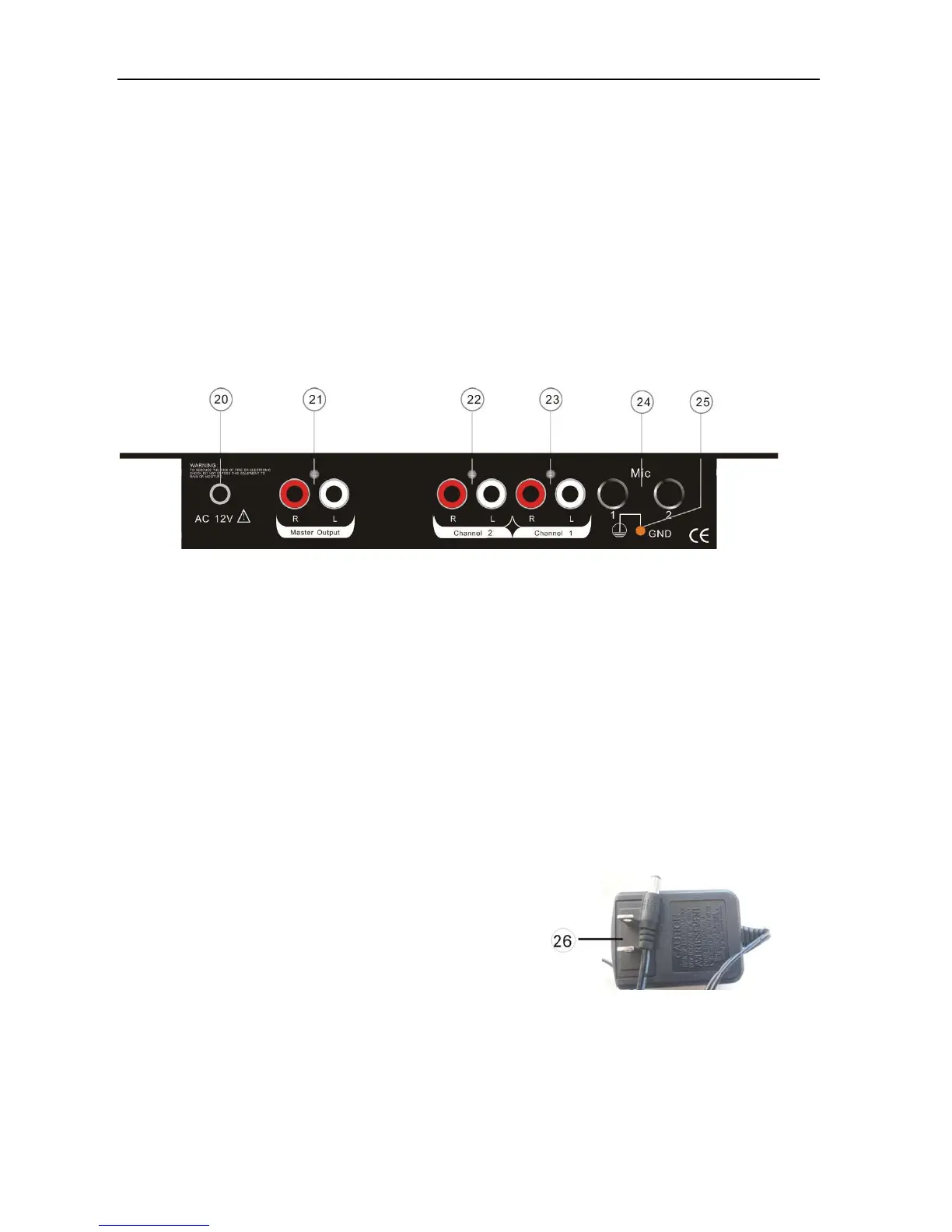

2. REAR PANEL
With the exception of HEADPONES, all of the unit’s audio connections are located on the rear panel
and supplied as RCA connectors.
20. Power supply: Only use
the power adapter provided with the unit to power the unit. When
connecting and disconnecting the power cord, be sure the power of the unit is off. Connect the
cord to the rear of the unit and then connect it to the outlet.
21. Use the AMP output to connect the unit to an amplifier.
22. The PHONO inputs for channel 2 and are only for turntable connection. The LINE inputs may be
used for connecting tape decks, CD or MD players etc.
23. The PHONO inputs for channel 1 and are only for turntable connection. The LINE inputs may be
used for connecting tape decks, CD or MD players etc.
24. The MIC1 MIC2 INPUT connector is a balanced 1/4” TRS socket for microphone connection.
25. The GND connection allows grounding of a turntable.
26. Power Adapter
3. SIDE PANEL
